To protect the screen's display: Use one of the screen-saver options available from
the More > Settings > Screen Saver page.
7
(WiFi only) Connect to a WAP on the Touch Screen (see Figure 10):
a.
After initialization, press and
hold the large red 4 on the
center of the Touch Screen
to enter the configuration
screen.
Press the Network button on
b.
the Touch Screen configura-
tion page. The network con-
figuration screen displays.
c. Under Wireless, select
Enable. If you don't see the
network you want, select
Other.
d.
At Network Name, select to add the SSID or wireless network when the keyboard
appears. Select Done.
e. At Security, select None, WEP 64, WEP 128, or WPA. At Password, type the
password on the keyboard that appears. Press Done.
f.
Select Connect. Notice that the IP settings change. The IP address is set to
DHCP by default.
(Optional) If you need to set a static IP address instead, complete the following
steps:
•
On the Network page, press Static.
•
Select each box one at a time and type the address: IP Address, Subnet
Mask, Default Gateway, Preferred DNS, and Alternate DNS. When the
keyboard appears, type the address, and then press Done.
g.
Press OK to return to the Network page. You can now connect to a Control4
Director running on a Control4 device on the network.
h.
Press OK.
8
When your Touch Screen is physically installed and appears on the home network,
you can add and configure it to the Control4 System using the Composer Pro
software. See the Composer Pro User Guide for information about how to add and
identify the Touch Screen to the Control4 System.
Restore the Touch Screen to Factory Default
Press and hold the red 4 button in the top left corner of the screen upon start up, and
follow the instructions presented on the screen to initiate the factory restore process and
to reset the Touch Screen to the factory default settings.
Regulatory Compliance
FCC/Industry Canada
FCC ID: R33D2 (InfinityEdge 5" In-Wall Touch Screen); R33D3 (InfinityEdge 7" In-Wall
Touch Screen)/Canadian IC: 7848A-D2 (InfinityEdge 5" In-Wall Touch Screen); 7848A-D3
(InfinityEdge 7" In-Wall Touch Screen)
This device complies with Part 15 of the FCC Rules Sub-Part B and C and with
Canada ICES-003 and RSS-Gen. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Australia/New Zealand Compliance
•
AS/NZS CISPR 22:2006
IMPORTANT! Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.

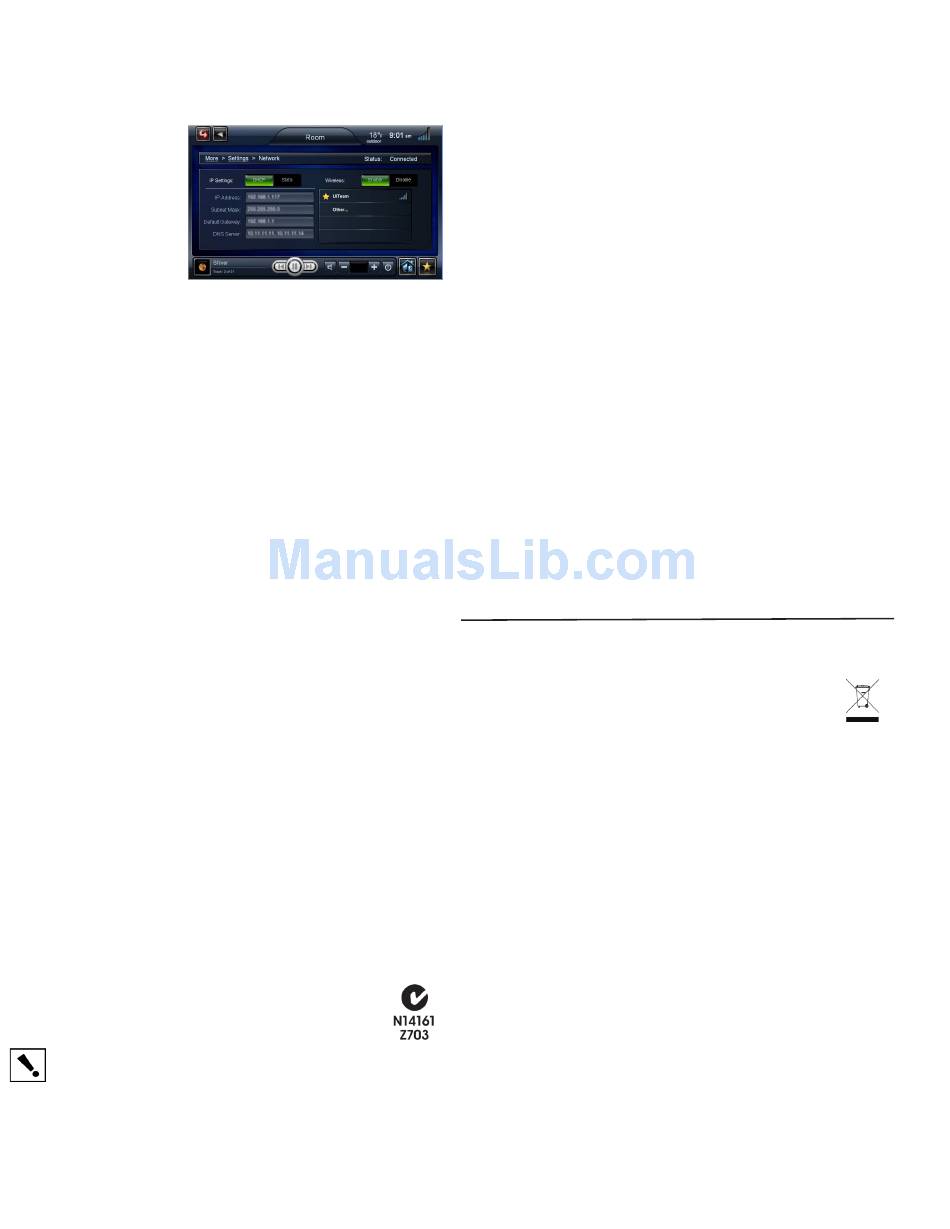

Figure 10. Wireless Configuration
