Front view

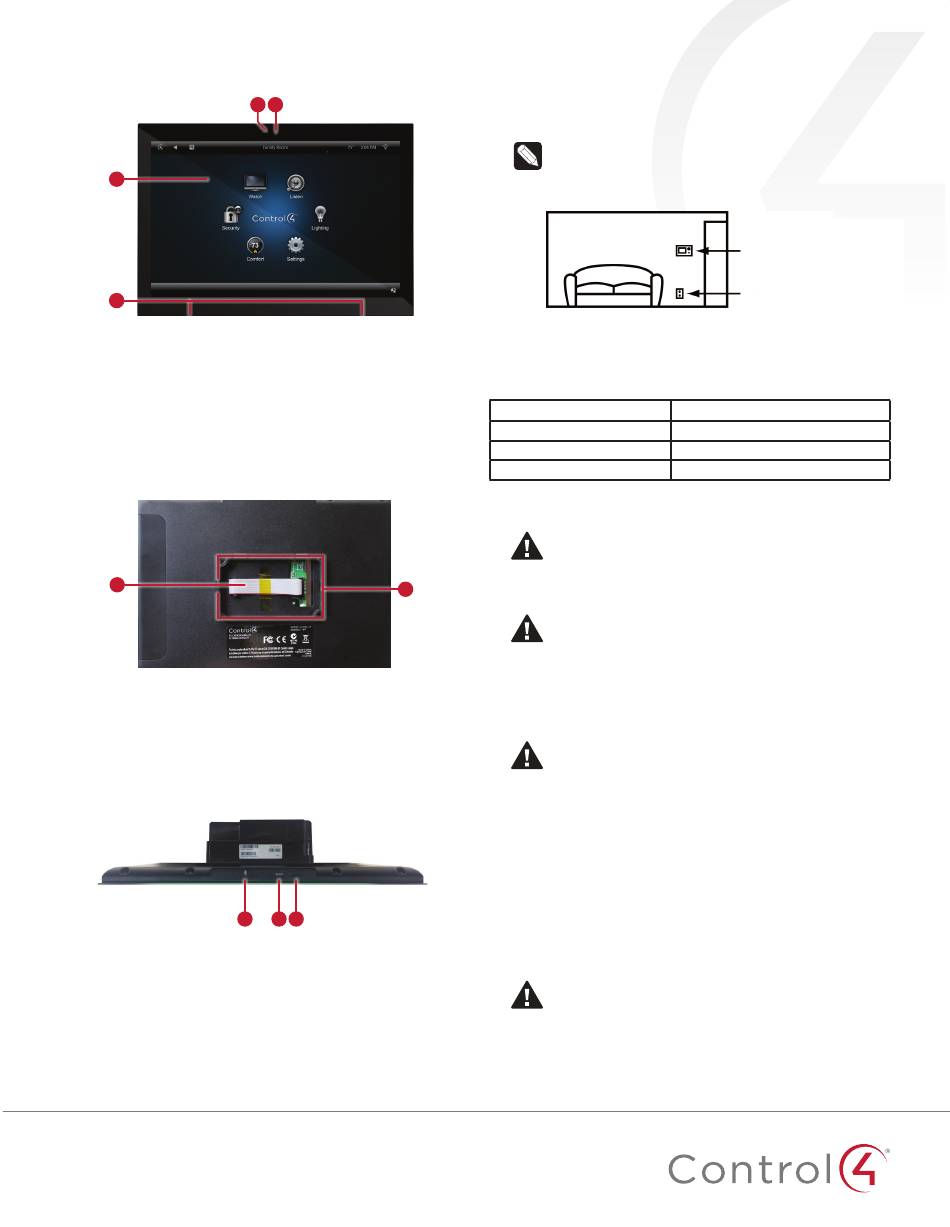

Figure 1: Front view
C
D
A LED—Indicates when the camera is on.
B Camera—For video intercom calls.
C Display—7" or 10" diagonal, capacitive touch screen with
1280 × 800 resolution.
D Speakers—Provide stereo audio.

Back view

Figure 2: Back view
A
A Ribbon cable-Provides data and power connection to the
touch screen from the power box.
B Mounting ring—Fits into the power box.

Top view

Figure 3: Top view (with power box attached)
A Microphone—Records audio.
B RESET—Press and hold a straightened paper clip into this hole
to reset the touch screen to factory defaults.
C Power button—Press to turn off the touch screen, or press and
hold to reboot.
3
A B
B
A B C
Touch screen placement
Place the touch screen in a convenient location at eye level,
typically near the entrance of the room, approximately 57 to 61
inches (145 cm to 155 cm) from the floor (Figure 3).
Note: Consider the camera on the panel and the height
of the people in the home who will use the camera for
Video Intercom.
Figure 3: Touch screen placement
LED indicator
The LED on the touch screen indicates the camera status of the
camera and booting information as described in the next table.
Camera/LED color state
Off
Green
Green (blinking slowly)

Installation

Warning! Before installing the touch screen, switch off
the circuit breaker or remove the fuse from the fuse box.
AVERTISSEMENT ! Pour l'endroit où vous installez
l'écran tactile, coupez le disjoncteur ou enlevez le fusible
de la boîte de fusible.
Important! Before you can complete the instructions
below, you must have a 7" or 10" Touch Screen back box
installed according to the documentation provided in
the back box kit. See "Accessories" for details.
Important ! En coupant l'ouverture pour la boîte de
mur, ne coupez pas l'ouverture trop grande. Soyez
conservateur et agrandissez-avec précaution la comme
nécessaire. Voyez que <<Accessories>>.
Important! When cutting the opening for the back box,
do not cut the opening too large. Be conservative and
cautiously enlarge it as needed.
Important ! En coupant l'ouverture pour la boîte de
mur, ne coupez pas l'ouverture trop grande. Soyez
conservateur et agrandissez-avec précaution la comme
nécessaire.
Power and network installation options
This device uses an Ethernet or WiFi network connection, and
can be powered using PoE or AC power.
Choose one of the following options to install the power and
network communication.
Caution! Do not attempt to use PoE and AC power at
the same time. Choose only one power option.
ATTENTION ! Ne pas tenter d'utiliser PoE et AC en
même temps. Choisir une seule option d'alimentation.
Touch screen
AC power
(unless using PoE)
Touch screen status
Camera is off
Camera is on
Touch screen is booting
