7" In-Wall Touch Screen V2
with Camera
Adapter Kit for
Mini Touch Screen
Installation Guide
Supported Touch Screen Models
• C4-TW7CO – 7" In-Wall Touch Screen V2 with
Camera, Black or White
Supported Adapter Kit Model
• C4-7V2TOMT, Black or White
General Description
This Control4® adapter kit provides a metal adapter
plate to accommodate the installation of a 7" In-Wall
Touch Screen V2 with Camera. The kit is intended for
an existing Mini Touch Screen to be replaced by a 7"
In-Wall Touch Screen V2 with Camera.
Requirements
• Tools to modify the back box, such as a tape
measure, a pencil, a screwdriver, a small saw to
cut heavy plastic, a utility knife, or a handheld
rotary cutting tool.
• A 5/16" nut driver or socket wrench, if using the
metal wall box.
What's in the Kit
• Adapter plate
• Two (2) screws for power box installation
• 7" In-Wall Touch Screen V2 with Camera Adapter
Kit for Mini Touch Screen Installation Guide (this
document)
Specifications
Adapter Kit for a Plastic Back Box Model:
• Plastic back box (installed previously)
• Adapter plate
Adapter Kit for a Metal Back Box Model:
™
• Metal back box (installed previously)
• Adapter plate
Prepare for Installation
Plastic Back Box Model
1
2
3
4
Back Box Divider Cutout
5
Metal Back Box Model:
1
Back Box
Divider
2
3
Remove the old Mini Touch Screen and leave the
back box in place in the wall.

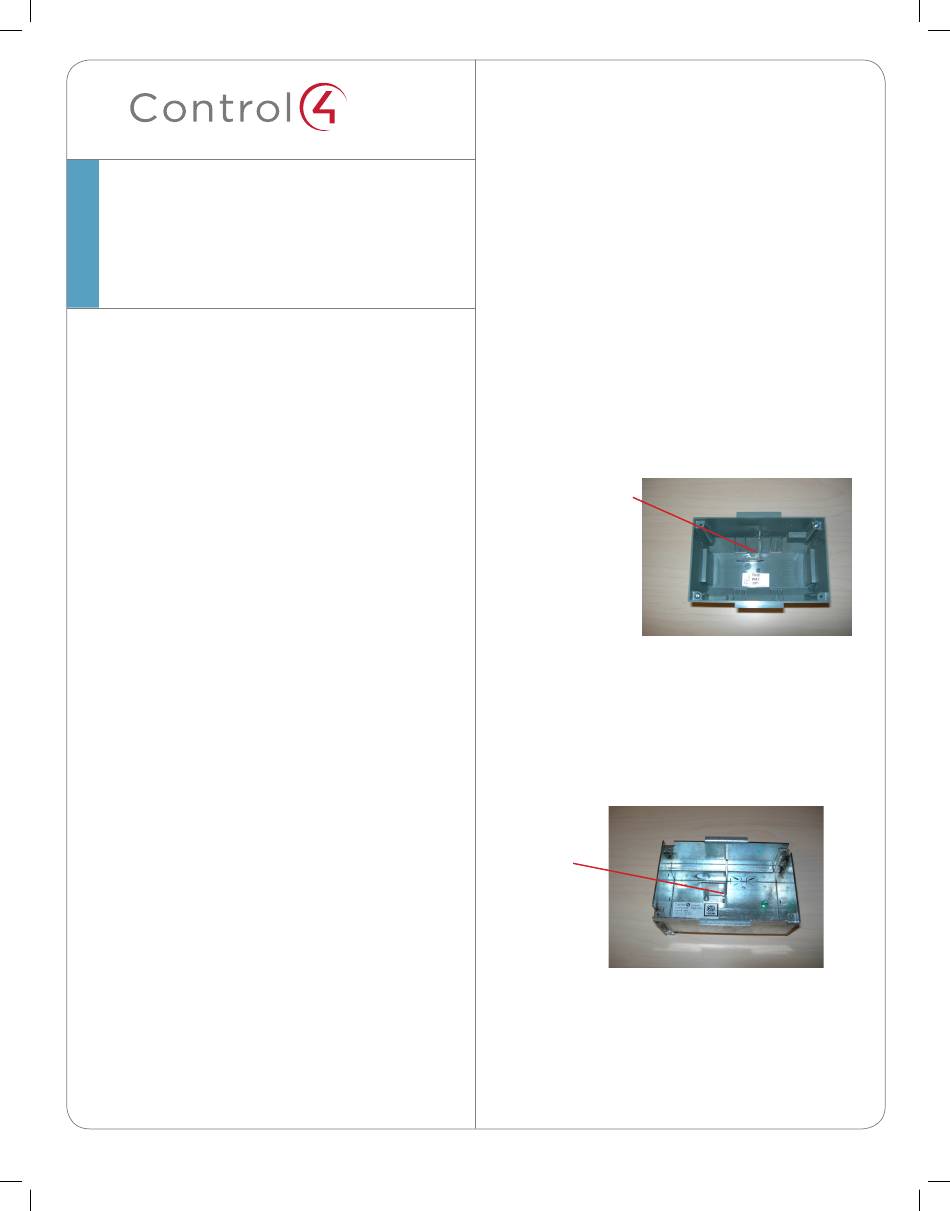

Note the angle-shaped back box divider inside
the box (see below). You'll need to cut a section
out of this back box divider. Using a heavy knife
or a handheld rotary cutting tool, measure and
mark 1 inch down from the front of the divider.
Cut vertically down so there's a 1-inch cutout in
the back box divider. You'll need this space for
the 7" In-Wall Touch Screen power box.
Remove the plastic piece you just cut out (see
photo next).
Go to the 'Installation' section next for more
instructions.
Remove the old Mini Touch Screen and leave
the back box in place in the wall (see example
below).
Using a screwdriver, remove the screw that holds
the back box divider in place.
Remove the back box divider. You'll need this
space to install the 7" In-Wall Touch Screen
power box. While you're at it, also remove the
Advertisement
Related Manuals for Control 4 C4-TW7CO
Summary of Contents for Control 4 C4-TW7CO
- Page 1 Plastic Back Box Model Adapter Kit for Remove the old Mini Touch Screen and leave the back box in place in the wall. Mini Touch Screen Note the angle-shaped back box divider inside Installation Guide the box (see below). You’ll need to cut a section out of this back box divider. Using a heavy knife Supported Touch Screen Models or a handheld rotary cutting tool, measure and mark 1 inch down from the front of the divider. Cut vertically down so there’s a 1-inch cutout in • C4-TW7CO – 7” In-Wall Touch Screen V2 with the back box divider. You’ll need this space for Camera, Black or White the 7” In-Wall Touch Screen power box. Supported Adapter Kit Model Remove the plastic piece you just cut out (see photo next). • C4-7V2TOMT, Black or White Back Box Divider Cutout General Description This Control4® adapter kit provides a metal adapter plate to accommodate the installation of a 7” In-Wall Touch Screen V2 with Camera. The kit is intended for an existing Mini Touch Screen to be replaced by a 7”...
- Page 2 attach the 7” In-Wall Touch Screen V2 to it. The ™ use of high or low voltage will depend on your installation requirements. Remove the two (2) sheet metal screws from the power box, and use the two (2) screws included 7” In-Wall Touch Screen V2 in the kit to attach the power box to the adapter with Camera plate. Insert the 7” In-Wall Touch Screen’s power box Adapter Kit for into the adapter plate’s hole and screw it in place Mini Touch Screen (see the next photo). Installation Guide grounding screw from the back box. You’ll need this screw to move the grounding wire to your new adapter plate. Note: Attach the ground wire to the back box in the location indicated by the Ground symbol. Insert Power Box here Go to the ‘Installation’ section next for more instructions. Attach the new 7” In-Wall Touch Screen. Installation Warranty Limited 2-year Warranty. Go to http://www.control4. Insert the grounding screw into the back of com/warranty for details. the adapter plate (metal model). Secure the grounding wire to the grounding screw. About This Document Place the metal adapter plate on top of the back box, and screw it onto the back box using the Part number: 200-00324, Rev. A 12/04/2012 two (2) screws that were used to hold the old...
