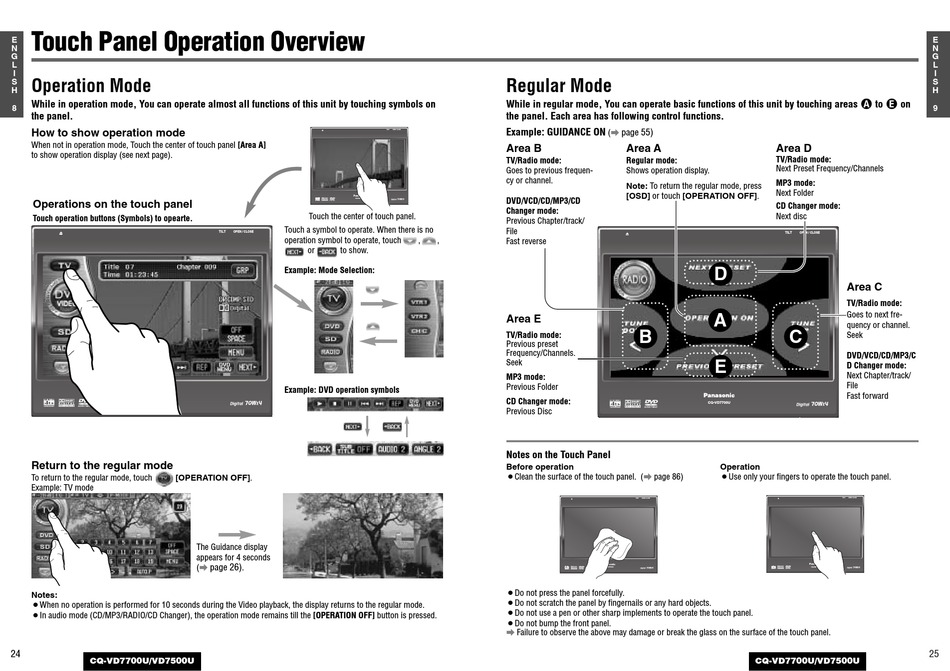

Touch Panel Operation Overview

E
N
G
L
I
S

Operation Mode

H
While in operation mode, You can operate almost all functions of this unit by touching symbols on
8
the panel.
How to show operation mode
When not in operation mode, Touch the center of touch panel [Area A]
to show operation display (see next page).
Operations on the touch panel
Touch operation buttons (Symbols) to opearte.
CQ-VD7700U
CQ-VD7700U
Return to the regular mode
To return to the regular mode, touch [OPERATION OFF].
Example: TV mode
Notes:
¡When no operation is performed for 10 seconds during the Video playback, the display returns to the regular mode.
¡In audio mode (CD/MP3/RADIO/CD Changer), the operation mode remains till the [OPERATION OFF] button is pressed.
24
CQ-VD7700U/VD7500U
CQ-VD7700U
CQ-VD7700U
Touch the center of touch panel.
Touch a symbol to operate. When there is no
TILT OPEN / CLOSE
operation symbol to operate, touch
or to show.
Example: Mode Selection:
Example: DVD operation symbols
OPEN / CLOSE
TILT
The Guidance display
appears for 4 seconds
page 26)
( a .

Regular Mode

While in regular mode, You can operate basic functions of this unit by touching areas
the panel. Each area has following control functions.
Example: GUIDANCE ON
TILT OPEN / CLOSE
Area B
TV/Radio mode:
Goes to previous frequen-
cy or channel.
OPEN / CLOSE
TILT DVD/VCD/CD/MP3/CD
Changer mode:
Previous Chapter/track/
File
, ,
Fast reverse
Area E
TV/Radio mode:
Previous preset
Frequency/Channels.
Seek
MP3 mode:
Previous Folder
CD Changer mode:
Previous Disc
Notes on the Touch Panel
Before operation
¡Clean the surface of the touch panel.
¡Do not press the panel forcefully.
¡Do not scratch the panel by fingernails or any hard objects.
¡Do not use a pen or other sharp implements to operate the touch panel.
¡Do not bump the front panel.
a Failure to observe the above may damage or break the glass on the surface of the touch panel.
page 55)
( a
Area A Area D
TV/Radio mode:
Regular mode:
Next Preset Frequency/Channels
Shows operation display.
MP3 mode:
Note: To return the regular mode, press
Next Folder
[OSD] or touch [OPERATION OFF].
CD Changer mode:
Next disc
D
A
B
E
CQ-VD7700U
CQ-VD7700U
Operation
(a page 86) ¡Use only your fingers to operate the touch panel.
TILT OPEN / CLOSE
OPEN / CLOSE
CQ-VD7700U TILT
CQ-VD7700U
CQ-VD7700U/VD7500U
E
N
G
L
I
S
H
to on
9
TILT OPEN / CLOSE
Area C
TV/Radio mode:
Goes to next fre-
quency or channel.
C
Seek
DVD/VCD/CD/MP3/C
D Changer mode:
Next Chapter/track/
File
Fast forward
OPEN / CLOSE
TILT
TILT OPEN / CLOSE
OPEN / CLOSE
TILT
CQ-VD7700U
CQ-VD7700U
25
