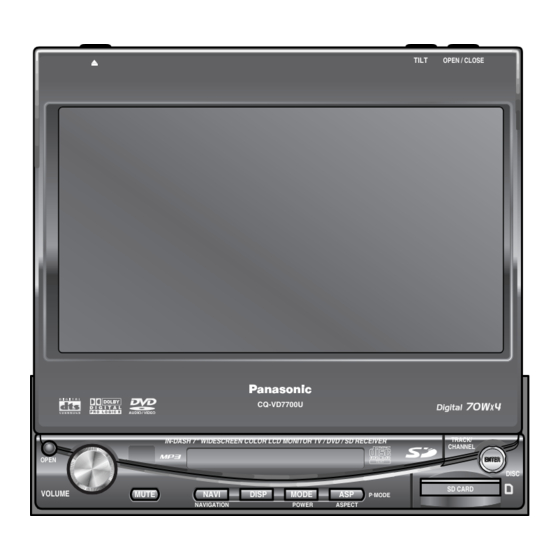

Panasonic CQ-VD7700U Installation Instructions Manual

In-dash 7” widescreen color lcd monitor tv/dvd/sd receiver
Hide thumbs Also See for CQ-VD7700U:
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Panasonic Consumer Electronics
Panasonic Sales Company.
Company, Division of Matsushita
Division of Matsushita Electric of
Electric Corporation of America
Puerto Rico, Inc. ("PSC")
One Panasonic Way, Secaucus,
Ave. 65 de Infanteria, Km. 9.5
New Jersey 07094
San Gabriel Industrial Park, Carolina,
http://www.panasonic.com
Puerto Rico 00985
http://www.panasonic.com
Panasonic Canada Inc.
5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
http://www.panasonic.ca
YEFM293264
NB0304-0
Printed in Japan
Imprimé au Japon
Impreso en Japón
In-Dash 7" Widescreen Color LCD Monitor TV/DVD/SD Receiver
Moniteur/télé couleur de tableau de bord à ÉCL de 7 po (grand-
TILT
OPEN / CLOSE
Reproductor de DVD con receptor SD y monitor LCD de TV en color
de pantalla ancha de 7 pulgadas para el tablero de instrumentos
OPEN / CLOSE
CQ-VD7700U
TILT
CQ-VD7700U
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER
TRACK/
CHANNEL
OPEN
ENTER
ENTER
DISC
NAVIGATION
SD CARD
VOLUME
MUTE
NAVI
DISP
MODE
ASP
P·MODE
PWR
NAVI
MODE
MENU
NAVIGATION
POWER
ASPECT
STOP
PAUSE
PLAY
CHAPTER
OSD
TOP MENU
RETURN
RET
DVD / SD MENU
RANDOM
REPEAT
RAND
REP
DISP
ST/ MONO
SUBTITLE
SCROLL
AUDIO
ANGLE
SUB
PAGE
CH1
CH2
TRACK
1
2
3
GRP
SCAN
TITLE / CHAPTER
4
5
6
VOL
VOL
7
8
9
ASPECT
A
0
SPACE
MUTE
P-MODE
CAR AV
TEXT
¡Please read these instructions carefully before using this product and keep this manual for future reference.
¡Prière de lire ces instructions attentivement avant d'utiliser le produit et garder ce manuel pour l'utilisation ultérieure.
¡Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
écran)/récepteur/lecteur DVD/SD
CQ-VD7700U

Installation Instructions

Instructions d'installation
Instrucciones de instalación
®
