Panasonic CQ-VD5005U Service Manual

In-dash 7” widescreen color lcd monitor/dvd receiver
Hide thumbs Also See for CQ-VD5005U:

Advertisement

TABLE OF CONTENTS

1 Service Navigation ----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Features ------------------------------------------------------------- 4
4 Technical Descriptions ----------------------------------------- 5
6 Block Diagram----------------------------------------------------12
7 Wiring Connection Diagram ---------------------------------15
8 Schematic Diagram ---------------------------------------------16
9 Printed Circuit Board-------------------------------------------21
AUTOMOTIVE AFTERMARKET
CQ-VD5005U
CQ-VD5005L
In-Dash 7" Widescreen Color LCD Moni-
tor/DVD Receiver
PAGE
© 2007 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
ORDER NO. ACED070201C7
C7
PAGE

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic CQ-VD5005U

  • Page 1: Table Of Contents

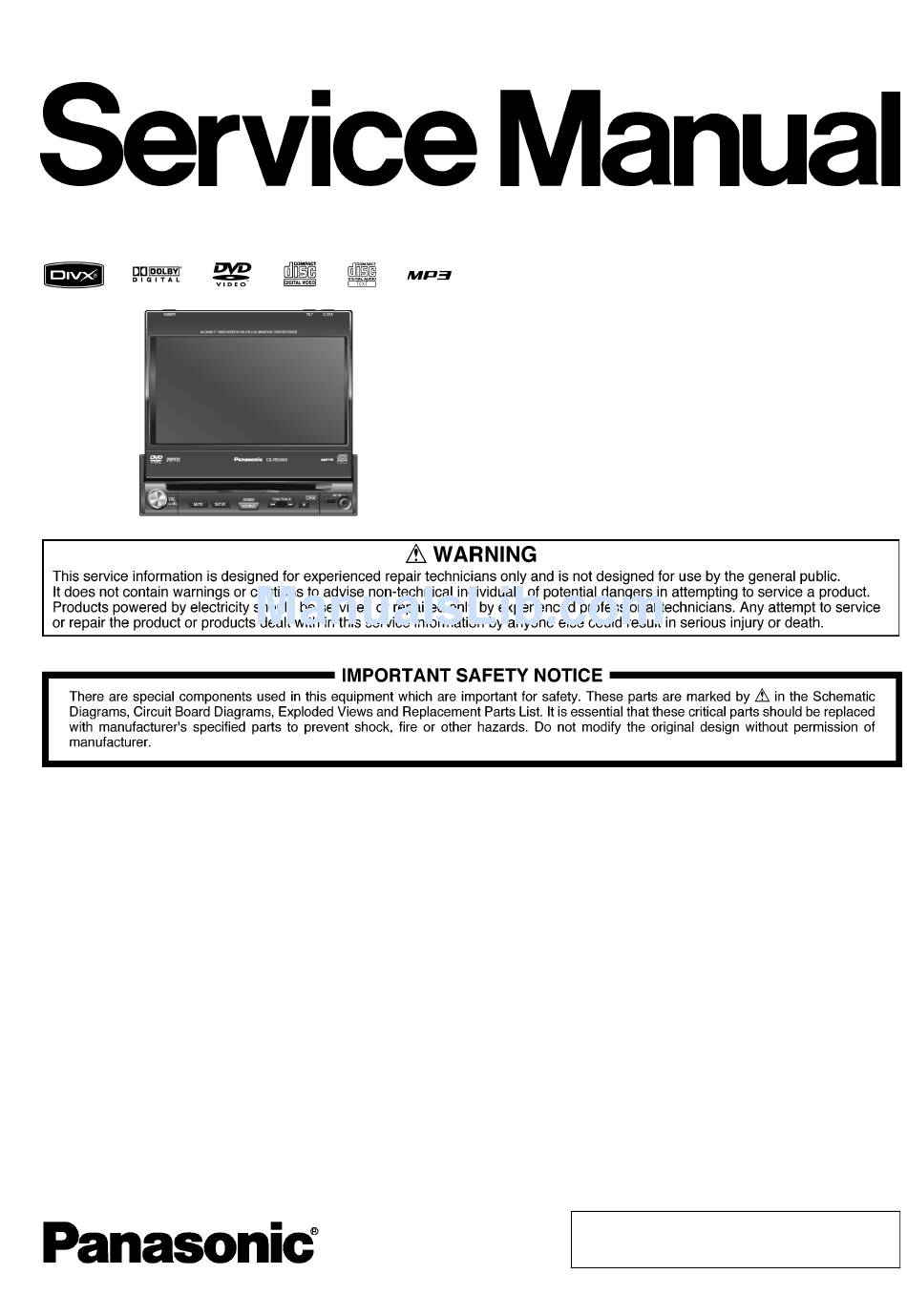

    ORDER NO. ACED070201C7 AUTOMOTIVE AFTERMARKET CQ-VD5005U CQ-VD5005L In-Dash 7” Widescreen Color LCD Moni- tor/DVD Receiver TABLE OF CONTENTS PAGE PAGE 1 Service Navigation ----------------------------------------------- 2 2 Specifications ----------------------------------------------------- 3 3 Features ------------------------------------------------------------- 4 4 Technical Descriptions ----------------------------------------- 5 5 Disassembly and Assembly Instructions ---------------10...
  • Page 2: Service Navigation

    1 Service Navigation 1.4. Maintenance Your product is designed and manufactured to ensure a mini- 1.1. About Lead Free Solder (PbF) mum of maintenance. Use a dry, a soft cloth for routine exterior cleaning. Never use benzine, thinner or other solvents. Distinction of PbF PCB : •...
  • Page 3: Specifications

    2 Specifications 2.2. Dimensions 2.1. Specifications* General Power Supply DC 12V (11V - 16V) Test Voltage 14.4V Negative Ground Current Consumption Less than 10A (during disc playback) Maximum Power Output 45 W x 4CH Power Output 18 W x 4CH 4 Ω...
  • Page 4: Features

    3 Features • Integration of the monitor, FM/AM radio, DVD Video/Video CD player and CD/MP3/DivX player. • Built-in AV Input/Output Terminals. • SQ3 (3-Band Sound Quality). • GUI (Graphic User Interface). • Disc type auto-detection. • Touch Panel Operation. • DVD-R, DVD-RW Playback. •...
  • Page 5: Technical Descriptions

    4 Technical Descriptions Port Description Vol (V) FM AM DVD 39 PLL_CE Chip enable output 4.1. Terminals Description PLL_IC communication 40 PLL_SI Cereal data input for PLL_IC 3.3 3.3 3.3 4.1.1. Main Block communication 41 PLL_SO Cereal data output IC601 : : : : UPD70F32XXXB PLL_IC communication Port Description...
  • Page 6 Port Description Vol (V) FM AM DVD 85 FRAM_WP Not connected 86 FRAM_DI F_RAM cereal data input 3.3 3.3 3.3 87 Tilt_LED Tilt button LED 3.3 3.3 3.3 88 MA Mechanism control terminal 3.3 3.3 3.3 89 MB Mechanism control terminal 3.3 3.3 3.3 90 MC Mechanism control terminal...
  • Page 7 4.2. IC Block Diagram 4.2.1. Main Block IC382 : C1AB00000084 IC51 : C1BB00001045 IC604 : C0JBAC000390 IC201 : C1EA00000041 IC701 : C0DAZHF00004 IC202 : C1BB00001132 IC702 : C0DBAZC00010 IC381 : C1AB00000163...
  • Page 8 4.2.2. TFT Block IC703 : C0CBABC00160 IC451 : C0DBAZA00017 IC704 : C0EBZ0000035 IC452 : C0FBBD000065 IC706 : C0DBCFG00003 IC710 : C0JBAZ000525...
  • Page 9 4.2.3. DVD Servo Block IC104 : YESAM370 IC105 : YESAM294 IC301 : YESAM405 IC107 : YESAM364...
  • Page 10: Disassembly And Assembly Instructions

    5 Disassembly and Assembly Instructions 5.1. How to Remove the Flexible PCB Disassembly of Display Unit Front Panel Monitor . Remove the two screws( ) from the Front Panel. 1. Pull out the Monitor to the arrow direction. Front Panel Monitor 2.
  • Page 11 5.2. How to Disassemble & assemble How to disassemble Remove the screws from the 3 Take off the metal that fixes the First take off the monitor block Remove the screws from the spots as shown above labled with connecter and remove the screws and must be as shown above.
  • Page 12: Block Diagram

    Q719,720 2.5V 2.5V IC710 19–22 9 VCC Q706–708 PULSE PULSE IC703 SYS3.3V ON/OFF 2 RT POSI SENSOR DRIVE VDD5V VDD3.3V DVD8V 6–9 POSI SENSOR 15 SVP CN708 Q710–712 VD OUT (2/2) DVD VD BATT SYS5V ON/OFF DRIVE BATT CQ-VD5005U/L MAIN(1/2)
  • Page 13 60 61 INV+B T451 IC381 VIDEO SYS3.3V SYS3.3V JK551 PDRA AVI INV NDRB IC802 R-CH NDRD DXD DV AVI L PDRC EEPROM TFT5V IC551 VDDA INV+B LIGHT IC382 REM DATA RECEIVE Q452 VIDEO SW CN160(2/2) CQ-VD5005U/L MAIN(2/2) / TFT/ SW...
  • Page 14 REQUEST REQUEST NRST Q202,205 IC106 CD LD+ RESET RESET Q201,206 DVD LD+ Q101 OPTICAL Q102 X101 N RESET PICK-UP Ass'y IC104,Q207 1.2V 1.2V U2.5V 3.3V S3.3V IMON Q203 Q212 CD VR Q211 SELECT DVD VR Q204 CQ-VD5005U/L DVD Servo Block...
  • Page 15: Wiring Connection Diagram

    7 Wiring Connection Diagram Battery Ground Camera Input (Yellow) Power (ACC) AV2-IN External Amplifier Control Power (Yellow) DVD Deck Side Brake (Parking Brake) Connection Remote Out (Black) Motor Antenna Relay Control CN202 Pre-Out Rear Reverse DVD Servo P.C.B [3036-14-01] (Top View) Front SP CN301 Pre-Out Front...
  • Page 16: Schematic Diagram

    8 Schematic Diagram 8.1. Main-1 Block...
  • Page 17 8.2. Main-2 Block...
  • Page 18 8.3. TFT Block CQ-VD5005U/L...
  • Page 19 8.4. SW Block CQ-VD5005U/L SW...
  • Page 20 The following symbols are Q212 YESAN138 shown on the schematic diagram. IC107 IC105 Q203 YESAM364 1.3V YESAM294 2.5V YESAN139 1.3V 2.5V 2.5V Q211 3.3V 3.3V YESAN138 Q204 TESAN147 3.3V 3.3V 3.3V AUDIO (L,R) 3.3V 3.3V 3.3V VISUAL CQ-VD5005U/L DVD DECK...
  • Page 21: Printed Circuit Board

    9 Printed Circuit Board 9.1. Main Block (Top View)
  • Page 22 9.2. Main Block (Bottom View)
  • Page 23 9.3. TFT Block (Top View)
  • Page 24 9.4. TFT Block (Bottom View)
  • Page 25 9.5. SW Block...
  • Page 26 9.6. DVD Servo Block (Top view)
  • Page 27 9.7. DVD Servo Block (Bottom View)
  • Page 28: Exploded View And Replacement Parts List

    Power Connector> (CN501) TFT P.C.B E-9939A To Main P.C.B E-3173Aa CN701 CN902 CN901 CN452 CN451 DVD Deck CN101 SW552 CN551 SW P.C.B E-9940A ANT51 IC201 PA51 CN701 <Installation Parts CN708 Trim Plate> CN160 CN256 CN707 CN252 IC701 Main P.C.B E-3173Aa CQ-VD5005U/L...
  • Page 29: Q151

    7. “A” or “B” marks in remarks column are indicated as fol- Q725 B1GBCFJN0009 Transistor lows : Q726 B1BDEL000002 Transistor Q727 B1GBCFJN0009 Transistor • A : CQ-VD5005U Q728 B1GBCFJN0009 Transistor • B : CQ-VD5005L Ref. No. Part No. Part Name & Description Remarks DIODE's...
  • Page 30 Ref. No. Part No. Part Name & Description Remarks Ref. No. Part No. Part Name & Description Remarks F1J1H103A513 Chip, 0.01µF 50WV C381 F2G0J101A166 Electrolytic, 100µF 6.3WV F1H1H102A842 Chip, 1000PF 50WV C382 F2G0J220A167 Electrolytic, 22µF 6.3WV F2G1A101A145 Electrolytic, 100µF 10WV C383 F2G0J101A166 Electrolytic, 100µF 6.3WV...
  • Page 31 Ref. No. Part No. Part Name & Description Remarks Ref. No. Part No. Part Name & Description Remarks C758 F1J1C104A148 Chip, 0.1µF 16WV R206 D0GBR00JA008 Chip, 0Ω 1/10W C759 F1J1C104A148 Chip, 0.1µF 16WV R208 D0GB103JA008 Chip, 10kΩ 1/10W C760 F2G0J101A166 Electrolytic, 100µF 6.3WV R209 D0GB912JA008...
  • Page 32 Ref. No. Part No. Part Name & Description Remarks Ref. No. Part No. Part Name & Description Remarks R607 D0GBR00JA008 Chip, 0Ω 1/10W R703 D0GF332JA017 Chip, 3.3kΩ 1/8W R608 D0GB472JA008 Chip, 4.7kΩ 1/10W R704 D0GB823JA008 Chip, 82kΩ 1/10W R609 D0GB472JA008 Chip, 4.7kΩ...
  • Page 33: Ic901

    Ref. No. Part No. Part Name & Description Remarks Ref. No. Part No. Part Name & Description Remarks R796 D0GD222JA017 Chip, 2.2kΩ 1/8W IC802 C3EBCC000065 IC R797 D0GDR00JA017 Chip, 0Ω 1/8W IC901 C0ABBB000069 R798 D0GB103JA008 Chip, 10kΩ 1/10W Q401 B1GBNCEJ0001 Transistor R799 D0GDR00JA017 Chip, 0Ω...
  • Page 34 Ref. No. Part No. Part Name & Description Remarks Ref. No. Part No. Part Name & Description Remarks C437 F1H1H330A841 Chip, 33PF 50WV C842 F1H1H104A783 Ceramic, 0.1µF 50WV C438 F1H1H100A840 Chip, 10PF 50WV C843 F1K1C1060001 Ceramic, 10µF 16WV C439 F1H1H330A841 Chip, 33PF 50WV C844 F1H1H104A783...
  • Page 35 Ref. No. Part No. Part Name & Description Remarks Ref. No. Part No. Part Name & Description Remarks R461 D0GB563JA008 Chip, 56kΩ 1/10W R898 D0GB330JA008 Chip, 33Ω 1/10W R462 D0GB102JA008 Chip, 1kΩ 1/10W R905 D0GB273JA008 Chip, 27kΩ 1/10W R463 D0GB104JA008 Chip, 100kΩ...
  • Page 36: Sw557

    Ref. No. Part No. Part Name & Description Remarks Ref. No. Part No. Part Name & Description Remarks SW553 K0H1BA000445 Tact Switch CRYSTAL SW554 K0H1BA000445 Tact Switch X801 XVHEELNANF27 Crystal SW555 K0H1BA000445 Tact Switch SW556 K0H1BA000445 Tact Switch SW557 K0H1BA000445 Tact Switch SW558 K0H1BA000445...
  • Page 37 Ref. No. Part No. Part Name & Description Remarks FD044C008U DVD DECK A, T FD044C008L DVD DECK B, T DETACH5005W Removable Face Plate YFE074C075ZA VOL Knob (PUSH SEL) YFJ014C242ZA Decoration (L) YFJ014C243ZA Decoration (R) YFX994C142ZA Tape (L) YFX994C143ZA Tape (R) YFX014C104ZA Panel Light (VOL) YEFU022019...
  • Page 38 10.3. Exploded View (DVD Deck) DVD Servo P .C.B [3036-14-01] GFD044C008 When replacing any part in the dotted line, the whole deck mechanic ass'y must be replaced. (Reason: Tilting adjustments cannot be made after replacing.) * The same applies when putting back in its original position after removing.
  • Page 39 C150 YESCC629 Ceramic, 0.1µF 16WV lows : C151 YESCC629 Ceramic, 0.1µF 16WV C152 YESCC630 Ceramic, 0.033µF 16WV • A : CQ-VD5005U C153 YESCC629 Ceramic, 0.1µF 16WV • B : CQ-VD5005L C154 YESCC629 Ceramic, 0.1µF 16WV C155 YESCC629 Ceramic, 0.1µF 16WV...
  • Page 40 Ref. No. Part No. Part Name & Description Remarks Ref. No. Part No. Part Name & Description Remarks C203 YESCC629 Ceramic, 0.1µF 16WV R133 YESRG550 Chip, 4.7kΩ 1/16W C221 YESCC631 Ceramic, 0.047µF 16WV R136 YESRG561 Chip, 0Ω 1/16W C231 YESCC556 Ceramic, 0.33µF 16WV R144 ERJ3GEY0R00V Chip, 0Ω...
  • Page 41 Ref. No. Part No. Part Name & Description Remarks Ref. No. Part No. Part Name & Description Remarks R296 YESRG539 Chip, 10kΩ 1/16W L119 YESLQ062 Inductor R298 YESRG539 Chip, 10kΩ 1/16W L121 YESLQ062 Inductor R299 YESRG539 Chip, 10kΩ 1/16W L122 YESLQ025 Inductor R301...
  • Page 42 Ref. No. Part No. Part Name & Description Remarks YESFX005181 Roller Arm Spring YESFW01029 Roller Shaft Ass'y YESFX046201 Loading Roller YESFX046183 Arm Stop Ling YESFA01083 Chassis Ass'y YESFW01031 Sub Shaft Ass'y YESFX005188 Pick-up Adjust Spring YESFW01030 Pick-up Shaft YESFX005189 Pick-up Fix Spring YESFX005190 Pick-up Control Spring Plate YESFX005182...
  • Page 43: Packing Parts List

    10.5. Packing Parts List 12 13 14 15 16 17 Unit • Item numbers listed below should not order regular spare parts. (not available) Item No. Parts No. Part Name & Description Q'ty Remarks Inner Carton Not available Packing Pad (Left) Not available Packing Pad (Right) Not available...
  • Page 44: Schematic Diagram For Printing With Letter Size

    11 Schematic Diagram for Printing with Letter Size 11.1. Main-1 Block (Left Side)
  • Page 45 11.2. Main-1 Block (Right Side)
  • Page 46 11.3. Main-2 Block (Left Side)
  • Page 47 11.4. Main-2 Block (Right Side)
  • Page 48 11.5. TFT Block (Left Side)
  • Page 49 11.6. TFT Block (Right Side) CQ-VD5005U/L...
  • Page 50 11.7. SW Block (Left Side)
  • Page 51 11.8. SW Block (Right Side) CQ-VD5005U/L SW...
  • Page 52 11.9. DVD Servo Block (Left Side) 3036-14-01 IC301 YESAM405 3.3V 1.3V 2V / DIV, 1ms / DIV 2V / DIV, 1ms / DIV 3.3V 2V / DIV, 5ms / DIV 2V / DIV, 10us / DIV 20mV / DIV, 1ms / DIV Q201 YESAN144 2V / DIV, 1ms / DIV...
  • Page 53 3.3V S3.3V 3.3V 3.3V S3.3V S3.3V U2.5V IC106 1.3V YESAM407 U2.5V Q101 D104-D107 U2.5V YESAD157 YESAN140 2.5V U2.5V D104 D105 D106 D107 Q207 YESAN145 3.3V IC104 YESAM370 IC107 IC105 YESAM364 YESAM294 2.5V 3.3V 3.3V 3.3V 3.3V 3.3V CQ-VD5005U/L DVD DECK...
  • Page 54 Printed in Japan 2007.4 (K) (Recycled Paper)
