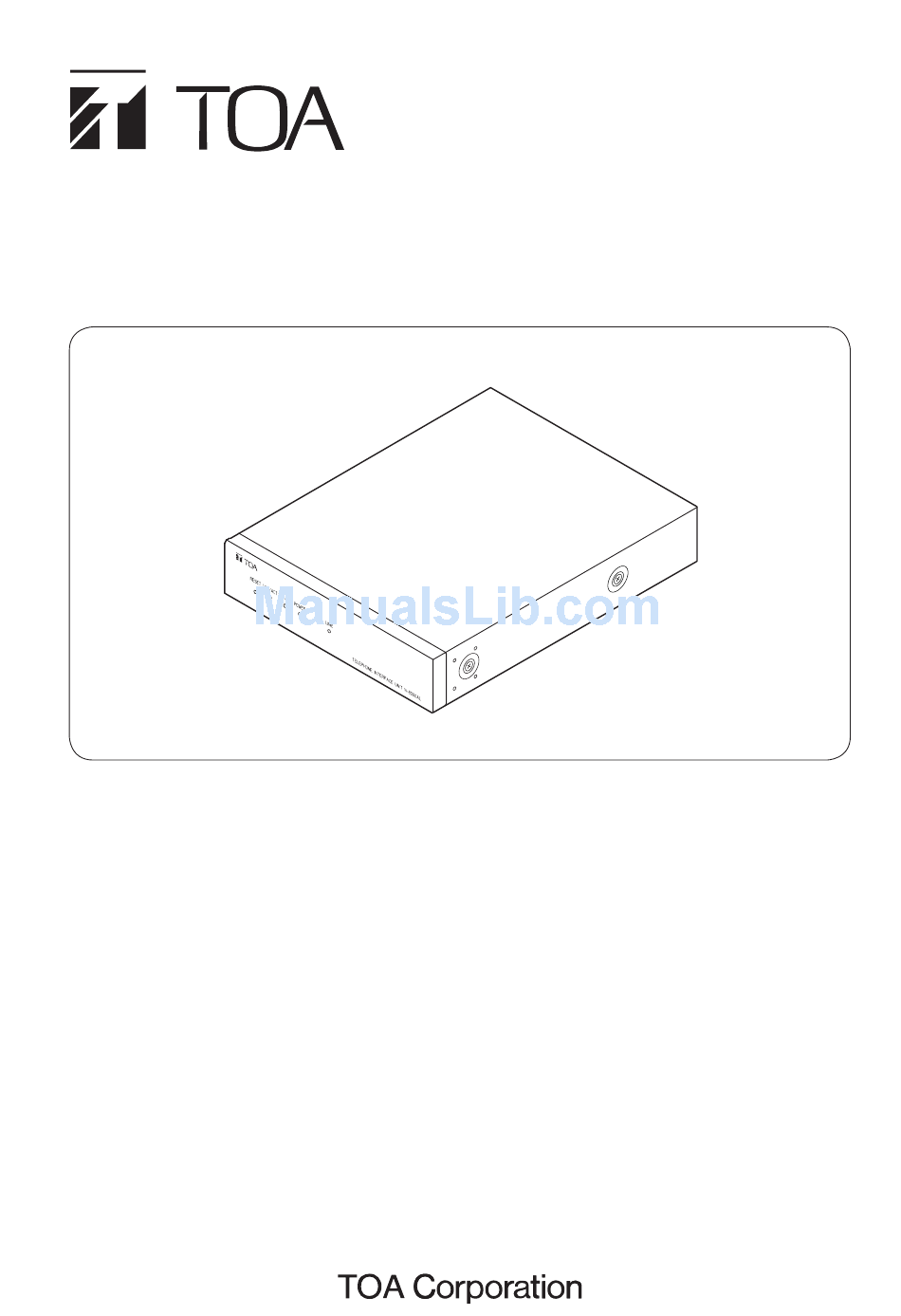

TeLephONe INTeRFACe UNIT

TABLe OF CONTeNTS

1. SAFeTY pReCAUTIONS ............................. 2
2. GeNeRAL DeSCRIpTION ........................... 4
3. FeATUReS ................................................... 5
Front .............................................................. 5
Rear ............................................................... 5
5. INSTALLATION ............................................ 6
5.1. Equipment Rack Mounting ...................... 6
5.1.1. Setting space ................................. 6
5.1.2. Mounting on the rack .................... 7
5.2. Desk-Top Installation .............................. 8
5.3. Wall Mounting ......................................... 8
Thank you for purchasing TOA's Telephone Interface Unit.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
INSTALLATION MANUAL
6. WIRING ....................................................... 10
6.1. Connection Diagram ............................. 10
6.2. Type of Cable ....................................... 11
6.3. Connector Connection ......................... 11
7. ACCeSSORIeS .......................................... 12
8. OpTIONAL pRODUCTS ............................ 12
N-8000AL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N-8000AL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa N-8000AL

Summary of Contents for Toa N-8000AL

  • Page 1: Table Of Contents

    5.1.2. Mounting on the rack ....7 5.2. Desk-Top Installation ......8 5.3. Wall Mounting ......... 8 Thank you for purchasing TOA’s Telephone Interface Unit. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Safety Precautions

    When the Unit is in Use • Be sure to follow the instructions below when rack- mounting the unit. Failure to do so may cause a fire • Should the following irregularity be found during or personal injury. use, immediately disconnect the power supply plug from the AC outlet and contact your nearest TOA · Install the equipment rack on a stable, hard floor. dealer. Make no further attempt to operate the unit Fix it with anchor bolts or take other arrangements in this condition as this may cause fire or electric to prevent it from falling down.
  • Page 3 · The supplied rack-mounting screws can be used injury and/or property damage. In addition, the for the TOA equipment rack only. Do not use them object itself may fall off and cause injury and/or for other racks.

  • Page 4: General Description

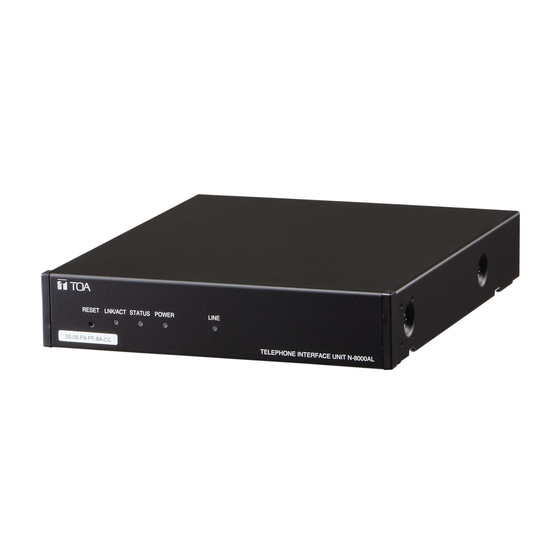

    CA, vérifier l’intensité maximale de l’appareil. · Les vis de montage en bâti fournies peuvent seulement être utilisées pour le bâti de l’équipement TOA. Ne pas les utiliser pour d’autres bâtis. 2. GeNeRAL DeSCRIpTION TOA's N-8000AL is Telephone interface unit used for the N-8000 Series Packet Intercom System (IP network compatible intercom) employing packet audio technology*. It has a single telephone line interface, allowing an analog telephone to be connected. Connecting the unit to the LAN permits the analog telephone to be operated in the same manner as the intercom master station.

  • Page 5: Features

    3. FeATUReS • Exchanges, IP stations and various kinds of interface units can be distributed over a data communications network. • Can be connected to an existing local area network (LAN) or wide-area network (WAN). • The dedicated software program enables centralized control with a personal computer. • System maintenance (verifying operation log and Line supervision) can also be performed with a personal computer and Internet browser. CARACTÉRISTIQUeS • Un réseau de communication de données permet la connexion de centraux, de stations IP et de différents types d’interfaces. • Peut être connecté à un réseau local (LAN) ou étendu (WAN) existant. • Logiciel dédié permettant un contrôle centralisé à partir d’un PC. • La maintenance du système (vérification du journal d’opérations et supervision des lignes) peut aussi intervenir via un ordinateur personnel et un navigateur Internet. 4. NOMeNCLATURe AND FUNCTIONS [Front] [Rear] 1 2 3 4 5 6...

  • Page 6: Installation

    5. INSTALLATION The N-8000AL can be installed in any of three ways: Equipment rack mounting, Desk-top installation, and Wall mounting. 5.1. equipment Rack Mounting A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer. B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised. C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading. D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring.

  • Page 7: Mounting On The Rack

    Component parts of MB-15B-BK Composants du MB-15B-BK Tapping screw 3 x 14 Vis-taraud 3 x 14 Tapping screw 3 x 8 Vis-taraud 3 x 8* N-8000AL Blank bracket Patte vierge Tapping screw 3 x 8 Vis-taraud 3 x 8 Rack mounting bracket Patte de montage...

  • Page 8: Desk-Top Installation

    Installation sur un bureau When installing the N-8000AL on a desk, secure the supplied plastic feet to the unit’s bottom using the supplied machine screws. Pour installer l’unité N-8000AL sur un bureau, installez les pieds en plastique fournis sur le fond de l’appareil à l’aide des vis fournies. Machine screw M3 x 8 (supplied with the N-8000AL) Vis de mécanique M3 x 8 (fournie avec l’unité N-8000AL) Plastic foot (supplied with the N-8000AL) Pied en plastique (fournie avec l’unité N-8000AL) N-8000AL 5.3.
  • Page 9 Step 2. Mount the N-8000AL on the wall. Notes • Use appropriate screws for the construction of wall. • Wood screws 3.5 x 20 are supplied with the YC-850. • T he socket-outlet shall be installed near the equipment and the plug (disconnecting device) shall be easily accessible. Étape 2. Montez l’unité N-8000AL au mur. Remarques • Utilisez des vis adaptées à la structure du mur. • L’unité YC-850 est livrée avec des vis à bois 3,5 x 20. • La prise doit être installée à proximité de l’équipement et la fiche (dispositif de déconnexion) doit être facilement accessible. Protect against disconnection (Power supply plug) Unlock cord clamp and run the power supply cord through it.

  • Page 10: Wiring

    6. WIRING 6.1. Connection Diagram N-8000AL Telephone interface unit Be sure to ground. RJ-45 connector To network To AC mains or a UPS (Uninterruptible power supply system)*. Mini-clamp connector 232D-02S1B-DA5 (DDK) Note (supplied with the N-8000AL) If there is a danger of lightning strikes, insert an appropriate surge arrester into the power line.

  • Page 11: Type Of Cable

    Step 1. Cut off two-cable ends in equal length, and insert them Cover (transparent side) securely to a cover section (transparent side) of the mini-clamp connector. Note Insert the cable without stripping the cable jacket. For cables, refer to "Type of Cable" above. Mini-clamp connector (supplied with the N-8000AL, Cable model 232D-02S1B-DA5 manufactured by DDK Ltd.) Step 2. With a pair of pliers, lightly pinch the mini-clamp cover and, after ensuring that the cable is securely inserted, firmly squeeze on the cover. Note Squeeze on the mini-clamp cover until it is correctly locked.

  • Page 12: Accessories

    Mini-clamp connector (2P) ........2 * C ontains the N-8000 setting software program and the N-8000 series instruction manual. The Setup Launcher is automatically started when the supplied CD-ROM is inserted into the PC's drive. Note If your PC's CD drive is not compatible with the AutoRun function, the setup guide is not automatically started even when the CD is inserted. Use either "Explorer" or "My Computer" to execute the following files, or use [Start Run] in the Task Bar and enter the following command. <Drive where CD is placed> \index.html For example, when placing the CD in the "d" drive, d:\index.html 8. OpTIONAL pRODUCTS Rack mounting bracket: MB-15B-BK (for rack mounting one N-8000AL unit) MB-15B-J (for rack mounting two N-8000AL units) Wall mounting bracket: YC-850 Version update information • Download our TOA Products Data, web site (http://www.toa-products.com/international/) to get the up-to-date version for N-8000 software, firmware, and Instruction manuals. • The software version number can be confirmed using the Help menu. • The current firmware version can be confirmed on the system management screen displayed when the browser establishes the connection to the Exchange. • The instruction manual version number can be confirmed by checking the preparation date (month and year) shown at the lower right corner of the last page. Example: Prepared in November 2004: 200411...
