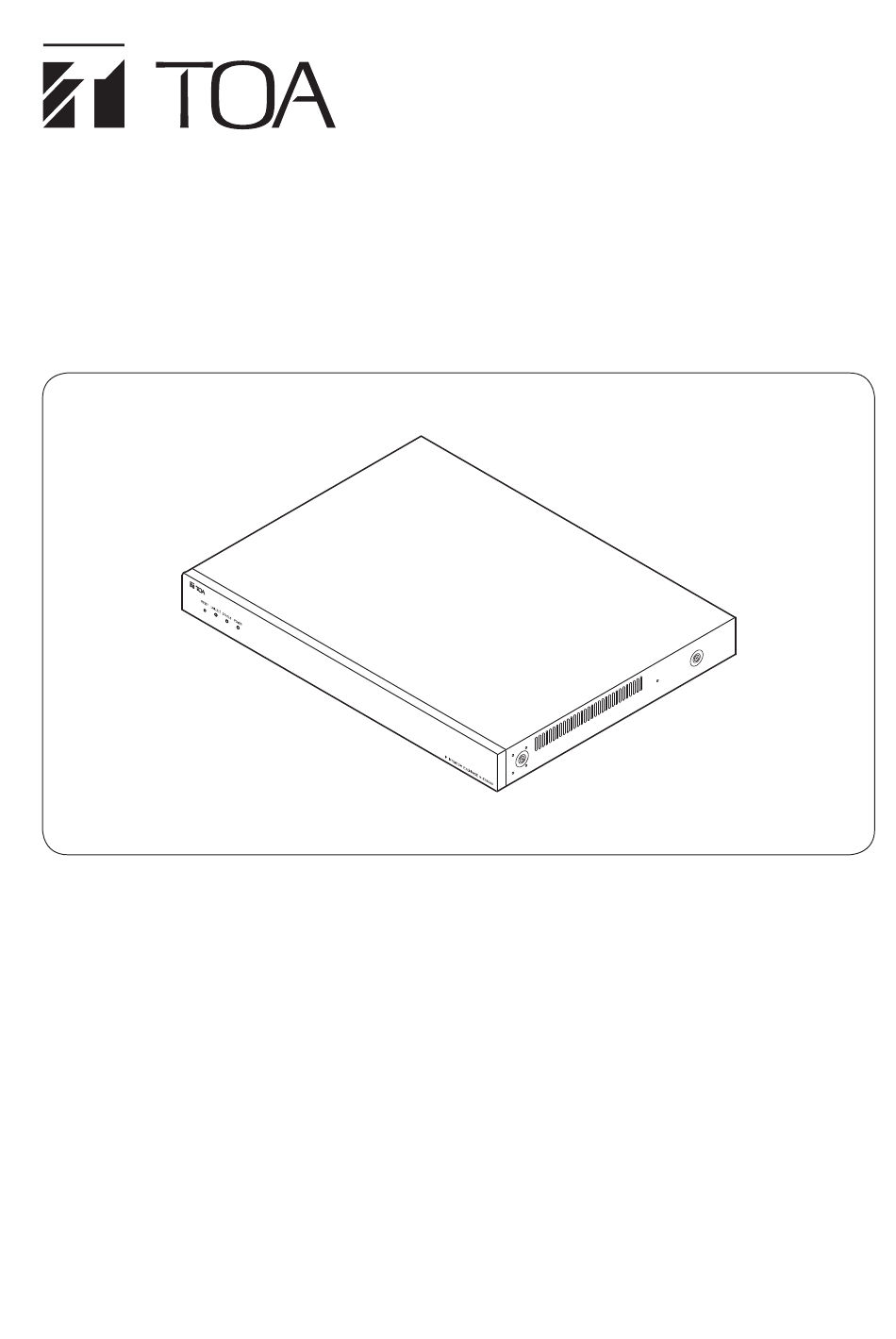

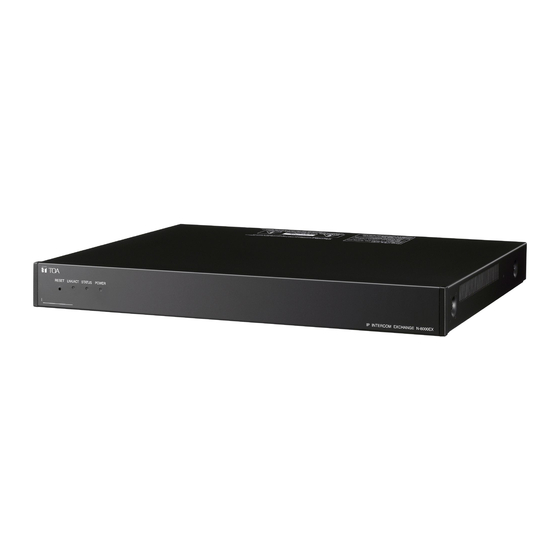

- Page 1 INSTALLATION MANUAL IP INTERCOM EXCHANGES N-8000EX N-8010EX Thank you for purchasing TOA's IP Intercom Exchanges. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
-
Page 2: Table Of Contents
8.3. Relations Between Core Diameter of Cable and Maximum Cable Length ..16 8.4. Connector Connection ..................17 8.4.1. Mini-clamp connector connection ............17 8.4.2. Removable terminal plug connection ............18 8.5. E-7000TB Terminal Board Wiring ............... 19 9. ACCESSORIES ....................20 9.1. N-8000EX ......................20 9.2. N-8010EX ......................20... -
Page 3: Safety Precautions
• Should the following irregularity be found during and result in fire. use, immediately disconnect the power supply plug from the AC outlet and contact your nearest TOA dealer. Make no further attempt to operate the unit in this condition as this may cause fire or electric... - Page 4 · To mount the unit on the TOA equipment rack, use the rack mounting hardware supplied with the unit. • Do not stand or sit on, nor hang down from the unit ·...
- Page 5 être utilisées pour le bâti de l’équipement • Ne pas insérer ni laisser tomber d’objets métalliques TOA. Ne pas les utiliser pour d’autres bâtis. ou de matériaux inflammables dans les évents de · Pour brancher le cordon d’alimentation à une prise ventilation du capot de l’appareil sous peine de...
-
Page 6: General Description
DESCRIPTION GÉNÉRALE Les unités N-8000EX et N-8010EX de TOA sont les centraux utilisés pour le système de paquet intercom des séries N-8000 (intercom compatible avec un réseau IP) utilisant une technologie de paquet audio* . -
Page 7: Features
• Both types of exchanges differ in the following points. N-8000EX: 4 pairs of internal call, 8 pairs of external call, with PA paging output N-8010EX: 1 pair of internal call, 2 pairs of external call, without PA paging output CARACTÉRISTIQUES... -
Page 8: Specifications
(Uninterruptible power supply feeder) N-8000MS N-8010MS N-8011MS N-8020MS RS-191 N-8031MS N-8050DS [Exchange] [Others] N-8000EX: IP Intercom Exchange YC-280: Wall mounting bracket for N-8010EX: IP Intercom Exchange the N-8000MS/8010MS/8020MS YC-290: Wall mounting bracket for [Stations] the N-8011MS YC-241: Back box for the N-8031MS... -
Page 9: Nomenclature And Functions
6. NOMENCLATURE AND FUNCTIONS [Front] 1 2 3 4 5 00-05-F9-FF-00-00 This figure represents the N-8000EX. 1. Reset key [RESET] 4. Power indicator [POWER] (Green) Pressing this key reactivates the exchange. Lights when power is supplied to the exchange. 2. LNK/ACT indicator [LNK/ACT] (Green) 5. -
Page 10: Installation
7. INSTALLATION The exchange can be installed in any of three ways: Equipment rack mounting, Desk-top installation, and Wall mounting. 7.1. Rack Mounting A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. -
Page 11: Caution When Installing The Unit
7.1.3. Mounting on the rack Montage en bâti N-8000EX/8010EX Rack mounting bracket (accessory) Patte de montage (accessoire) -
Page 12: Desk-Top Installation
Machine screw M4 x 20 (accessory) Vis de mécanique M4 x 20 (accessoire) N-8000EX/8010EX Plastic foot (accessory) Pied en plastique (accessoire) 7.3. Wall Mounting Montage mural Step 1. Install the supplied wall-mounting bracket to the Exchange using each 2 supplied screws and removed screws from the case. - Page 13 • Utilisez des vis adaptées à la structure du mur. • L’unité N-8000EX/8010EX est livrée avec des vis à bois 3,5 x 20. • La prise doit être installée à proximité de l’équipement et la fiche doit être facilement accessible.
-
Page 14: Wiring
8. WIRING 8.1. Connection Diagram N-8000EX/8010EX Exchange 16 lines Be sure to ground. Mini-clamp connector 232D-02S1B-DA5 (DDK) To AC mains or a UPS (accessory) (Uninterruptible power supply system)* Lines should be twisted Note If there is a danger of lightning strikes, insert an appropriate power gap arrester into the power line. - Page 15 About power supply cord handling No voltage make contact output The supplied power supply cord is designed for Withstand voltage: Max. 24 V DC exclusive use with the N-8000EX/8010EX. Control current: Max. 0.5 A Use the supplied power supply cord only with the Exchange.
-
Page 16: Type Of Cable
ø 0.4 – 0.8 mm (AWG20 – 26), Solid wire Outside diameter: ø 1.5 mm or below Removable terminal plug (N-8000EX Paging output) Conductor diameter: ø 0.5 – 2 mm (AWG12 – 24), Solid wire/Stranded wire 8.3. Relations Between Core Diameter of Cable and Maximum Cable Length Refer to the following table as guidelines when designing the distance between the Exchange and stations so that loop resistance value becomes 170 Ω... -
Page 17: Connector Connection
N-8010EX comes with mini-clamp connectors for line terminals. Perform each connector connection as follows. 8.4.1. Mini-clamp connector connection Connect the mini-clamp connector supplied with the N-8000EX to a cable using a commercially available tool (pliers). Cover (transparent side) Step 1. -
Page 18: Removable Terminal Plug Connection
• Tug lightly on the cable to be sure that it does not pull free. If the cable pulls free, loosen the terminal screw again and reconnect from Step 2. • Use the screwdriver appropriate to the screws tightened into the terminal plug. Step 4. Insert the wired terminal plug into the terminal block of the N-8000EX. N-8000EX rear panel Tighten... -
Page 19: E-7000Tb Terminal Board Wiring
8.5. E-7000TB Terminal Board Wiring For cable connection to the E-7000TB Terminal Board use the optional YC-105, clipping tool. Hook the end of the cable onto the terminal and, with the cable end in hand, press the YC-105 Dedicated Tool down onto the terminal from above. -
Page 20: Accessories
For example, when placing the CD in the "d" drive, d:\index.html Version update information • Download our TOA Products Data, web site (https://www.toa-products.com/international/) to get the up-to-date version for N-8000 software, firmware, and Instruction manuals. • The software version number can be confirmed using the Help menu.
