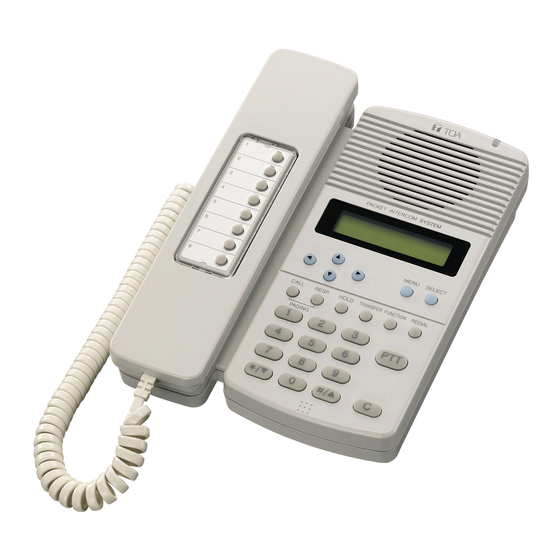

Toa N-8000MS Installation Manual
  1. Manuals
  2. Brands
  3. Toa Manuals
  4. Intercom System
  5. N-8000MS
  6. Installation manual

Toa N-8000MS Installation Manual

Multifunctional master station standard master station industrial-use master station
Hide thumbs Also See for N-8000MS:
1
2
3
4

Advertisement

Quick Links

Download this manual
MULTIFUNCTIONAL MASTER STATION
STANDARD MASTER STATION
INDUSTRIAL-USE MASTER STATION
These Master Stations are designed to connect to the IP Intercom Exchange, and provide hands-free conversation of high
sound quality.
Using an optional YC-280 Wall Mounting Bracket, these stations can be mounted on a wall, or tilted for easy key operation
when used on a desktop.
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures.
1. WALL MOUNTING
The station can be mounted on a wall using an optional YC-280 wall-mounting bracket.
The YC-280 can be installed to JIS standard one gang switch box.
1.1. Mounting Example
Station
2
Note: The figure shows
the N-8000MS.
1.2. Installation Completion Drawing
[N-8000MS/8010MS]
148
YC-280
1.3. YC-280 Dimensional Drawing
Rubber foot mounting position
(desk-top application)
2-ø4.5
4.5 x 10
YC-280 Wall mounting
bracket (optional)
Wall
surface
1
Hook
Wooden screw 3.5 x 20
(supplied with the YC-280)
Unit: mm
YC-280
72.1
83.5
Unit: mm
4.6 x 6
60
80
100
Step 1. Install the YC-280 wall mounting bracket to the wall.
Notes
• Use the appropriate screws for the construction of wall.
• Wooden screws 3.5 x 20 are supplied with the YC-280.
• No fitting screws for switch box are supplied with.
Use commercially available screws.
Step 2. Hang the station on the wall mounting bracket hook to
install.
Push down the station main body in the direction
indicated by the arrow.
[N-8020MS]
170
YC-280
INSTALLATION MANUAL
N-8000MS
N-8010MS
N-8020MS
Unit: mm
YC-280
76.2
106.5

Advertisement

loading
Need help?

Need help?

Do you have a question about the N-8000MS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa N-8000MS

Summary of Contents for Toa N-8000MS

  • Page 1 STANDARD MASTER STATION INDUSTRIAL-USE MASTER STATION These Master Stations are designed to connect to the IP Intercom Exchange, and provide hands-free conversation of high sound quality. Using an optional YC-280 Wall Mounting Bracket, these stations can be mounted on a wall, or tilted for easy key operation when used on a desktop.

  • Page 2: Wall Mounting

    When mounting the station on a wall, the orientation of the handset hook needs to be changed. 2.1. N-8000MS or N-8010MS Station Step 1. Raise the number directory cover forward tab. Step 2. Remove both the number directory cover and the directory.
  • Page 3 * The connection cable is supplied with the station (N- 8000MS/8010MS), while that of the N-8020MS directly attached to the unit. (2) External speaker terminals and control output terminals connections [N-8000MS] Both upper and lower These terminals are designed for exclusive connection with terminals (clip terminals) external speakers.
  • Page 4 4.2. The Type of Cables The types of cables are to be determined according to the following conditions. • Twisted pair wires (such as those used for electronic push- button telephone) are to be used for wiring between the Exchange and the stations in principle. •...
