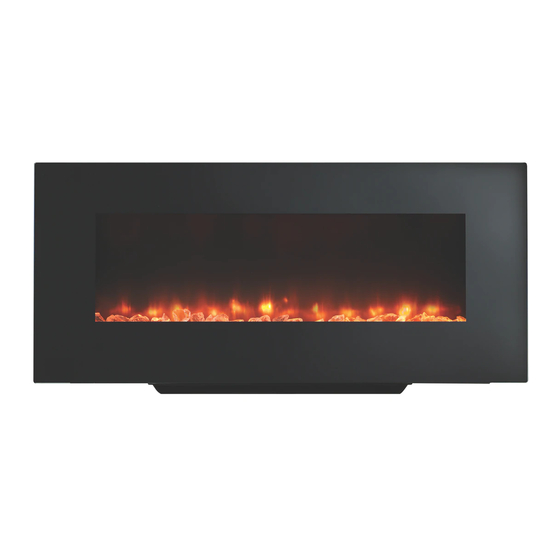

Congratulations!
Congratulations on selecting a SimpliFire Electric Fireplace, an elegant and clean alternative to wood & gas burning fireplaces.
The SimpliFire electric fireplace you have selected is designed to provide the utmost in safety, reliability, and efficiency.
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN
THIS PRODUCT.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE
TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
WARNING: To reduce risk of fire, electrical shock, or personal injury, read all instructions
before using appliance.
Please contact your SimpliFire dealer or customer/technical support
NOTICE
DO NOT DISCARD THIS MANUAL
• Read, understand and follow
these instructions for safe
installation and operation.
(877-320-0730) with any questions or concerns.
For the location of your nearest SimpliFire dealer,
please visit www.hearthnhome.com.
Printed in China - Copyright 2015
SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15
Owner's Manual
Installation and Operation
Wall Hanging Mode
• Leave this manual with
party responsible for use
and operation.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SimpliFire SF-WMS38-BK
Summary of Contents for SimpliFire SF-WMS38-BK
- Page 1 Congratulations! Congratulations on selecting a SimpliFire Electric Fireplace, an elegant and clean alternative to wood & gas burning fireplaces. The SimpliFire electric fireplace you have selected is designed to provide the utmost in safety, reliability, and efficiency. READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN THIS PRODUCT.
-
Page 2: Important Instructions
Return appliance to authorized service facility for examination, electrical or mechanical adjustment or repair. • Do not use outdoors. SAVE THESE INSTRUCTIONS SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15... -
Page 3: Table Of Contents
D. Service Parts List ....... 14 SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15... -
Page 4: Warranty
Fire fireplace within one year following the date of original purchase, that the SimpliFire fireplace will be free from defects in materials and workmanship at the time of manufacture. If a SimpliFire fireplace is found to be defective in materials or workmanship during the applicable warranty period, HHT will, at its option, repair or replace the SimpliFire fireplace. -
Page 5: General Information
We recommend that you record the following pertinent information about your fireplace. Model Name: ___________________________________________ Date purchased/installed: __________________ Serial Number: __________________________________________ Location on fireplace: _____________________ Dealership purchased from: _______________________________ Dealer Phone: __________________________ Notes: _______________________________________________________________________________________ _____________________________________________________________________________________________ SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15... -
Page 6: Getting Started
37-3/4 in 33-1/2 in (to LED’s) -1/2 in Front View 37-3/4 in 4-3/4 in. 4-3/4 in. Side View Back View Note: Side view dimensions include mounting bracket. Figure 3.1 Appliance Dimensions SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15... -
Page 7: Location
Note: One of the installation applications must be used. CEILING 36 in. min 13-3/4 in. min FLOOR Figure 3.2 Wall Mount Clearance to Combustibles SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15... -
Page 8: Installation
Mount Bracket with Tabs at the Top Note: Only four of the twelve holes are needed for mounting points. Figure 4.1 Mounting Bracket Figure 4.3 Bracket Attachment SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15... -
Page 9: Appliance Installation
25% of ultimate values or less, as required by building authorities. Mounting Hooks Point Up Figure 4.7 Attaching Fireplace to Bracket Figure 4.5 Toggle Bolt Installation through Mounting Bracket SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15... -
Page 10: Free Standing Assembly
Note: Extra media are provided and may be distributed based on consumer preference. Not all Mounting Brackets media need to be used. Side View Figure 4.11 Securing Bottom Glass to Firebox SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15... -
Page 11: Operating Instructions
Figure 5.1. - Press third time turns heater off. Note: A harmless slight brief odor may occur during first use or after prolonged period of storage. Figure 5.1 Manual Operating Switches SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15... -
Page 12: Operating By Remote Control
.5 hour up to 9 hours in 1 hour by mode time will increments. display but cannot be adjusted. Pressing the Light button changes the glass fascia LIGHT No indicator. backlight colors (14 colors available), and turns it on/off. SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15... -
Page 13: Maintenance
WARNING! Risk of Electrical Shock! Any other servic- ing needed must be performed by an authorized service representative. Do not attempt to service the unit your- self. SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15... -
Page 14: Service Parts List
Black Glass Hardware Bag HRDW-38WM Hanging Bracket BRACKET-WM38 38” Crystal Stone ROCKS-WM38 38” Base BASE-38WM Remote REMOTE-SF-ELEC Flame Rod, 38” ROD-WM38 Grey Screen, 38” GS-WM38 Motor, 38” MOT-WM38 2040-911 Installation Manual 1/16 SimpliFire • SF-WMS38-BK • 2040-911 Rev. E • 12/15...
