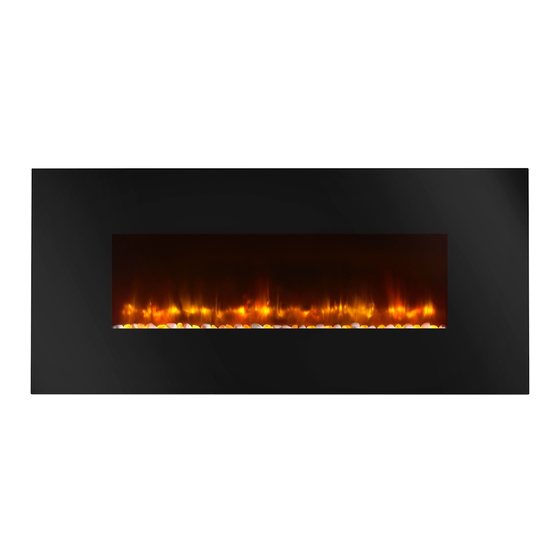

SF-WM58-WH
SF-WM58-BK
SF-WM70-BK
SF-WM94-BK
Congratulations!
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN
THIS PRODUCT.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE
TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
WARNING: To reduce risk of re, electrical shock, or personal injury, read all instructions
before using appliance.
NOTICE
DO NOT DISCARD THIS MANUAL
Printed in China - Copyright 2014
Owner's Manual
Installation and Operation
1
Advertisement
Related Manuals for SimpliFire SF-WM58-WH
Summary of Contents for SimpliFire SF-WM58-WH
- Page 1 Owner’s Manual Installation and Operation Model(s): SF-WM58-WH SF-WM58-BK SF-WM70-BK SF-WM94-BK NOTICE DO NOT DISCARD THIS MANUAL Congratulations! READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN THIS PRODUCT. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS WARNING! Risk of Fire! Risk of Burns! WARNING! DO NOT operate replace before reading and understanding operating instructions. Risk of Electrical Shock! DO NOT: WARNING! Improper installation, adjustment, al- teration, service or maintenance can cause injury or property damage. -
Page 3: Table Of Contents
Safety Alert Key: Table of Contents 1 IMPORTANT INSTRUCTIONS 2 GENERAL INFORMATION 3 GETTING STARTED 4 INSTALLATION 5 OPERATING INSTRUCTIONS 6 MAINTENANCE... - Page 4 B. Warranty SimpliFire™ WARRANTY WARRANTY COVERAGE: WARRANTY PERIOD: WARRANTY CONDITIONS: WARRANTY EXCLUSIONS: This warranty is void if: LIMITATIONS OF LIABILITY:...
-
Page 5: General Information
GENERAL INFORMATION A. Appliance Certi cation B. Unpacking and Inspecting Appliance WARNING! DO NOT use this Electric Fireplace if any MODELS: SF-WM58-WH, SF-WM58-BK, SF-WM70-BK, part has been under water. SF-WM94-BK LABORATORY: CSA International TYPE: Electric Air-Heaters Fixed and Location-Dedicated Electric Room Heaters STANDARD: UL 2021 (2 Edition) CSA C22.2 No 46-M1988... -
Page 6: Getting Started
GETTING STARTED A. Parts and Hardware B. Tools and Supplies Needed Parts and Hardware List C. Appliance Dimensions Note: Side View Front View... - Page 7 D. Location F. Electrical Supply Circuit Requirements E. Clearance to Combustibles Minimum Clearance to Combustible Construction ELECTRICAL OUTLET LOCATION WARNING! Risk of Fire!
-
Page 8: Installation
INSTALLATION WARNING! Risk of Personal Injury or Property Dam- SF-WM70 age! A. Wall Mounting Bracket SF-WM58 Note: four Note: Note: = Required Mounting Points Note: For non-masonry walls, at least four mounting Note: points (screws 5x40) must align with a structural framing member. - Page 9 SF-WM94 B. Installing Wall Mount Bracket Note: Framed Wall Note: = Required Mounting Points Note: For non-masonry walls, at least six mounting points (screws 5x40) must align with a structural framing member. Note: WARNING! Risk of Damage or Personal Injury!
- Page 10 Wall Masonry Anchors Wall Masonry Wall Masonry Anchors WARNING! Risk of Damage or Personal Injury! Do Mounting Hooks Point Up Wall Note: Masonry Anchors...
- Page 11 C. Appliance Installation Mounting Hooks Point Up Note: Mounting Hooks four Point Up Mounting Hooks Point Up Secure with screw on each side of appliance. Note: D. Faux Stone Installation Note:...
- Page 12 E. Glass Front Installation F. Electrical Connection WARNING! Risk of Fire, Electrical Shock and Injury! Note: Secure with Screw Here WARNING! Risk of Fire! WARNING! Risk of Fire, Electrical Shock and Injury!
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS Flame Button Heater Button WARNING! Risk of Fire, Electrical Shock, and Injury! A. Manual Switch Function Note: NOTE: Main Power Switch Note:... - Page 14 B. Operating by Remote Control C. Resetting Temperature Cutoff Switch ICON TITLE FUNCTION REMOTE LCD FIREPLACE RESPONSE DISPLAY...
-
Page 15: Maintenance
MAINTENANCE A. Maintenance B. Cleaning WARNING! Risk of Shock! Cleaning Glass Metal Surface C. Servicing WARNING! Risk of Fire! WARNING! Risk of Electrical Shock! - Page 16 SF-WM58-WH, SF-WM58-BK Service Parts D. Service Parts List Beginning Manufacturing Date: Mar 2013 58” Electric Fireplace Ending Manufacturing Date: Active #1 Black Glass #2 White Glass #3 Remote #4 Fan Box #6 Hanging Bracket #5 Power cord Stocked at Depot...
- Page 17 SF-WM70-BK Service Parts Beginning Manufacturing Date: Feb 2014 70” Electric Fireplace Ending Manufacturing Date: Active #1 Black Glass #2 Remote #3 Fan Box #4 Power cord #5 Hanging Bracket Stocked at Depot ITEM DESCRIPTION COMMENTS PART NUMBER...
- Page 18 SF-WM94-BK Service Parts Beginning Manufacturing Date: Feb 2014 94” Electric Fireplace Ending Manufacturing Date: Active #1 Black Glass #2 Remote #3 Fan Box #4 Power cord #5 Hanging Bracket Stocked at Depot ITEM DESCRIPTION COMMENTS PART NUMBER...
