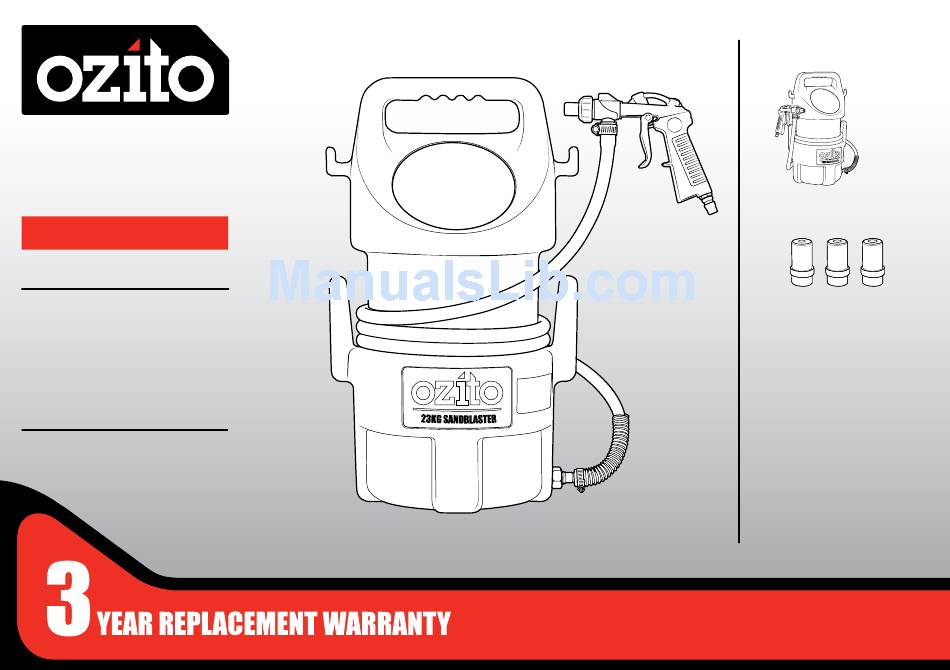

PORTABLE
SANDBLASTER
23KG Capacity
INSTRUCTION MANUAL
SPECIFICATIONS
Air Delivery
Requirements:
70-100 l/min
Air Consumption:
0.96cfm @ 50psi
Working Pressure:
50-120psi
Abrasive Capacity:
23kg
Delivery Hose:
2.5m
Air Inlet Connector:
1/4" Nitto Style
Weight:
2.0kg
ozito.com.au
WHAT'S IN THE BOX
Sandblaster
Ceramic Nozzles 4, 5,
6, & 7mm (1 fitted)
PSB-5090
Advertisement
Table of Contents
Related Manuals for Ozito PSB-5090
Summary of Contents for Ozito PSB-5090
- Page 1 INSTRUCTION MANUAL Ceramic Nozzles 4, 5, SPECIFICATIONS 6, & 7mm (1 fitted) Air Delivery Requirements: 70-100 l/min Air Consumption: 0.96cfm @ 50psi Working Pressure: 50-120psi Abrasive Capacity: 23kg Delivery Hose: 2.5m Air Inlet Connector: 1/4” Nitto Style Weight: 2.0kg ozito.com.au PSB-5090...
-
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION PORTABLE SANDBLASTER 1. AIR SUPPLY 1. Blast Gun Storage Hook 6. Hose Storage Hook 2. Media Filling Hole 7. Delivery Hose IMPORTANT!: BEFORE CONNECTING OR DISCONNECTING 3. Carry Handle 8. Bleeder Valve COMPRESSOR AIR HOSE, ALWAYS MAKE SURE THAT THE COMPRESSOR IS OFF. -
Page 3: Work Area
2. ABRASIVE MEDIA (Not Included) 3. WORK AREA Filling the Sandblaster Work Piece and Work Area Set Up Guide WARNING!: ONLY USE ABRASIVE MEDIA EXPRESSLY LABELLED FOR SANDBLASTING USE. 1. Pour in the abrasive media to be used. Ensure that the abrasive is dry and clean. -
Page 4: Operation
On. Follow supply. the compressors instruction manual for all safety, set-up and correct operation information. 5. Set the compressor’s pressure regulator to 50-120 PSI. Do not set the compressor’s outlet regulator over 120 PSI. PSB-5090... -
Page 5: Maintenance
Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Note: Ozito Industries will not be responsible for any damage or injuries caused Please recycle packaging where facilities exist. Check with your by the repair of the sandblaster by an unauthorised person or by mishandling local council authority for recycling advice. -
Page 6: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on Read all safety warnings and all instructions. Failure to follow the warnings and instructions the switch or energising power tools that have the switch on invites accidents. may result in electric shock, fire and/or serious injury. - Page 7 Tool: Portable Sandblaster SPARE PARTS Model No.: PSB-5090 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. How To Order Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any...
- Page 8 Model No. PSB-5090 Tool: Portable Sandblaster SPARE PARTS Model No.: PSB-5090 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. How To Order Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse.
-
Page 9: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0216...
