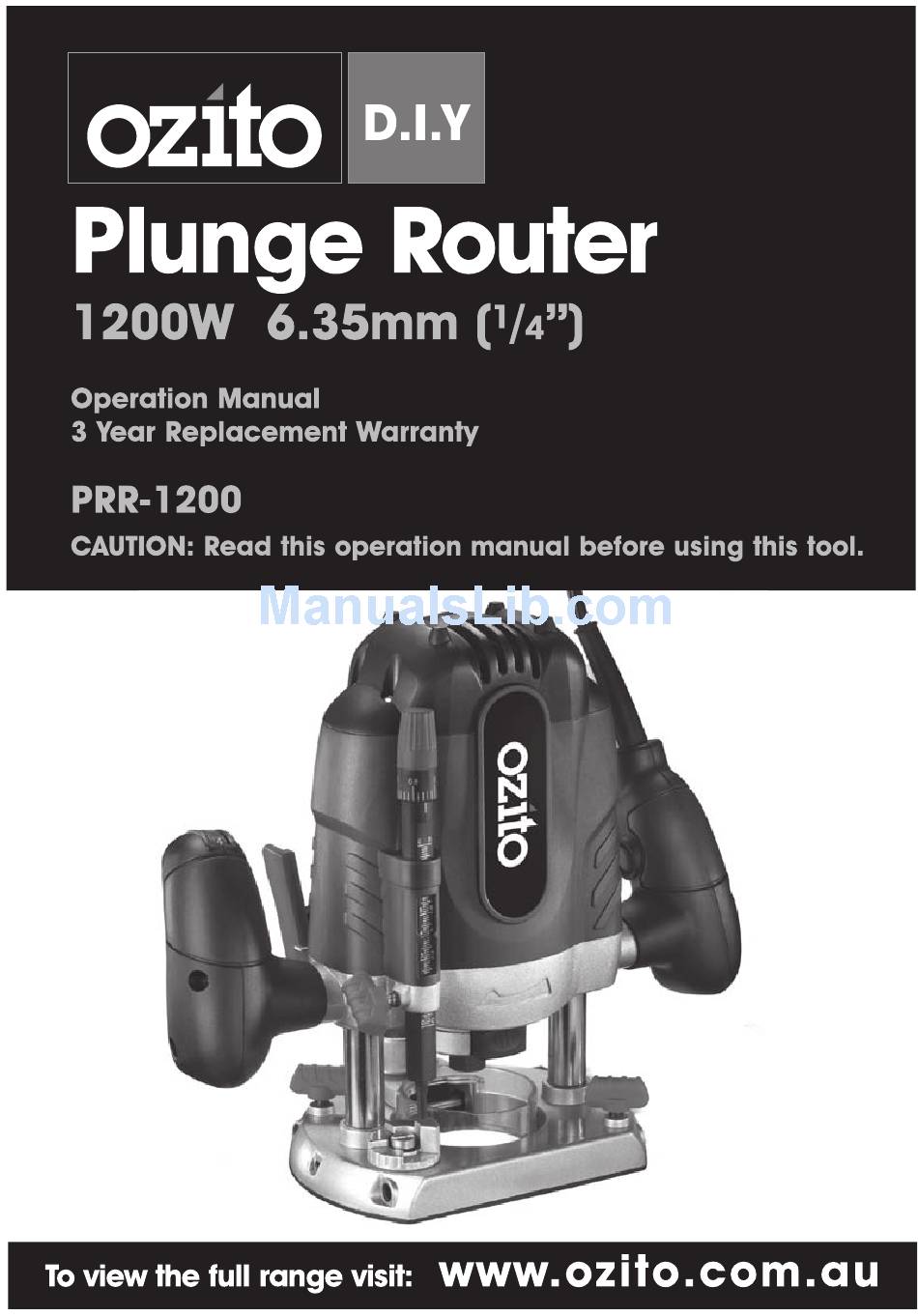

Summary of Contents for Ozito PRR-1200
-
Page 2: Specifications
SPECIFICATIONS MODEL NO. PRR-1200 Motor: 1200W Input: 230-240V ~ 50Hz No load speed: 10,000-28,000/min Collet Size: 6.35mm (1/4”) Plunge Depth: 40mm Weight (tool only): 3.75kgs Know Your Product Front Back 1. Soft Grip Handles 10. Template Guide 2. Variable Speed Dial 11. -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS…………………………………………. Page 2 TABLE OF CONTENTS…………………………………… Page 3 INTRODUCTION………………………………………….. Page 4 GENERAL SAFETY INSTRUCTIONS…………………….. Page 4 GENERAL SAFETY RULES……………………………….. Page 5 ADDITIONAL SAFETY INSTRUCTIONS FOR ROUTERS…… Page 7 ASSEMBLY.………………………………………………… Page 8 OPERATION………………………………………………… Page 11 MAINTENANCE…………………………………………… Page 15 TROUBLE SHOOTING……………………………………... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Rules
GENERAL SAFETY RULES Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 GENERAL SAFETY RULES (cont.) e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
-
Page 7: Additional Safety Instructions For Routers
ADDITIONAL SAFETY INSTRUCTIONS FOR ROUTERS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 8: Assembly
ASSEMBLY Assembly of the Parallel Guide Fence 1. Remove the two Phillips screws from the end of the guide fence rods (8) by rotating them anti- clockwise (Fig.A). Fig. A 2. Fix the two guide fence rods (8) onto the parallel guide fence (7) by inserting the Phillips screws through the holes in the guide fence (7) as shown in (Fig.B). - Page 9 ASSEMBLY (cont.) 2. Depress and hold the spindle lock button (14) to stop the spindle from turning. 3. Whilst holding the spindle lock button (14), loosen the collet nut (15) by rotating it clockwise using the spanner (11) provided. Fig. 2 4.
- Page 10 ASSEMBLY (cont.) Adjusting the Cutting Depth CAUTION: Always ensure that the router is switched off and unplugged from the mains supply before adjusting the cutting depth. 1. The router has an adjustable turret depth stop (16). This turret stop (16) enables the router to have 5 preset depth of cut...
-
Page 11: Operation
OPERATION Switching On and Off CAUTION: Before plugging in the router, always check that the on/off trigger switch engages and disengages properly. 1. Press the on/off trigger switch (4) to turn on the router (Fig.12). 2. To turn off the router, release the on/off trigger switch (4). 3. - Page 12 OPERATION (cont.) 2. Insert and secure your router bit. 3. Adjust the cutting depth as required for the application. 4. Ensure that the materials you are working on are fastened to the workbench or secured correctly. 5. Place the base plate on the work piece, ensuring that the bit is not in contact with the material to be cut.
- Page 13 OPERATION (cont.) 2. Feed the two bars on the parallel guide fence (7) through the holes in the router base, located on the right hand side of the router in the feed direction. This will assist in keeping the guide flush with the side of the work piece (Fig 16).
- Page 14 OPERATION (cont.) 4. Secure the template guide (10) using the two fixing screws that you just removed by rotating them clockwise (Fig.19). If you wish to make your own templates, it is best to use a hardwood such as plywood. Use a piece that is just thicker than the depth of the copy template guide (10).
-
Page 15: Maintenance
Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 16: Trouble Shooting
TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSE REMEDY Router will not operate. No supply of power. Check that power is available at source. Router runs slowly. Blunt or damaged Re-sharpen or replace router bits. router bits. Variable speed set low. Increase variable speed setting. -
Page 17: Description Of Symbols
DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts /min Revolutions or Double insulated reciprocation per minute ø Diameter No load speed Regulator compliance mark Warning Read instruction manual CARING FOR THE ENVIRONMENT Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. -
Page 18: Contents
CONTENTS 1 x Plunge Router (PRR-1200) 1 x Template Guide 1 x Collet 6.35mm (1/4”) 1 x Circular Template Guide 1 x Spanner 1 x Assembly Nuts & Screws 1 x Parallel Guide Fence 1 x Instruction Manual 1 x Dust Extraction Adaptor... -
Page 19: Warranty
PURCHASED FROM:_________________________________________________ DATE PURCHASED: _________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
