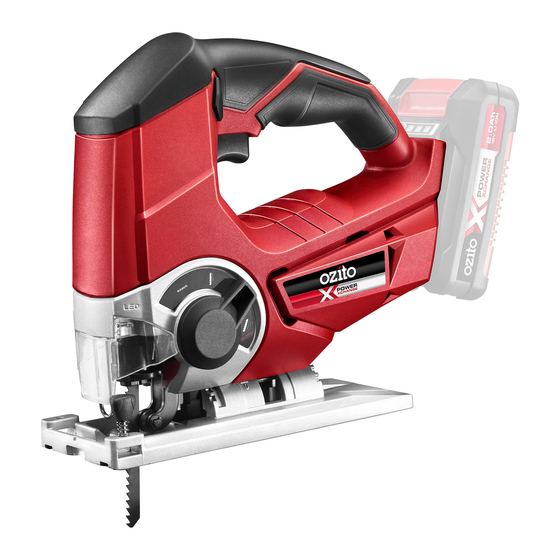

Pendulum jigsaw

Advertisement

Quick Links

PENDULUM
JIGSAW
ORIGINAL INSTRUCTIONS
SPECIFICATIONS
Voltage:
18V
No Load Speed:
0 - 2,400spm
Stroke Depth:
25.4mm
Bevel:
+/- 47°
Blade Fitment:
T-Shank
Cutting Capacities:
Timber 80mm
Mild Steel 10mm
Plastic 12mm
Weight:
1.6kg
ozito-diy.co.uk
All of our products undergo strict quality checks to ensure that they reach you in perfect
condition. In the unlikely event that your device develops a fault, please contact our service
department at the address shown on this guarantee card. You can also contact us by
telephone using the customer service number shown. Please note the following terms under
which guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which the manufacturer
mentioned below promises to buyers of its new products in addition to their statutory
guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or manufacturing faults on
a product which you have bought from the manufacturer mentioned below are limited to
either the rectification of said defects on the product or the replacement of the product,
whichever we prefer.
Please note that our devices are not designed for use in commercial, trade or professional
applications. A guarantee contract will not be created if the device has been used by
commercial, trade or industrial business or has been exposed to similar stresses during the
guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to
incorrect installation, a failure to follow the operating instructions (for example connecting
it to an incorrect mains voltage or current type) or a failure to follow the maintenance and
safety instructions or by exposing the device to abnormal environmental conditions or by
lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the
device or the use or unapproved tools or accessories), ingress of foreign bodies into the
device (such as sand, stones or dust, transport damage), the use of force or damage caused
by external forces (for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by
normal use of the device.
4. Your Product is guaranteed for a period of 60 months from the original date of purchase
and is intended for DIY (Do It Yourself) use only. Lithium Ion batteries and chargers are
OZITO UK
Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG
WARRANTY
covered by a 12 month warranty. Warranty excludes consumable parts, for example: cutting
blades. Guarantee claims should be submitted before the end of the guarantee period within
two weeks of the defect being noticed. No guarantee claims will be accepted after the end
of the guarantee period. The original guarantee period remains applicable to the device
even if repairs are carried out or parts are replaced. In such cases, the work performed or
parts fitted will not result in an extension of the guarantee period, and no new guarantee
will become active for the work performed or parts fitted. This also applies if an on-site
service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO
THE PLACE OF PURCHASE WITH YOUR REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts, consumables and
missing parts as set out in the service information in these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk
WHAT'S IN THE BOX
Jigsaw
Blade
Dust Extraction Adaptor
Splinter Guard
Parallel Guide
Line Guide
Battery & Charger
sold separately
PXJSS-600U
0416
