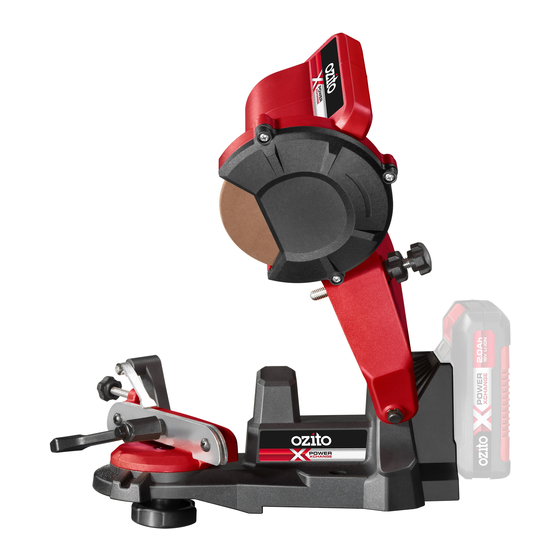

Cordless chainsaw sharpener

Advertisement

Quick Links

CORDLESS
CHAINSAW
SHARPENER
INSTRUCTION MANUAL

SPECIFICATIONS

Input:
18V
No load speed:
6,500/min
Table/vice angles:
0 – 35° left & right
Sharpening Wheel: Ø108 x 3.2mm
Bore:
Ø23mm
Suits chain pitch:
0.325" and 3/8"
Weight:
1.7kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.

WARRANTY

The benefits provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty Warranty excludes consumable parts, for example: Sharpening wheel
and included accessories.
WHAT'S IN THE BOX
Chainsaw Chain Sharpener
Sharpening Wheel (assembled)
Table & Lock Knob
Battery & Charger
sold separately
PXCCSSS-018
0516

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXCCSSS-018 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ozito PXCCSSS-018

  • Page 1 1.7kg Battery & Charger sold separately ozito.com.au PXCCSSS-018 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.
  • Page 2 KNOW YOUR PRODUCT SETUP & PREPARATION CHAINSAW CHAIN SHARPENER 1. ASSEMBLY 1. Lowering hand piece 11. Guide 2. Sharpening wheel cover 12 Depth stop platform 3. Direction of rotation indicator 13. Table locking knob CAUTION: ENSURE THAT THE TOOL IS OFF AND THE 4.
  • Page 3 2. SETTING OF THE SHARPENER Note: Prior to using the sharpener, several adjustments must be made in order to 4. If you do not know the angle of the chain, set the sharpen the teeth of the chain effectively. table angle to 35°. 1.
  • Page 4 Adjusting the depth of cut Adjusting the chain (tooth) stop 1. Ensure the chain is still locked in place, the chain 1. With the chain clamped in position, rotate stop still flipped into position and the chain stop the chain stop in behind the chain tooth adjustment knobs still secured.
  • Page 5 When there is an odd number of teeth in the chain, the teeth can be doubled up ie. left, left, right. Should the chain have an odd number of teeth, check to find this point, and be aware of this condition. PXCCSSS-018...
  • Page 6 OPERATION Note: The sharpening process consists of two operations. These are, setting to the left, and Movement of the chain through then setting the right. It is suggested that you sharpen all of the teeth that face one the chain clamp (sliding guide) should side (every second tooth) and then proceed to sharpen all the teeth on the opposite be from the HANGING chain as shown.
  • Page 7 4. Hold the wheel with one hand and using Note: Ozito Industries will not be responsible for any damage or injuries caused by the free hand turn the knob at the centre repair of the tool by an unauthorised person or mishandling or mistreatment of the of the wheel anti clockwise.
  • Page 8 Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. The power supply for this products charger should be protected by a residual current device (rated at 30mA or less). A residual current device reduces the risk of electric shock.
