Ozito PMT-004 Instruction Manual

Petrol 4-in-1multi tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

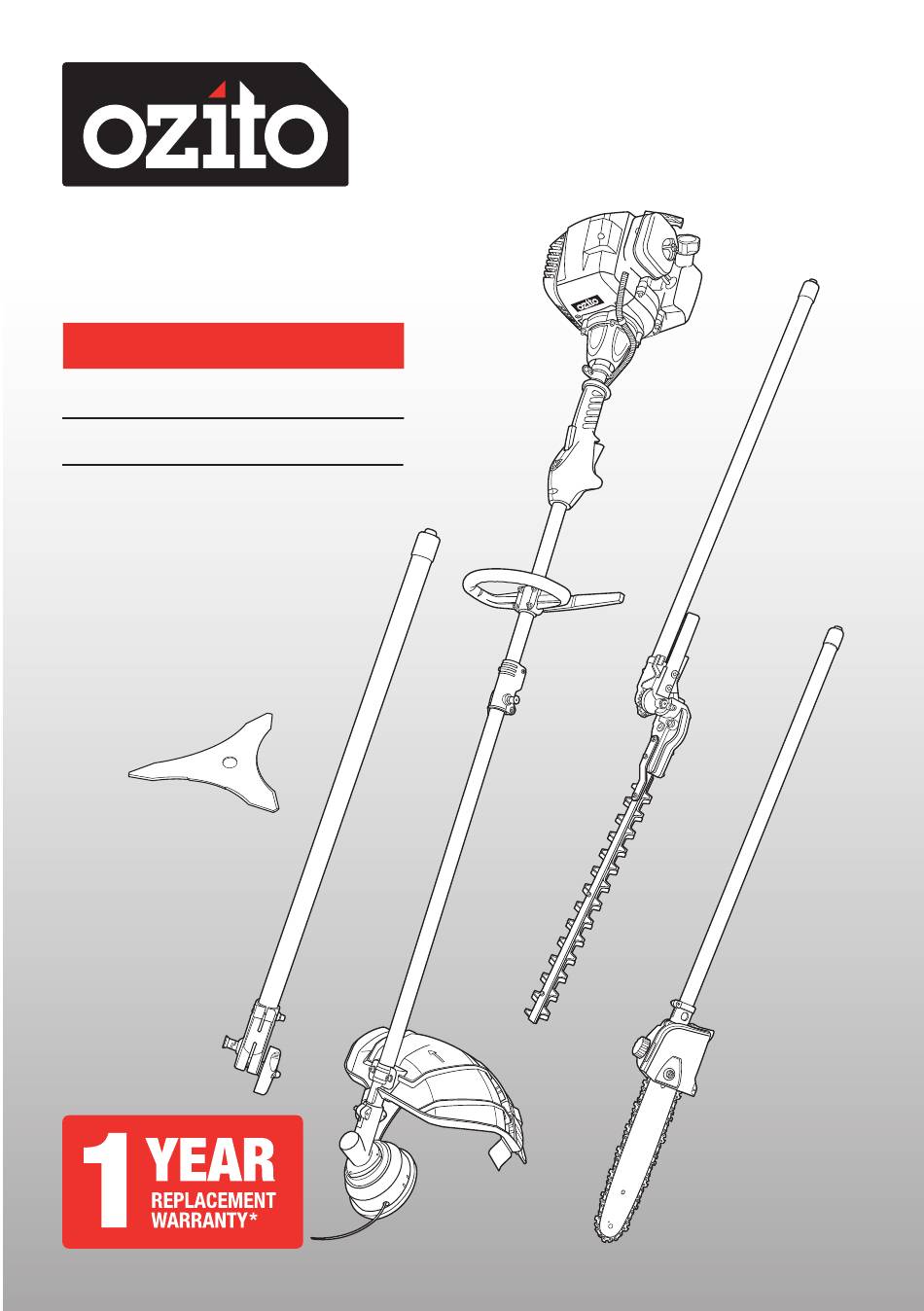

PETROL 4-IN-1
MULTI TOOL
51.7cc 2-Stroke
INSTRUCTION MANUAL
ozito.com.au
PMT-004
1120
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMT-004 and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito PMT-004

Summary of Contents for Ozito PMT-004

  • Page 1 PETROL 4-IN-1 MULTI TOOL 51.7cc 2-Stroke INSTRUCTION MANUAL ozito.com.au PMT-004 1120...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS RISK OF EXPLOSION OR FIRE What can happen: • Spilled petrol and its vapours can become ignited from cigarette sparks, electrical arcing, exhaust gases and hot engine components such as the muffler. • Heat will expand fuel in the tank which could result in a fire. •...
  • Page 3 SAFETY INSTRUCTIONS (cont.) b) Do not use the petrol tool if the switch does not turn it on and off. Any petrol tool that cannot be controlled with the switch is dangerous and must be repaired. c) Turn tool off completely before making any adjustments, changing accessories, or storing petrol tools.

  • Page 4: Safety Warnings

    LINE TRIMMERS / BRUSH CUTTERS SAFETY WARNINGS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
  • Page 5 POLE HEDGE TRIMMER SAFETY WARNINGS • Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
  • Page 6 POLE PRUNER SAFETY WARNINGS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the appliance.

  • Page 7: Specifications

    SPECIFICATIONS ENGINE Engine Power: 51.7cc 2-Stroke Output: 1.5 kW (2.0HP) Fuel Tank: 0.9 litres Fuel Mix: 40:1 Noise Level: 114dB Max. No Load Speed: 9,600/min Weight: 4.0kg LINE TRIMMER Cutting Circle: Ø420mm Cutting Line: Ø2.4mm x 4m Feed Type: Bump feed Weight: 6.8kg BRUSH CUTTER...

  • Page 8: Know Your Product

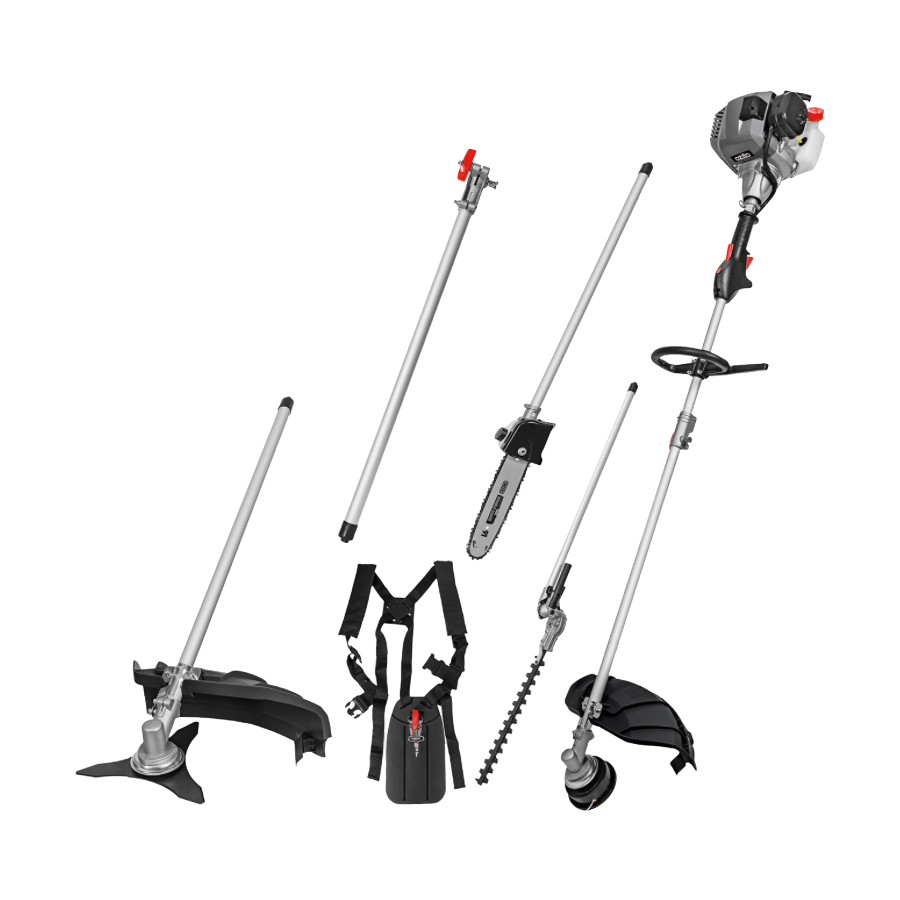

    KNOW YOUR PRODUCT PETROL 4-IN-1 MULTI TOOL 1. Engine 2. Recoil Starter 3. Fuel Tank 4. Air Filter Cover 5. Line Trimmer/Brush Cutter Attachment 6. Rear Handle 7. On/Off Switch 8. Throttle Safety 9. Throttle 10. Adjuster Lever 11. Blade Tilt Lock 12.
  • Page 9 ONLINE MANUAL Scan this QR Code with your mobile device to take you to the online manual.

  • Page 10: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS..........Page 2 SAFETY WARNINGS............Page 4 SPECIFICATIONS............Page 7 KNOW YOUR PRODUCT..........Page 8 STEPUP & PREPARATION..........Page 11 Assembly..........Line & Spool..........Brush Cutter Blade........Chain & Bar..........Attachment..........Harness............ Fuel............OPERATION..............Page 20 APPLICATIONS............... Page 22 Line Trimmer/Brush Cutter......

  • Page 11: Stepup & Preparation

    SETUP & PREPARATION 1. ASSEMBLY WARNING! DO NOT START THE ENGINE UNTIL THE UNIT IS FULLY ASSEMBLED. Fitting the Front Handle 1. Using the 4mm hex key, unscrew the four socket head screws on the front handle. 2. Locate the hole on the underside of the engine shaft as you place the lower part of front handle in position.

  • Page 12: Line Spool

    SETUP & PREPARATION (cont.) 2. LINE SPOOL Fitting the Line Spool Carrier Plate 1. Fit the Carrier Plate over the spindle as this provides the ability to lock the spindle from Carrier Plate turning when fitting or removing the line Cover spool.

  • Page 13: Brush Cutter Blade

    Pressure Plate 3. BRUSH CUTTER BLADE Cover Pressure Plate Fitting the Brush Cutter Blade WARNING! THE BRUSH CUTTER BLADE HAS SHARP EDGES. FOR YOUR Blade SAFETY, PLEASE USE GLOVES. 1. Fit the Carrier Plate over the spindle. Place the Brush Cutter Blade onto the Carrier Pressure Plate Plate, ensuring that the hole in the blade Cover...

  • Page 14: Chain & Bar

    SETUP & PREPARATION (cont.) 4. CHAIN & BAR Fitting the Guide Bar & Chain WARNING! ALWAYS WEAR GLOVES WHEN HANDLING THE CHAIN AS IT IS VERY SHARP AND CAN CUT YOU WHEN IT IS NOT MOVING. Tooth cutting direction. 1. Using supplied spanner remove the chain sprocket cover nut then remove chain sprocket cover.
  • Page 15 5. Re-mount and finger-tighten the chain sprocket cover with the chain sprocket cover nut. Note: Only tighten the chain sprocket cover nut securely once the chain tension has been adjusted (see: Tensioning the chain.) Tensioning the Chain 1. Using supplied spanner loosen the chain sprocket cover nut.
  • Page 16 SETUP & PREPARATION (cont.) Chain Lubrication WARNING! NEVER START WORK UNLESS THE CHAIN AND BAR ARE LUBRICATED. WARNING! ONLY USE OIL THAT IS EXPRESSLY LABELLED “CHAIN BAR OIL”. 1. Place the pole pruner on a level surface. 2. Clean the area around the oil tank cap and then open it.

  • Page 17: Attachment

    5. ATTACHMENT Fitting the Attachment 1. Loosen the attachment lock knob on the engine shaft connecting piece. 2. Pull the lock pin and push the lower shaft carefully into the shaft connecting piece. 3. Ensure that the lock pin latches into the hole in the lower shaft, you may need to turn the lower shaft slightly to enable correct fitting.

  • Page 18: Harness

    SETUP & PREPARATION (cont.) 6. HARNES Fitting the Harness 1. Fit the harness so that the shoulder pads sit on the shoulders and the plate hangs down at the waste. 2. Hook the unit to the harness. 3. In order to establish the optimum length of the harness, you should then make a few swinging movements without starting the engine.

  • Page 19: Fuel

    7. FUEL WARNING! PETROL IS VERY FLAMMABLE. DO NOT SMOKE OR CAUSE ANY SPARKS OR FLAMES NEAR FUEL. MAKE SURE THAT YOU STOP THE MOTOR AND ALLOW IT TO COOL BEFORE REFUELLING THE ENGINE. SELECT AN OPEN OUTDOOR AREA FOR FUELLING AND MOVE AT LEAST 3M AWAY FROM THE FUELLING POINT BEFORE STARTING THE ENGINE.

  • Page 20: Operation

    OPERATION 8. STARTING & STOPPING Pre-starup Checks 1. Ensure that there are no leaks in the fuel system. 2. Ensure that the safety devices and cutting attachments are complete. 3. Make sure that the harness is connected and adjusted to the correct height. 4.
  • Page 21 6. Set the choke lever to choke off position “ ” (Choke Off/Run). 7. Hold the equipment securely and pull out the starter cable until you feel it begin to resist. Then tug sharply on the starter cable until the engine starts. Note: Never allow the starter line to snap back.

  • Page 22: Applications

    APPLICATIONS 9. LINE TRIMMER/BRUSH CUTTER Extending the Cutting Line To extend the cutting line, run the engine at full speed and tap the line spool on the ground. This will automatically extend the line. The knife edge blade on the safety guard will cut the line to the appropriate length.
  • Page 23 Cutting along Fences/Foundations/Trees When cutting approach wire mesh fences, natural stone walls and foundations slowly so that you can cut close to them without striking the obstacle with the line. If, for example, the line strikes stones, stone walls or foundations, it will wear or fray.

  • Page 24: Pole Pruner

    APPLICATIONS (cont.) 10. POLE PRUNER Chain Lubrication Level of oil in the oil container: Both before and during your work make sure that there is always sufficient oil in the system. To avoid damaging the bar & chain, never run the pruner if there is no oil in the system or if the oil drops below the “min“...
  • Page 25 WARNING! THE CHAIN COMES IN CONTACT WITH A HARD OBJECT, VISUALLY INSPECT THE CHAIN & BAR FOR DAMAGE. IF THE CHAIN OR BAR IS DAMAGED, DO NOT CONTINUE TO OPERATE THE POLE PRUNER. WARNING! NEVER USE THE POLE PRUNER WHEN STANDING ON A LADDER OR UNEVEN GROUND.
  • Page 26 APPLICATIONS (cont.) Sawing Techniques • When removing branches, hold the pruner at an angle ranging from a maximum 60° to horizontal in order to avoid being struck by a falling branch. max. 60˚ • At the end of the cut, the weight of the pruner suddenly increases for the user, because it is no longer supported on the branch.
  • Page 27 Cutting Wood Under Tension Special care is required when cutting wood which is under tension. cutting wood which is under tension can release the tension, causing the wood to react out of control. In the worst case this can result in sever and even fatal injuries. This type of work must be performed only by specially trained persons.

  • Page 28: Pole Hedge Trimmer

    APPLICATIONS (cont.) 11. POLE HEDGE TRIMMER Adjusting the Angle WARNING! BEFORE YOU MAKE ANY ADJUSTMENTS MAKE SURE THAT THE ENGINE IS OFF AND IS COOL. DISCONNECT THE SPARK PLUG TO PREVENT ACCIDENTAL STARTING. 1. The cutting blade can be tilted in order to ensure an ergonomic working position.
  • Page 29 Cutting New Growth The most effective method is to use wide, sweeping movements, 15° guiding the cutting edge of the blade straight through the branches. A slight incline of the blade downwards in the direction of movement will produce the best cutting results.

  • Page 30: Maintenance

    MAINTENANCE WARNING! BEFORE CLEANING OR CARRYING OUT ANY MAINTENANCE PROCEDURE, MAKE SURE THAT THE ENGINE IS OFF AND IS COOL. DISCONNECT THE SPARK PLUG TO PREVENT ACCIDENTAL STARTING. Line Replacement 1. Align the hole in Carrier Plate with the hole in the Carrier Plate Cover and insert the 4mm hex key.
  • Page 31 a. Press 7. Thread the two ends of the line through the metal eyelets in the line spool housing. 8. Align the spool cover, at the tab in order to press down and turn the spool cover into the line spool housing to reassemble the two halves.

  • Page 32: Maintaining The Guide Bar

    30° 30° LEFT HAND MAINTENANCE (cont.) CUTTERS RIGH CUTT Maintaining the Guide Bar WARNING! ALWAYS WEAR GLOVES WHEN HANDLING THE CHAIN AS IT IS VERY SHARP AND CAN CUT YOU WHEN IT IS NOT MOVING. 1. Remove any sawdust from the guide bar, including the groove. Oil and sawdust combine and emit a burning smell during operation if the guide bar is not regularly cleaned.

  • Page 33: Hedge Trimmer Blade

    Automatic Chain Lubrication You should check the operation of the automatic chain lubrication system on a regular basis in order to guard against overheating and the damage this can cause to the guide bar and the chain. Point the tip of the guide bar above some light coloured paper such as newspaper and allow the pruner to run.

  • Page 34: Servicing The Air Filter

    MAINTENANCE (cont.) Servicing the Air Filter Soiled air filters reduce the engine output by starving air to the carburettor. Regular checks are therefore essential. The air filter should be checked after every 25 hours of use and cleaned if necessary. If the air contains a lot of dust, the air filter should be checked more frequently.

  • Page 35: Cleaning, Storage And Transport

    Cleaning, Storage and Transport WARNING! BEFORE CLEANING OR CARRYING OUT ANY MAINTENANCE PROCEDURE, MAKE SURE THAT THE ENGINE IS OFF AND IS COOL. DISCONNECT THE SPARK PLUG TO PREVENT ACCIDENTAL STARTING. Cleaning - • Regularly clean the tensioning mechanism by blowing it out with compressed air or cleaning it with a brush.

  • Page 36: Troubleshooting

    TROUBLESHOOTING Fault Possible cause Remedy The engine does not Correct starting Follow the instructions for starting start procedure not followed the engine Sooted or damp spark Clean the spark plug or replace it plug with a new one Incorrect carburettor Contact an authorized customer setting service outlet.

  • Page 37: Description Of Symbols

    DESCRIPTION OF SYMBOLS Cubic Centimetres No load speed /min Revolutions or reciprocation per minute Decibel level Read the manual prior to use Extremely hot surface. Wear safety goggles, a face guard and Wear safety non-slip boots ear protection Wear safety gloves Protect the equipment from rain and damp Wear safety goggles and ear protection Warning...

  • Page 38: Spare Parts

    SPARE PARTS Chain Replacement The chain can be purchased through Ozito spare parts or from your local Bunnings Warehouse. The correct chain can be purchased by matching the pitch, gauge and number of links as shown below: 9.52mm (3/8”) 1.27mm (0.050”)
  • Page 39 CARING FOR THE ENVIRONMENT Tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice. Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment.

  • Page 40: Warranty

    • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
