INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.

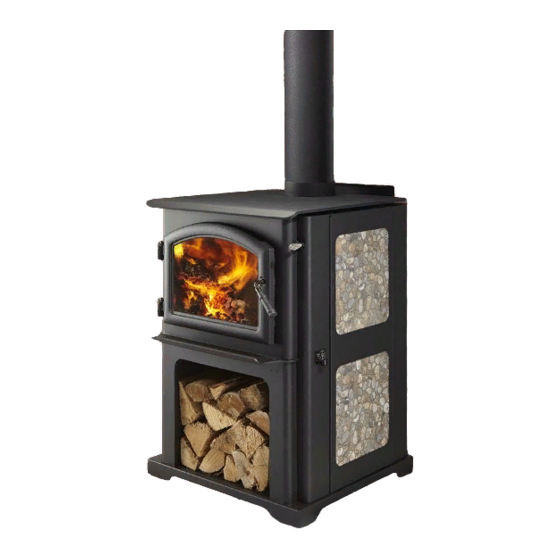

DISCOVERY I WOOD APPLIANCE
Automatic Combustion Control (ACC)
Model: DISCOVERY-I
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfire and generate
poisonous gases (i.e. carbon monoxide).
Installation and service of this
appliance should be performed by
quali ed personnel. Hearth & Home
Technologies recommends HHT
Factory Trained or NFI certified
professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
Tested and
O-T L
Portland
Listed by
Oregon USA
C
US
OMNI-Test Laboratories, Inc.
If the information in these instruc-
tions is not followed exactly, a
fire could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfire - If appliance or chimney
connector glows, you are overfiring. Overfir-
ing will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
appliance.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other flammable
materials away.
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafire.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafire.com
7039-174C
WARNING
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
NOTE
August 01, 2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Quadra-Fire Discovery I Wood Appliance
Summary of Contents for Quadra-Fire Discovery I Wood Appliance
- Page 1 OWNER: Retain this manual for future reference. NOTICE: DO NOT DISCARD THIS MANUAL WARNING If the information in these instruc- DISCOVERY I WOOD APPLIANCE tions is not followed exactly, a fire could result causing property Automatic Combustion Control (ACC) damage, personal injury, or death.
-
Page 2: Table Of Contents
D. Blower (Optional) ............17 Dimensions and Clearances ....7 Mobile Home Installation ....18 A. Appliance Dimensions ..........7 Accessory List ........19 B. Hearth Protection Requirements ......8 C. Clearances to Combustibles ........9 Quadra-Fire is a registered trademark of Hearth & Home Technologies. 7039-174C August 01, 2016... -
Page 3: Important Safety Information
84-HUD, Mobile Home Approved. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. The Quadra-Fire Discovery I Wood Appliance meets the U.S. Environmental Protection Agency’s crib wood emission limits For assistance or additional information, consult a qualified for wood appliances sold after May 15, 2015. -
Page 4: Getting Started
Discovery I Install Guide Getting Started A. Design and Installation Considerations B. Fire Safety Consideration must be given to: To provide reasonable fire safety, the following should be given serious consideration: • Safety • Convenience Install at least one smoke detector on each floor of •... -
Page 5: Negative Pressure
Discovery I C. Negative Pressure WARNING WARNING Fire Risk. Hearth & Home Technologies disclaims any Asphyxiation Risk. responsibility for, and the warranty will be • Negative pressure can cause spillage of com- voided by, the following actions: bustion fumes, soot and carbon monoxide. •... -
Page 6: Install Checklist
Discovery I F. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual. Customer: __________________________________________________________________________ Date Installed: __________________________________________________________________________ Lot/Address: __________________________________________________________________________ Location of Appliance: ______________________________________________________________... -
Page 7: Dimensions And Clearances
Discovery I Dimensions and Clearances A. Appliance Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 23-5/8 [600] 11-13/16 [300] 6-11/16 [170] 9-1/4 13-1/2 [343] [233] 33-7/8 [860] 11-1/2 [292] 15 [381] 24-1/8 [613] Figure 7.2 Top View Figure 7.1 Front View 26-5/8 [675] 24-5/16 [618]... -
Page 8: Hearth Protection Requirements
Discovery I In Canada, similar floor protection must be provided 18 inches B. Hearth Protection Requirements (457mm) in front and 8 inches (203mm) from the sides and rear of the appliance. Figure 8.2 *See exception. FLOOR PROTECTION: Floor protector must be non-combus- tible material, extending beneath appliance and to the front, *EXCEPTION: Non-combustible floor protections must sides and rear as indicated. -
Page 9: Clearances To Combustibles
Discovery I C. Clearances to Combustibles MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS in inches (Millimeters) Note: A, C, and F Dimensions are to the center of the flue collar DISCOVERY-I INSTALLATION: FULL VERTICAL SINGLE WALL PIPE 18 (457) 11 (275) 24-1/2 (622) 13 (330) 8-1/2 (216) 20 (508) -
Page 10: Chimney Systems
Discovery I Chimney Systems A. Locating Your Appliance & Chimney • Consider the appliance location in order to avoid floor and ceiling attic joists and rafters. Location of the appliance and chimney will affect perfor- mance. As shown in Figure 10.1 the chimney should: •... -
Page 11: Chimney Termination Requirements
Discovery I B. Chimney Termination Requirements NOTICE: Locating the appliance in a basement or in a location of considerable air movement can cause intermittent Follow manufacturer’s instructions for clearance, securing smoke spillage from appliance. Do not locate appliance near flashing and terminating the chimney. Fig. 11.1 & 11.2 •... -
Page 12: Chimney Height/Rise And Run
Discovery I D. Chimney Height / Rise and Run Chimney: The chimney can be new or existing, masonry or prefabricated This product was designed for and tested on a 6 inch (152mm) and must meet the following minimum requirements and as chimney, 14 to 16 feet (420-480cm) high, (includes appliance specified in Section 4F. - Page 13 Discovery I • Minimum of 1 inch (25mm) clearance around the chim- Listed Termination Cap ney connector. Storm Collar • Top of wall opening is a minimum of 13-1/2 inches (343mm) from ceiling or 4-1/2 inches (114mm) below Flashing minimum clearance specified by chimney connector manufacturer.
-
Page 14: Installing Chimney Components
Maintain minimum clearances to combustibles Figure 14.1 H. Proper Draft To be sure that your Quadra-Fire insert burns properly, the chimney draft (static pressure) should be approximately -0.10 inches water column (W.C.) during a high burn and -0.04 inches W.C. during a low burn, measured 6 inches (152mm) above the top of the insert after one hour of operation at each burn setting. -
Page 15: Appliance Set-Up
Discovery I Appliance Set-Up A. Outside Air Kit Installation WARNING A source of air (oxygen) is necessary in order for combus- Fire Risk. Asphyxiation Risk. tion to take place. Whatever combustion air is consumed by the fire must be replaced. Air is replaced via air leakage Do not draw outside combustion air from: around windows and under doors. -
Page 16: Decorative Panel Removal & Installation
Discovery I B. Decorative Panel Removal & Installation Your appliance ships with two different side options, one is a solid side panel (Figure 16.1) and tile side panel (Figure 16.3). There Securing are two of each and no left or right side, these can be changed Clip at anytime. -
Page 17: Door Handle Assembly
Discovery I C. Door Handle Assembly D. Blower (Optional) 1. Install fiber handle to door handle rod. Tools Required: #2 Phillips head screwdriver 1. Locate bolts supplied with the blower. 2. Align holes in mounting flange of blower with bolt holes in appliance. -
Page 18: Mobile Home Installation
Discovery I Approved for USA Installation only! Mobile Home Installation You must use a Quadra-Fire Outside Air Kit Part CAUTION OAK-ACC; which is availble from you dealer, for installation in a mobile home. THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED 1. -
Page 19: Accessory List
SRV7000-194 Blower, Convection 812-4900 Component Pack SRV7033-051 Snap Disc Bracket Assembly SRV7033-036 Snap Disc, # 1, Convection Blower SRV230-0470 Wire Harness, Blower 7033-262 Logo, Quadra-Fire Pkg of 10 7000-649/10 Outside Air Kit, Floor & Rear OAK-ACC Augsut 01, 2016 7039-174C... -
Page 20: Contact Information
Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL...
