The meter only performs these automatic units if the measurement is derived
solely from the Power Meter module's output.

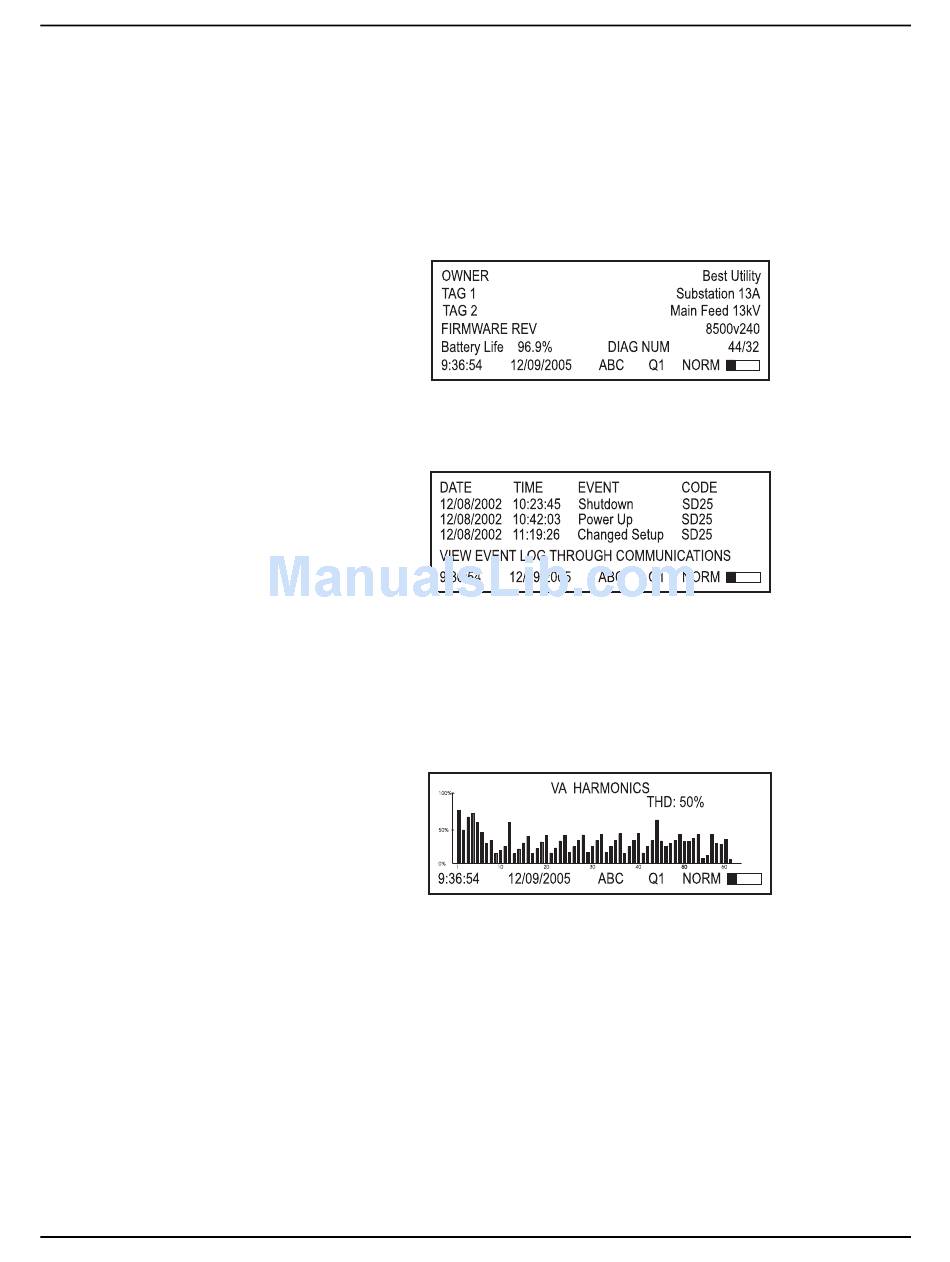

Nameplate display and event log
Nameplate displays and event logs appear in ALT mode and are organized in
tabular format. Nameplate displays show owner, meter and power system details:
The Event Log displays recent high priority events. You must use ION software to
retrieve all logged data:
Histogram displays
Harmonic content is displayed in histogram format. The 2
st
(31 on the ION 8300 meter) are displayed in the histogram. The total harmonic
distortion (THD) is displayed above the histogram.
Display Screen Types
nd rd
to the 63 harmonics
