Alarm Relay & Digital Input Signals ⎯ Customer Connections
In standard Smartpack-based DC power systems, the controller's customer alarm relay
and digital input signals are cabled to dedicated easy accessible terminals, as shown in
Figure 6. See also your system's specific arrangement drawings.
Smartpack
controller
1 9
2 10
CON1
(male; green)
Alarm I/O
Connections
Smartpack
controller
19 26
1 9
CON2
(female; green)
Ext. Alarm I/O
Connections

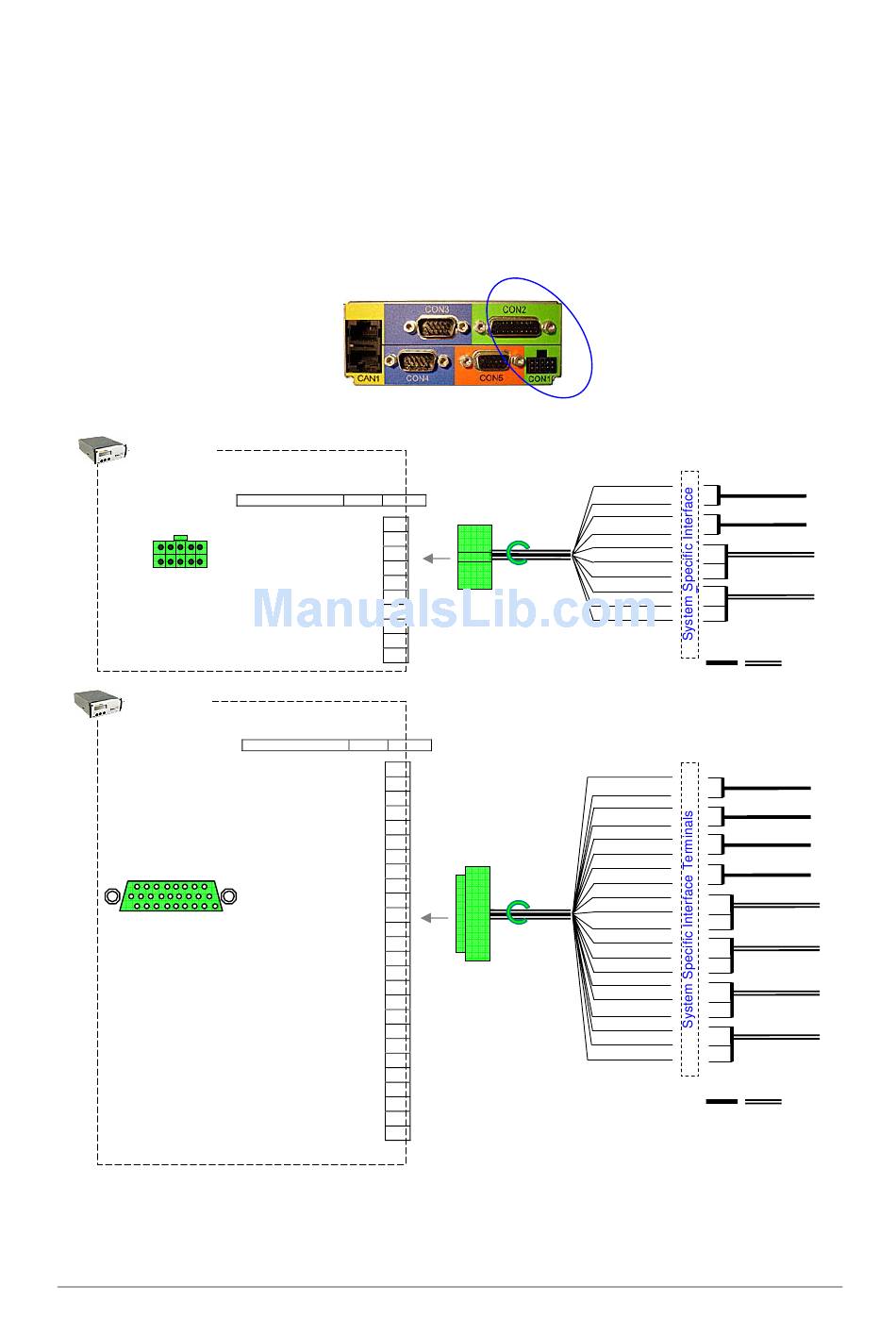

Figure 6 Overview of customer connections
User's Guide Smartpack Monitoring & Ctrl Unit,
CON1
10 pins Connector (male)
FUNCTION SIGNAL PIN-OUT
−
Config. Input 1A 1
Config. Input 1B + 2
−
Config. Input 2A 3
Config. Input 2B + 4
Relay Output 1 5
COM
Relay Output 1 6
NO
Relay Output 1 7
NC
Relay Output 2 8
COM
Relay Output 2 9
NO
Relay Output 2 10
NC
CON2
26 pins D-Sub (female)
FUNCTION SIGNAL PIN-OUT
Config. Input 5B + 1
−
Config. Input 5A 2
Config. Input 6B + 3
−
Config. Input 6A 4
NC 5
Relay Output 3 6
NC
Relay Output 4 7
NC
Relay Output 5 8
NC
Relay Output 6 9
NC
−
Config. Input 4A 10
NC 11
NC 12
NC 13
NC 14
Relay Output 3 15
NO
Relay Output 4 16
NO
Relay Output 5 17
NO
Relay Output 6 18
NO
Config. Input 4B + 19
−
Config. Input 3A 20
Config. Input 3B + 21
NC 22
Relay Output 3 23
COM
Relay Output 4 24
COM
Relay Output 5 25
COM
Relay Output 6 26
COM
2 The Smartpack Controller
2
1
4
Interface
Cable 1
3
6
5
7
9
10-pins
8
plug
10
female
21
20
19
10
1
2
3
Interface
4
Cable 2
15
23
6
16
24
7
26-pins
17
D-Sub
25
male
8
18
26
9
⎯
alarm relay & digital input signals
350003.013, v5-2006-11
+
Input Circuit 1
−
+
Input Circuit 2
−
NO
COM
Alarm Circuit 1
NC
NO
COM
Alarm Circuit 2
NC
(Customer
Connections)
In Out
+
Input Circuit 3
−
+
Input Circuit 4
−
+
Input Circuit 5
−
+
Input Circuit 6
−
NO
COM
Alarm Circuit 3
NC
NO
COM
Alarm Circuit 4
NC
NO
COM
Alarm Circuit 5
NC
NO
COM
Alarm Circuit 6
NC
(Customer
Connections)
In Out
