FEATURES:
Line 1 / Line 2 priority input switching
Line 2 auxiliary output
High level input
Front panel volume control
Front panel 40Hz-500Hz variable crossover control
Front panel 5Hz-50Hz subsonic filter control
Front panel diagnostic LEDs
Signal sensing "Power On"
12VDC "Trigger On"
Triple-Darlington Power Amplifier Stages
Dual-differential error amplifiers
Output Limiter switch
Rack-mount ready
AudioSource®
9200 North Decatur St.
Portland, OR 97203
503.286.9300
www.audiosource.net

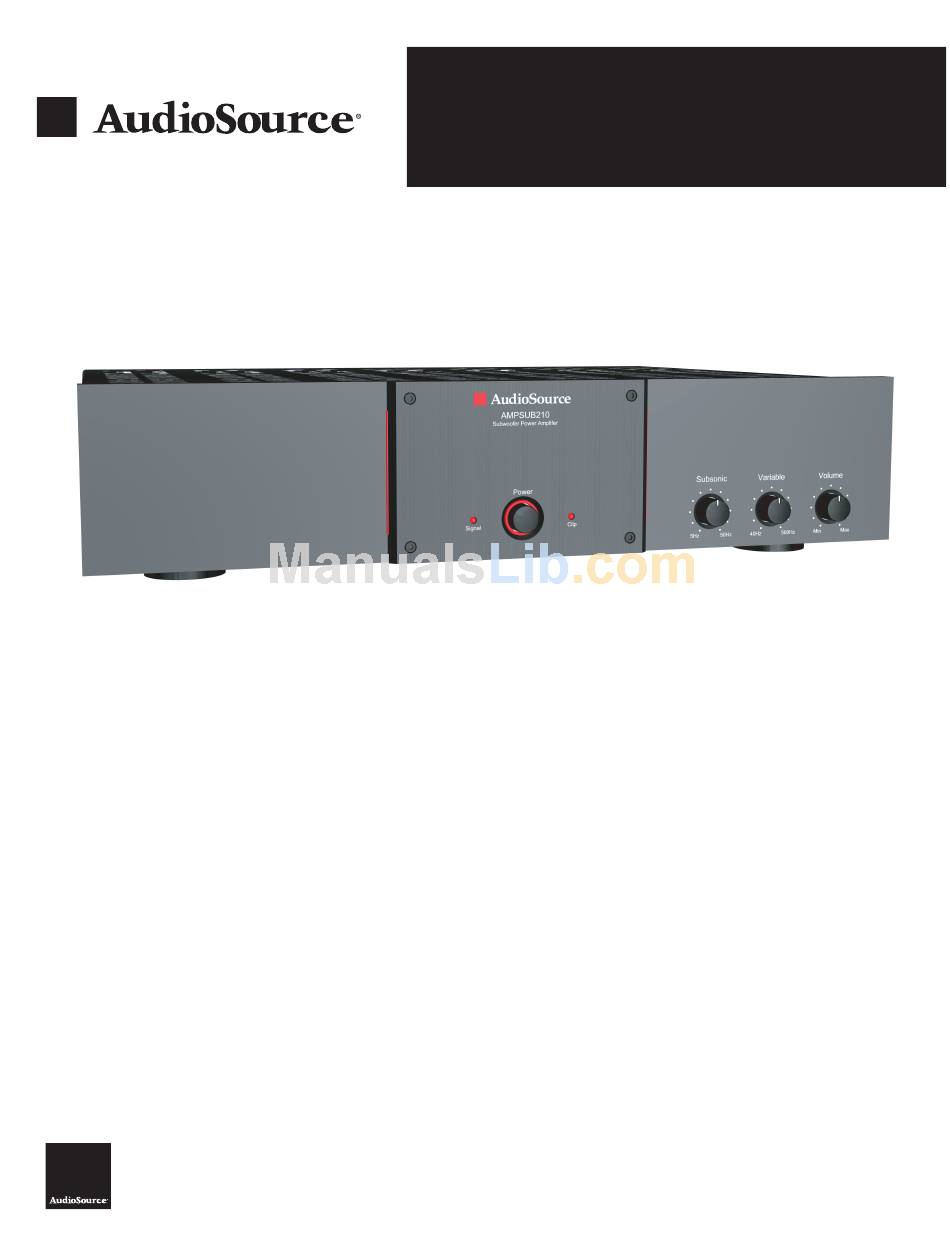

AMPSUB210
Home Audio Subwoofer Power Amplifier
Congratulations on your purchase of the AudioSource® AMPSUB210.
Please take a few moments to read this entire manual, and be sure to
retain this document for future reference. Please read and observe all
safety instructions detailed on page 2.
NOTE: if any part of this product is damaged or missing, please call your
dealer or AudioSource® directly at 1.800.435.7115 or 503.286.9300.
Please read your warranty and retain your receipt and original carton for
possible future use.
For more information about AudioSource® electronics, speakers and
accessories please visit www.audiosource.net
AMPSUB210 Owner's Manual 8100.0361A
AMPSUB210
OWNER'S MANUAL
Advertisement
Table of Contents
Related Manuals for AudioSource AMPSUB210
Summary of Contents for AudioSource AMPSUB210
- Page 1 OWNER’S MANUAL AMPSUB210 Home Audio Subwoofer Power Amplifier Congratulations on your purchase of the AudioSource® AMPSUB210. Please take a few moments to read this entire manual, and be sure to retain this document for future reference. Please read and observe all safety instructions detailed on page 2.
-
Page 2: Explanation Of Safety Symbols
9200 North Decatur St. Portland, OR 97203 • 503.286.9300 • www.audiosource.net... -
Page 3: Technical Support
AudioSource®, or damage that is attributable to Acts of God. It does not cover costs of transportation to AudioSource® or damage in transit. The customer should return his defective product, freight prepaid and insured, to AudioSource®... - Page 4 3.5mm mini phone plug cable. 14. Power Mode Sets the power on option of the AMPSUB210. Set it to Normal for manual power on/off. Set to Auto-On for signal sensing. Set to Trigger if the 12V Trigger input is used.
-
Page 5: Front Panel Controls
9200 North Decatur St. Portland, OR 97203 • 503.286.9300 • www.audiosource.net & There are 2 pairs of RCA inputs on the back panel of the AMPSUB210. These RCA inputs are labeled as “Line 1 IN” and “Line 2 IN”. They are also designated with an “R”... -
Page 6: Speaker Terminals
This amplifier is configured for operation at 115V ~60Hz. (North America) The AMPSUB210 can be configured for operation from either 115V ~60Hz or 230V ~50Hz AC mains. Installed mains fuse must be of type and rating marked on amplifier corresponding to configured AC mains voltage. -
Page 7: Single Source Setup
In this configuration the amplifier plays a single source such as home theater or home stereo. Connect the line out jacks from a stereo preamplifier or receiver to the Line 2 input jacks of your AMPSUB210. (Figure 10) Next connect your speakers to the terminals observing proper polarity (see “Speaker Terminals” Page 6). -
Page 8: Caractéristiques
POUR TOUTE INFORMATION SUR LE SERVICE AUX ÉTATS-UNIS VEUILLEZ APPELER : Service à la clientèle AudioSource : (503) 286-9300 ou (800) 950-1449 8:30 à 17:00 Heure du Pacifique. -
Page 9: Contrôles Du Panneau Avant
1. Alimentation L’interrupteur d’alimentation du panneau avant allument ou éteint l’AMPSUB210. Les DEL rouges placés à l’arrière de la dalle de verre indiquent l’état d’alimentation. Chaque fois que l’interrupteur d’alimentation est en position «ON», la bague entourant le bouton s’allumera. - Page 10 Cet amplificateur est configuré sur 115V (Amérique du Nord) Le AMPSUB210 peut être configuré pour être opéré à partir soit de réseaux 115V ~60Hz, soit de réseaux 230V ~50Hz AC. Les fusibles des réseaux installés doivent être du même type et avoir les mêmes spécifications figurant sur...
- Page 11 Néanmoins, le signal audio réparti sera encore détectable au niveau de l’entrée de la Ligne 2. Dans ces circonstances, la sortie audio de la source locale sera entendue via le AMPSUB210. Une fois que la source locale est éteinte ou mise en sourdine, l’AMPSUB210 retournera automatiquement au système audio réparti en tant que source audio, en supposant que...
- Page 12 GARANTÍA LIMITADA PARA ELECTRÓNICOS (ESTADOS UNIDOS) AudioSource garantiza sus productos contra defectos en materiales y mano de obra por un período limitado de tiempo. Para un período de 1 año a partir de la fecha original de compra, repararemos o repondremos el producto, a nuestro criterio, sin cargo por partes y mano de obra. El cliente debe pagar todos las partes y cargos por mano de obra después de la expiración del período de garantía.
-
Page 13: Controles Del Panel Frontal
CONTROLES DEL PANEL FRONTAL 1. Energía El interruptor de energía del panel frontal enciende o apaga el AMPSUB210. Lámparas LED rojas detrás de la placa frontal indican el estado de energía. Cuando el interruptor de energía del amplificador está en la posición “ON”... - Page 14 AC. Si desea configurar el AMPSUB210 para el uso a 230V ~50Hz por favor contacte a su representante o distribuidor. 9200 North Decatur St. Portland, OR 97203 • 503.286.9300 • www.audiosource.net...
- Page 15 In” y configurar el interruptor de ruteo en la posición “Línea 2", la posición de mano derecha del interruptor (Figura 12). El AMPSUB210 ya no podrá pasar el Total de Audio Distribuido en Cámara a otra zona a través de la Salida de Línea 2. Si usted tiene cualquier pregunta relativa a esta configuración, llame al soporte técnico de...
- Page 16 Variable, 350mV to 2.8V for rated power at 8 ohms AC Power Consumption: 700W maximum Net Weight: 23.1lbs / 10.5kgs Gross Weight: 30.8lbs / 14.0kgs 16.5” (419mm) AMPSUB210 Subwoofer Power Amplifier Power Signal Clip Subsonic Variable Volume Volume 50Hz 40Hz 500Hz AMPSUB210 Owner’s Manual 8100.0361A...
