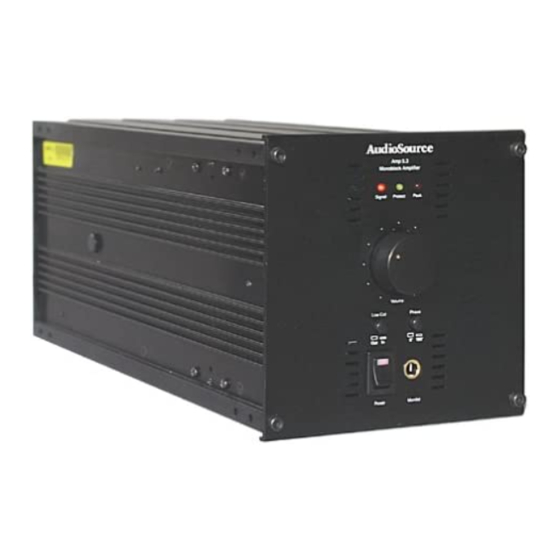

AudioSource Amp Five Owner's Manual

Monoblock amplifiers

Download this manual

upon which the best home sound systems are built. In the AMP Five

series, AudioSource has designed the most unique line of multichannel

power amplifiers available. The AMP 5.1, 5.2 and 5.3 are completely

modular within their optional 19-inch rack mount chassis. The ability

to place and replace several monoblock amplifiers gives the AMP Five

series unsurpassed flexibility. From powering an entire home theater

to driving in-wall speakers throughout an entire home, the AMP Five

series offers the kind of versatility others only dream about.

s t a rted. Also, be sure to retain this document should you need to

refer to it in the future .

Note: If any part of this product is damaged or missing, do not contact your

AudioSource dealer. Please call AudioSource directly at 800-435-7115.

* If you are younger than 13,ask your parents for permission to send e-mail.

AMP Five Series

Monoblock Amplifiers

Multichannel power amplifiers have become the solid foundation

Please take a few moments to read this manual before you get

Owner's Manual

Need help?

Do you have a question about the Amp Five and is the answer not in the manual?

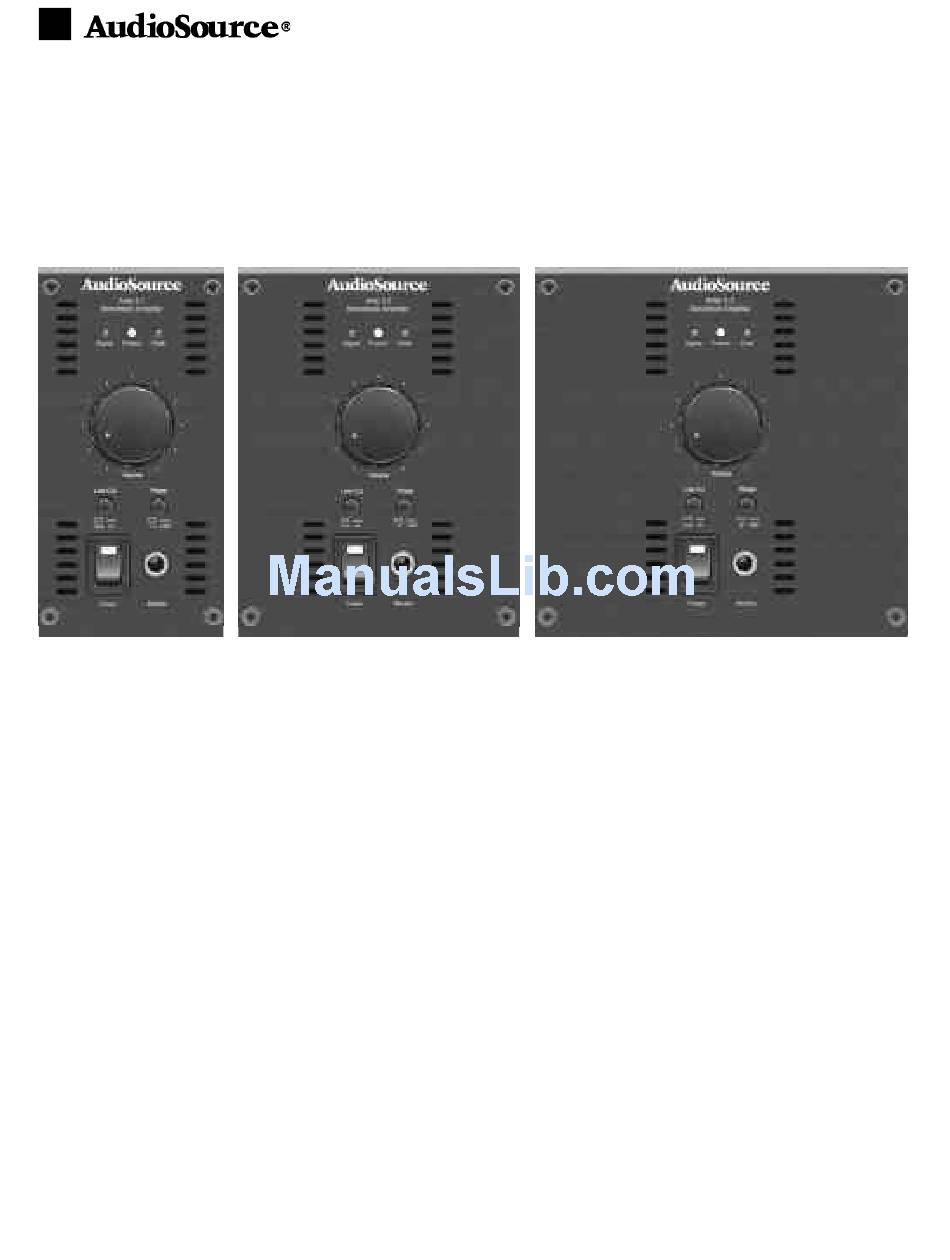

Page 1 Multichannel power amplifiers have become the solid foundation upon which the best home sound systems are built. In the AMP Five series, AudioSource has designed the most unique line of multichannel power amplifiers available. The AMP 5.1, 5.2 and 5.3 are completely modular within their optional 19-inch rack mount chassis.
Page 2: Using The Controls
Using the Controls Signal LED This light indicates that a signal is present at one of the inputs. Protect LED This light indicates when the unit is o v e rheated, or when a shorted load or DC is detected in the amplifier output. The amplifier will reset itself when the p roblem is corre c t e d .
Page 3 Connections The AMP Five Series may be connected in a number of ways. Keep in mind that only one input may be used at one time. Speaker Connections First determine whether you will use the balanced (XLR) or unbalanced (RCA) inputs. If you plan to send the same signal to more than one speaker, you will use the unbalanced (RCA) input and output to pass the signal on to a second power amplifier and speaker.
Page 4: Safety Instructions
In the event your AMP Five fails to operated properly, please contact the Precautions should be taken so that the grounding or polarization means dealer where you purchased the unit. Or you may contact AudioSource of an appliance is not defeated.
