AudioSource SWTWO Owner's Manual

AudioSource SWTWO Owner's Manual

Stereo preamplifier and am/fm digital tuner with wireless remote control
Hide thumbs Also See for SWTWO:

Advertisement

Table of Contents

PreAmp/Tuner Two
Stereo PreAmplifier and
AM/FM Digital Tuner with Wireless

Remote Control

Tuning
Model PreAmp/Tnr TWO
Quartz PLL Digital Synthesiser
Stereo PreAmplifier
and Digital Tuner
FM
Stereo
Remote Sensor
Tuner
AM/FM
Power

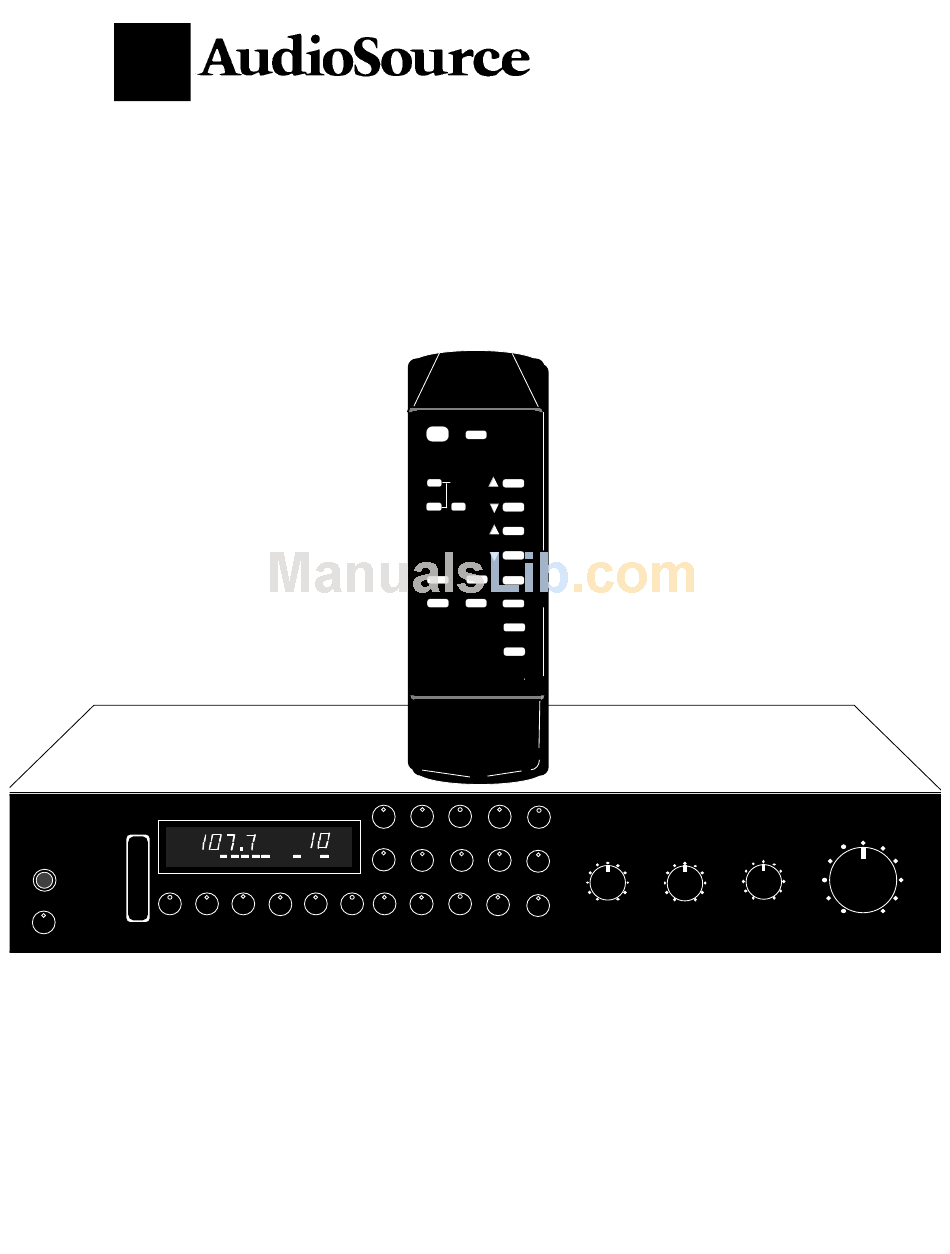

Congratulations on your new purchase, and welcome to the AudioSource family of
satisfied customers. We trust that you will continue to enjoy the value and quality of your
AudioSource PreAmp/Tuner Two. In order to make sure that you are experiencing the best
performance from your component, please take a few moments to read this manual before
you get started. Also, be sure to retain this manual should you need to refer to it in the future.
1
MHz
Preset Station
1
2
3
4 5
Auto
Memory
4
Mono
Memory
Auto
+10
7
Power
Mute
1
Preset
Volume
11
Next
Tuning
FM/AM
Phono
C.D.
Video 1
Tuner
Tape
Video 2
Video 3
PreAmp/Tuner Two
2
3
Tape
Video 1
Phono
6
Video 2
5
Min
8
9
CD
Video 3
Owner's Manual
Balance
Bass
Treble
Max
Max
Min
Right
Left
© 1996 AudioSource, Inc.
Volume
Min
Max

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWTWO and is the answer not in the manual?

Questions and answers

Related Manuals for AudioSource SWTWO

Summary of Contents for AudioSource SWTWO

  • Page 1: Remote Control

    We trust that you will continue to enjoy the value and quality of your AudioSource PreAmp/Tuner Two. In order to make sure that you are experiencing the best performance from your component, please take a few moments to read this manual before you get started.

  • Page 2: Using The Controls

    Model PreAmp/Tuner Two Stereo PreAmplifier and AM/FM Digital Tuner Auto Stereo 104.5 KHz Tuned Remote Sensor Power Tuning Tuner AM/FM Mono Auto Memory Using The Controls Power : Press this button to Turn "ON" the A.C. power to the PreAmp/Tuner Two. The Red LED indicator will remain lit when the unit is ON.
  • Page 3 Model PreAmp/Tuner Two Stereo PreAmplifier and AM/FM Digital Tuner Auto Stereo 104.5 KHz Tuned Remote Sensor Power Tuning Tuner AM/FM Mono Auto Memory Using The Controls Tape : Press this button to select "Tape" as your input source. The Red LED will indicate your selection.

  • Page 4: Using The Wireless Remote Control

    Wireless Remote Control Power : Press this button to Turn "ON" the A.C. power to the PreAmp/Tuner Two. Mute : Press this button to "Mute" the volume of the system. All presets will be remembered - including the previous system volume. Power Mute Volume : Press the top button to raise the volume of the system.

  • Page 5: Hooking It All Up

    Hooking It All Up All Components plug into the "RCA style" jacks on the rear panel of the PreAmp/Tuner Two. Tape Tape Phono Video 3 Video 3 THESE CONNECTIONS ARE PICTURED IN "SET-UP DIAGRAM #1 Audio Connections Phono: Plug the "Line Out" jacks of your turntable into these jacks. C.D.
  • Page 6 PreAmp/Tuner Two Specifications Total Harmonic Distortion:----------------------------------------------------------------------------------<0.008% Output with <0.008%:---------------------------------------------------------------------------------------------1.5 V Frequency Response:-------------------------------------------------------------------10 Hz to 100K Hz, ±0.5 dB Signal to Noise Ratio:------------------------------------------------------------------------------------100 dB Line Input Sensitivity:--------------------------------------------------------------------------------------150 MV (Line) Input Impedance:------------------------------------------------------------------------------------------------47K Alternate Channel Selectivity (FM) :---------------------------------------------------------------------------65 dB Image Rejection (FM):--------------------------------------------------------------------------------------------70 dB Capture Ratio (FM):------------------------------------------------------------------------------------------------1 dB T.H.D.(FM):-------------------------------------------------------------------------------------------------Mono 0.2% Image Rejection (AM) at 1000 kHz:----------------------------------------------------------------------------40 dB...
  • Page 7 A Few Words About Your New PreAmp/Tuner Two We at AudioSource would like to thank you for purchasing the PreAmp/Tuner Two. You can take pride in owning this quality crafted unit; we take pride in having built it. We've combined the most useful features of a Stereo PreAmplifier and AM/FM Digital Tuner into a single low profile unit, that will become the control center for your Audio/Video system.

  • Page 8: Setup Diagram

    Hooking It All Up Set-up Diagram #1 PHONO Line Line Tape Tape Phono Video 3 Video 3 Video Out Video In VIDEO 1 Variable Line Out T.V. / Monitor Video In Video Out Line Line Set-up Diagram #2 TAPE 1 PLAY PLAY Tape...

  • Page 9: Using The Antennas

    Using the Antennas FM "T" Type Antenna - If the PreAmp/Tuner two is to be used in a strong FM signal area, a "T" type antenna (dipole) may provide adequate reception. To connect this antenna, attach its leads to the 300 Ohm terminals, fully extend the upper sections of the "T", and position them for greatest sensitivity (maximum indication of the "Tuned"...

This manual is also suitable for:

Preamp/tuner two

Table of Contents

Save PDF
