FEATURES:
Line 1 / Line 2 priority input switching
Line 2 auxiliary output
High level input
Speaker A/B switching
Front panel balance and volume trim controls
Independent rear left / right master level controls
Front panel diagnostic LEDs
Signal sensing "Power On"
12VDC "Trigger On"
Triple-Darlington Power Amplifier Stages
Dual-differential error amplifiers
SN Ratio: 100dBA
Rack-mount ready
AudioSource®
9200 North Decatur St.
Portland, OR 97203
503.286.9300
www.audiosource.net

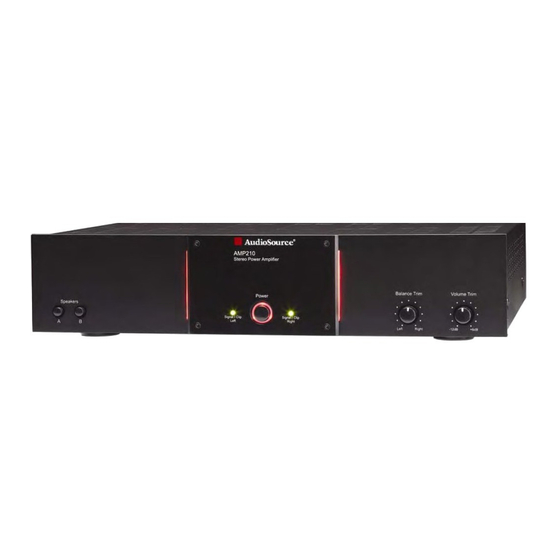

AMP210 / AMP310
Home Audio Multi-Zone Power Amplifier
Congratulations on your purchase of the AudioSource® AMP210/310.
Please take a few moments to read this entire manual, and be sure to
retain this document for future reference. Please read and observe all
safety instructions detailed on page 2.
NOTE: if any part of this product is damaged or missing, please call your
dealer or AudioSource® directly at 1.800.435.7115 or 503.286.9300.
Please read your warranty and retain your receipt and original carton for
possible future use.
For more information about AudioSource® electronics, speakers and
accessories please visit www.audiosource.net
AMP210 / AMP310 Owner's Manual 8100.0359A
AMP210 / AMP310
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMP210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AudioSource AMP210

Summary of Contents for AudioSource AMP210

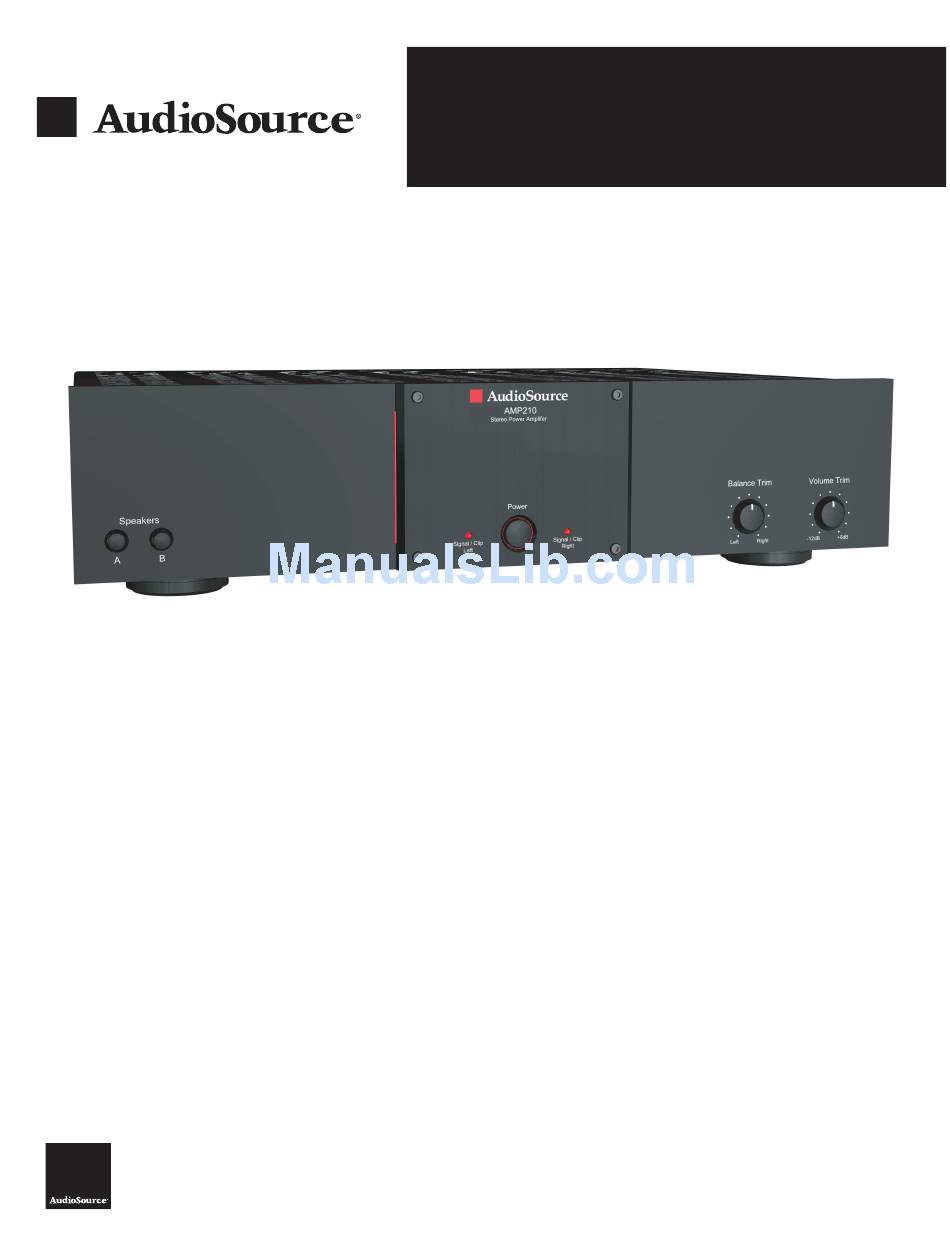

  • Page 1 Speaker A/B switching Front panel balance and volume trim controls Congratulations on your purchase of the AudioSource® AMP210/310. Independent rear left / right master level controls Please take a few moments to read this entire manual, and be sure to Front panel diagnostic LEDs retain this document for future reference.

  • Page 2: Important Safety Instructions

    If an equipment rack is used, we recommend locating the amplifier(s) in the bottom of the rack and the preamplifier or other sensitive equipment at the top. 9200 North Decatur St. Portland, OR 97203 • 503.286.9300 • www.audiosource.net...

  • Page 3: Technical Support

    AudioSource®, or damage that is attributable to Acts of God. It does not cover costs of transportation to AudioSource® or damage in transit. The customer should return his defective product, freight prepaid and insured, to AudioSource®...
  • Page 4 14. Power Mode amplifier switches back to the Line 2 or “primary” input. Sets the power on option of the AMP210/310. Set it to Normal for manual 7. Speaker Level Input Line Select power on/off. Set to Auto-On for signal sensing. Set to Trigger if the 12V Switches the input of the speaker level input to Line 1 or Line 2.

  • Page 5: Front Panel Controls

    Auto On Figure 6. RCA Inputs There are 2 pairs of RCA inputs on the back panel of the AMP210/310. These RCA inputs are labeled as “Line 1 IN” and “Line 2 IN”. They are also designated with an “R” or an “L” as Right channel or Left channel Trigger Normal inputs respectively.
  • Page 6 “Stereo” position. position and use both RED terminals to connect to the speaker. NOTE: If you are using the AMP210/310 in stereo mode, with 2 sets of When in “Bridged” mode make sure to connect the speaker’s negative speakers (A and B), make sure each speaker has an impedance of 8 ohms (black) terminal to the amplifier’s positive (red) terminal of the left channel and...

  • Page 7: Applications

    Line 1 Line 2 NOTE: It should be noted that the AMP210/310 is rated to operate into a minimum 8-ohm bridged load. Therefore, if you are using more than a single 8-ohm loudspeaker in bridged mode you should consider using an impedance matching speaker selector, such as the Phoenix Gold®...
  • Page 8 Sensitivity: Variable, 350mV to 2.8V for rated power at 8 ohms AC Power Consumption: 1200W maximum 13.75” Net Weight: 33.1lbs / 15.0kgs (349mm) Gross Weight: 41.9lbs / 19.0kgs AudioSource® 9200 North Decatur St. Portland, OR 97203 503.286.9300 AMP210 / AMP310 Owner’s Manual 8100.0359A www.audiosource.net...
