(A)
M6x25
Screw
Qty: 16
MODEL 20070312
PART NO REPLACEMENT PART ITEM NO
1 Body Kit, Black 9907120003
2 Digital Smoker Control 9007120007
3 Rear Handle Kit 9907120015
4 Smoking Rack 9007120002
5 Drip Defl ector Pan 9007120003
6 Cooking Grate Support 9007120001
7 Door Latch Kit, Black 9907120004
8 Water Bowl 9007120004
9 Wood Chip Tray 9007120006
10 Drip Pan 9007120009
11 Adjustable Screw Leg 910050006
12 Wood Chip Loader 9007120005
13 Grease Tray 9007120019
14 Wheel Kit 9907120017
15 Element Kit, 800 Watt 9907120011
16 Wood Chip Housing Kit 9907120014
18 Air Damper Kit 9907120005
19 30" Door Kit, SS 9907120001
20 Door Handle Kit 9907120012
21 Right Front Foot Kit 9907120006
Left Front Foot Kit 9907120007
22 Grease Tray Bracket Kit 9907120016
23 Right Trim Panel Kit 9907120009
Left Trim Panel Kit 9907120010
24 Door Hinge Kit 9907120013
Hinge Cover Kit 9907120008
25 Control Panel Housing Kit 9907120002
26 LED Light Kit 9907120018
Digital Remote 9007120008
Hardware Kit 9907120019
Instruction Manual 9807120001
DO NOT RETURN TO RETAILER For Assembly Assistance, Missing or Damaged Parts
Call: MASTERBUILT Customer Service at 1-800-489-1581.
STOP!
Please have Model Number and Serial Number available when calling.
These numbers are located on silver label on back of unit.
5

HARDWARE LIST

(B) (C)
ST4x10 M6x9
Screw Screw
Qty: 8 Qty: 8
PARTS LIST
MODELS 20070512, 20072612
PART NO REPLACEMENT PART
1 Body Kit, Black
2 Digital Smoker Control
3 Rear Handle Kit
4 Smoking Rack
5 Drip Defl ector Pan
6 Cooking Grate Support
7 Door Latch Kit, Black
8 Water Bowl
9 Wood Chip Tray
10 Drip Pan
11 Adjustable Screw Leg
12 Wood Chip Loader
13 Grease Tray
14 Wheel Kit
15 Element Kit, 1200 Watt
16 Wood Chip Housing Kit
18 Air Damper Kit
19 40" Door Kit, SS
20 Door Handle Kit
21 Right Front Foot Kit
Left Front Foot Kit
22 Grease Tray Bracket Kit
23 Right Trim Panel Kit
Left Trim Panel Kit
24 Door Hinge Kit
Hinge Cover Kit
25 Control Panel Housing Kit
26 LED Light Kit
Digital Remote
Hardware Kit
Instruction Manual
HOW TO USE CONTROL PANEL & REMOTE CONTROL
ITEM NO
9907120022

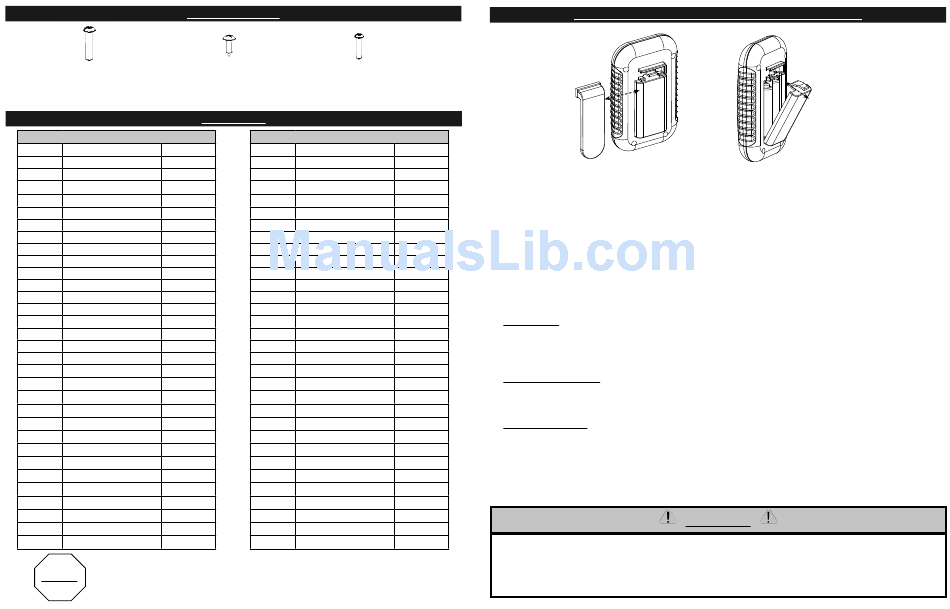

To replace batteries:
9007120015
• Slide belt clip to the left to remove.
9907120028
• Press tab down on battery cover and pull out.
9007120012
• Install 2 "AAA" Alkaline batteries. Check positive (+) and negative (-) symbols, on the case and
9007120013
battery, to insure proper installation.
9007120011
• Replace the battery cover.
9907120004
• Remove batteries before storing remote control.
9007120014
9007120006
To test frequency range:
9007120016
• Turn unit on.
910050006
• Use remote to turn light on and off as you move away from unit.
9007120005 • Remote control is out of frequency range when light will no longer turn on and off.
9007120018
IMPORTANT
9907120017
• Do not leave remote control exposed to sunlight for prolonged periods of time.
9907120027
• Remote control has frequency range of up to 100ft (30m).
9907120014
• Test frequency range before and during use.
9907120005
9907120020

TROUBLESHOOTING

9907120012
If the remote is not working properly or not interfacing correctly with the controller, it may be due to
9907120023
weak batteries, batteries being incorrectly installed or the remote is not correctly linked to controller.
9907120024
Possible solutions
9907120016
• Replace batteries and install according to image in battery housing
9907120025
• Link remote and controller by:
9907120026
a. Turn Controller & Remote "OFF",
9907120013
b. Press and HOLD "SET TEMP" on controller for 3 seconds.
9907120008
c. On the Remote press "MEAT PROBE", "LIGHT", "MEAT PROBE", "LIGHT" (all buttons must be
9907120021
pressed within 5 seconds of each other) A short beep will occur after each button press.
9907120018
9007120008
9907120019
• Keep batteries away from small children. If battery is swallowed consult a physician immediately.
9807120001
• Be sure to insert batteries correctly. Improper installation may result in leaks and/or possible explosion.
• Do not dispose of batteries in fi re.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh,etc) batteries.
*Batteries not
included
CAUTION
14
