Masterbuilt 070312 Assembly, Care & Use Manual page 7

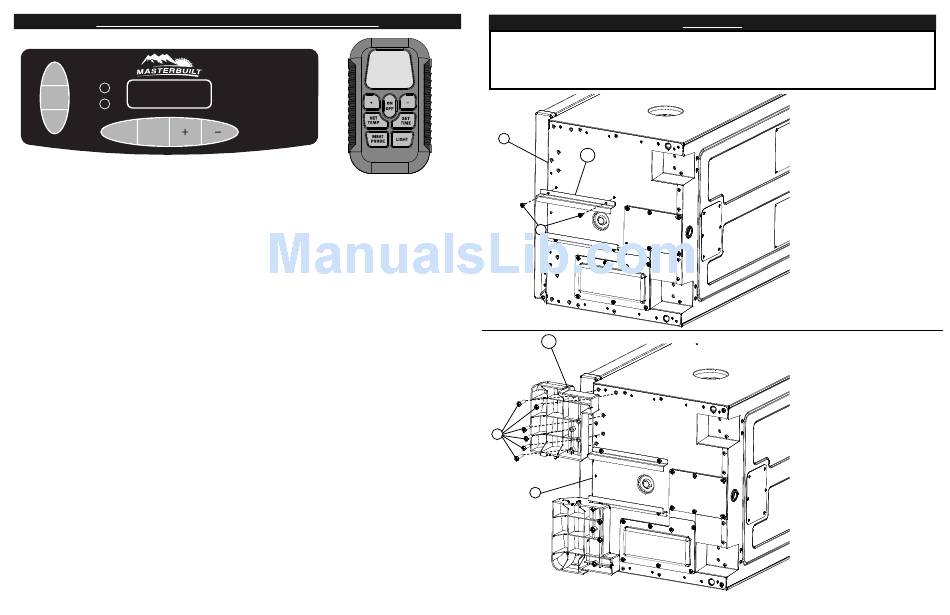

HOW TO USE CONTROL PANEL & REMOTE CONTROL
ON
OFF
POWER
MEAT
PROBE
HEATING
Heat will turn off when time has expired
LIGHT
SET SET
TEMP TIME
Note: Direct sunlight may interfere with ability to read LED display, block light if needed.
To set temperature:
•Press ON button.
•Press SET TEMP button once-LED display will blink.
•Use +/- to set temperature.
•Press SET TEMP button again to lock in temperature.
Note: Heating will not begin until timer is set.
To set timer:
•Press SET TIME button once-LED display for hours will blink.
•Use +/- to set hours.
•Press SET TIME button again to lock in hours. The minutes LED will start blinking.
•Use +/- to set minutes.
•Press SET TIME to lock in minutes and start cook cycle.
Heat will turn off when time has expired.
To use meat probe:
• Insert meat probe into center of meat to get most accurate reading.
• Press and hold MEAT PROBE button-LED display will show internal temperature of meat.
• Once MEAT PROBE button is released-LED display will return to set temperature or set time.
To use light:
• Press LIGHT button to turn light on.
• Press LIGHT button to turn light off.
To RESET control panel:
If control panel shows an error message, turn electric smoker off, unplug unit from outlet, wait
ten seconds, plug unit back into outlet, then turn electric smoker on. This will reset control panel.
13
Step 1- Setting Temperature:
1) Press ON button
2) Press SET TEMP once
3) Use +/- to set desired temperature
4) Push SET TEMP to lock temperature
Step 2- Setting Timer:
1) Press SET TIME once
2) Use +/- to set hours
3) Push SET TIME to set minutes
4) Use +/- to set minutes
5) Press SET TIME to start Cook Cycle
Step 3- Meat Probe:
1) Insert Probe into Center of Meat
2) Press MEAT PROBE to check
Internal Meat Temperature
Note: Internal Meat Temperatures
May Vary by Location
• BEFORE ASSEMBLY READ ALL INSTRUCTIONS CAREFULLY.
• ASSEMBLE UNIT ON A CLEAN, FLAT SURFACE.
• TOOL NEEDED: PHILLIPS HEAD SCREWDRIVER
**Some assembly steps may already be completed
due to pre-assembly at the factory.**
1
22
A
21
A
1
ASSEMBLY
STEP 1
Remove all components on
inside of smoker before
beginning assembly.
Carefully position smoker on
side as shown. Alternatively,
the smoker can be positioned
upside down for assembly.
However, make sure styrofoam
packaging remains on top to
prevent damage to control
panel.
Attach grease tray bracket (22) to
bottom of smoker body (1) using
screws (A) as shown.
Repeat step for remaining grease
tray bracket.
STEP 2
Secure front foot (21) to bottom of
smoker body (1) using screws (A).
Repeat step on opposite side for
remaining front foot.
