Masterbuilt 070312 Assembly, Care & Use Manual page 10

19
20
A
13
9

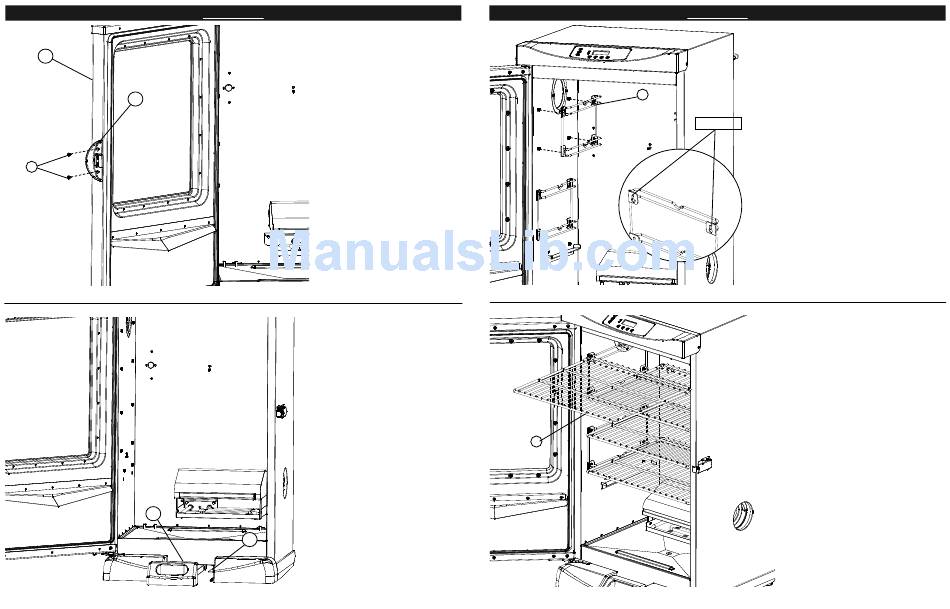

ASSEMBLY
STEP 7
Position door handle (20) on door
w/window (19) as shown. Secure
using screws (A).
STEP 8
Slide grease tray (13) onto grease
tray brackets (22).
22
ASSEMBLY
6
KEYHOLES
4
STEP 9
Align keyholes on grate supports
(6) with studs on the inside of
smoker body as shown. Press
grate support down to secure in
place.
Repeat step for remaining grate
supports on both sides.
STEP 10
Place smoking racks (4) inside
smoker as shown.
10
