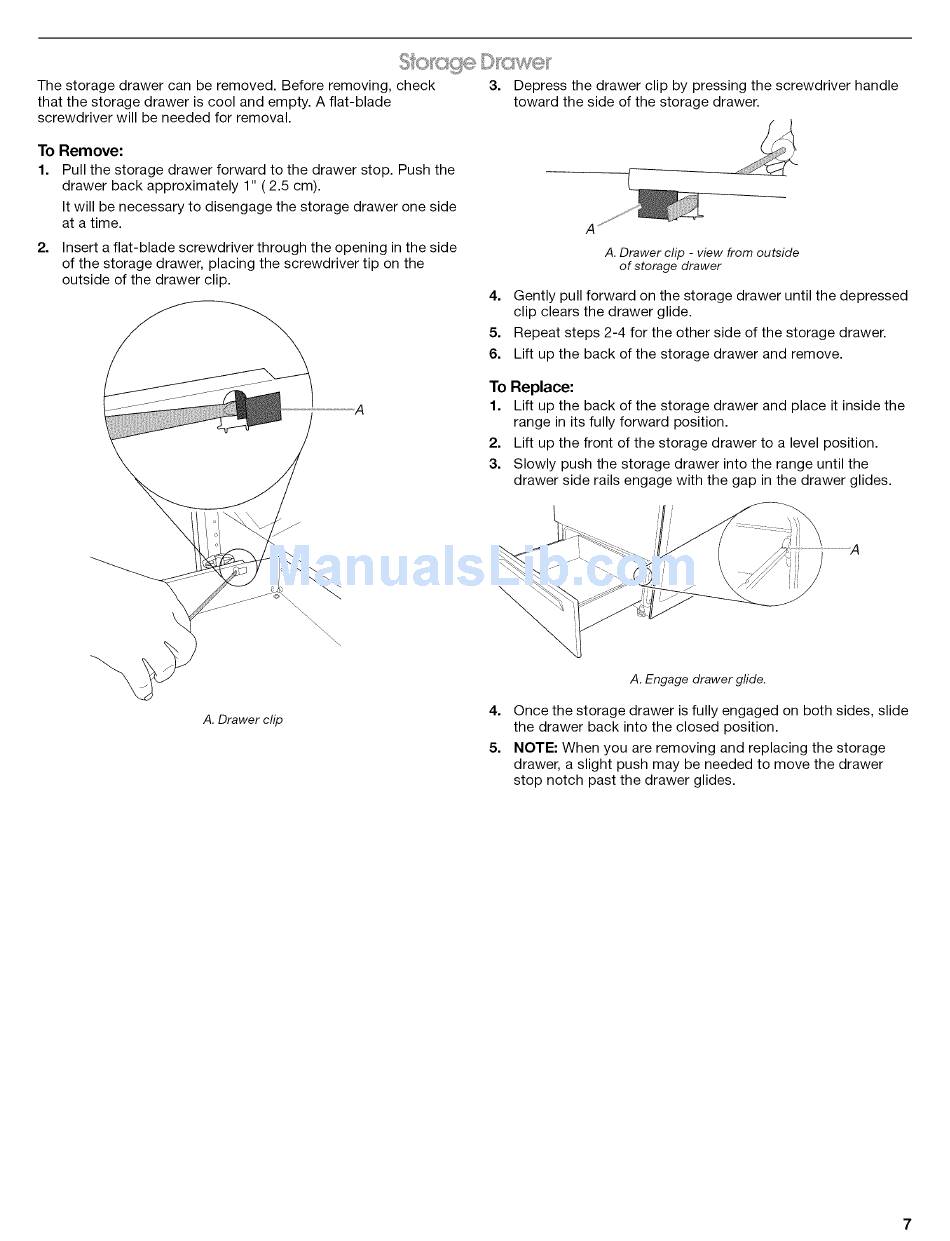

The storage drawer can be removed. Before removing, check
3. Depress the drawer clip by pressing the screwdriver handle
that the storage drawer is cool and empty. A flat-blade
toward the side of the storage drawer.
screwdriver will be needed for removal.
To Remove:
1. Pull the storage drawer forward to the drawer stop. Push the
drawer back approximately
1" ( 2.5 cm).
It will be necessary to disengage the storage drawer one side
at a time.
2. Insert a flat-blade screwdriver through the opening in the side
of the storage drawer, placing the screwdriver tip on the
outside of the drawer clip.
A
A. Drawer clip - view from outside
of storage drawer
4. Gently pull forward on the storage drawer until the depressed
clip clears the drawer glide.
5. Repeat steps 2-4 for the other side of the storage drawer.
6. Lift up the back of the storage drawer and remove.
To Replace:
1. Lift up the back of the storage drawer and place it inside the
range in its fully forward position.
2. Lift up the front of the storage drawer to a level position.
3. Slowly push the storage drawer into the range until the
drawer side rails engage with the gap in the drawer glides.
\\
\\\
\\\\\
A. Drawer clip
\
A. Engage drawer gfide.
4. Once the storage drawer is fully engaged on both sides, slide
the drawer back into the closed position.
5. NOTE: When you are removing and replacing the storage
drawer, a slight push may be needed to move the drawer
stop notch past the drawer glides.
