INSTALLATION INSTRUCTIONS

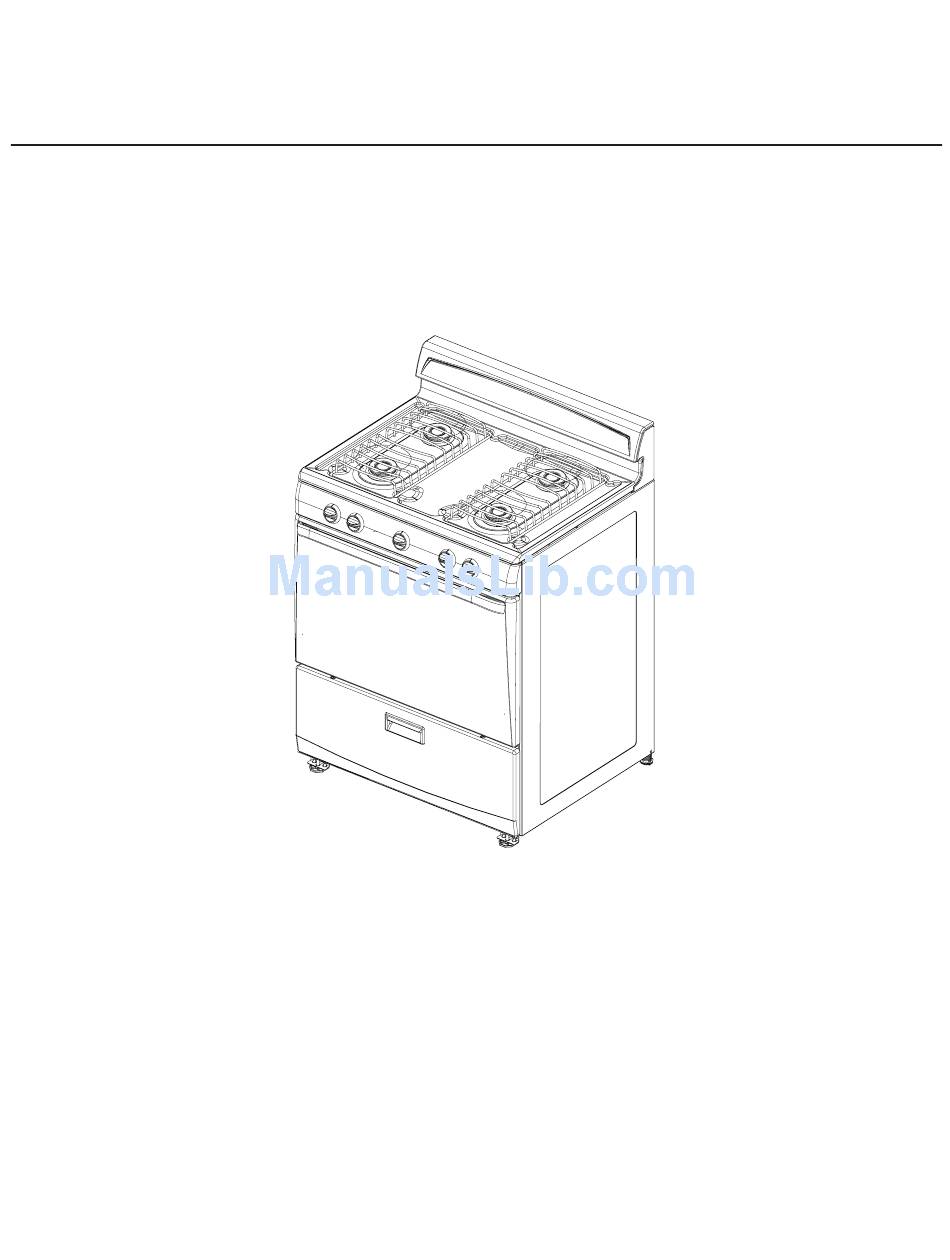

30" (76.2 CM) FREESTANDING GAS RANGE
with standard clean oven
Table of Contents..................................................2
To the installer: Please leave this instruction book with the unit.
To the consumer: Please read and keep this book for future reference.
W10130752A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W10130752A and is the answer not in the manual?

Questions and answers

Summary of Contents for Whirlpool W10130752A

  • Page 1 INSTALLATION INSTRUCTIONS 30" (76.2 CM) FREESTANDING GAS RANGE with standard clean oven Table of Contents...2 To the installer: Please leave this instruction book with the unit. To the consumer: Please read and keep this book for future reference. W10130752A...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS RANGE SAFETY ... 2 INSTALLATION REQUIREMENTS ... 4 Tools and Parts ... 4 Location Requirements... 4 Electrical Requirements ... 6 Gas Supply Requirements ... 6 INSTALLATION INSTRUCTIONS ... 8 Unpack Range ...8 Install Anti-Tip Bracket ...8 Verify Anti-Tip Bracket Location ...9 Level Range ...9 Make Gas Connection ...9 Check Operation ...10...
  • Page 3 WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 4: Installation Requirements

    INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools needed Level " drive ratchet Tape measure Flat-blade screwdriver Phillips screwdriver Hand or electric drill Slip-joint pliers 7 mm combination wrench Pipe wrench...
  • Page 5: Product Dimensions

    Product Dimensions 26-3/4" (67.9 cm) depth with handle 24-1/4" 29-7/8" (75.9 cm) (61.6 cm) Installation Clearances Cabinet opening dimensions shown are for 25" (64 cm) counter- top depth, 24" (61 cm) base cabinet depth and 36" (91.4 cm) countertop height. If the cabinet depth is greater than 24"...
  • Page 6: Electrical Requirements

    Electrical Requirements WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. IMPORTANT: The range must be electrically grounded in accor- dance with local codes and ordinances, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70,...
  • Page 7: Gas Pressure Regulator

    Flexible metal appliance connector: If local codes permit, a new CSA design-certified, 4-5 ft (122-152.4 cm) long, " (1.3 cm) or metal appliance connector may be used for connecting range to the gas supply line. " (1.3 cm) male pipe thread is needed for connection to the female pipe threads of the inlet to the appliance gas pres- sure regulator.
  • Page 8: Installation Instructions

    INSTALLATION INSTRUCTIONS Unpack Range WARNING Excessive Weight Hazard Use two or more people to move and install range. Failure to do so can result in back or other injury. 1. Do not use oven door handle to lift or move the range. 2.
  • Page 9: Verify Anti-Tip Bracket Location

    8. Move the range close to the opening. Remove the shipping base, cardboard or hardboard from under the range. 9. Open the broiler door. Use a 3/8" drive ratchet to lower the rear leveling legs one-half turn. Use flip-joint pliers to lower the front leveling legs one-half turn.
  • Page 10: Check Operation

    Complete Connection 1. Locate gas pressure regulator in the broiler. A. Gas pressure regulator IMPORTANT: Do not remove the gas pressure regulator. 2. Check that the gas pressure regulator shutoff valve is in the “ON” position. Gas Pressure Regulator Front View Front View Front Shutoff valve...
  • Page 11: Check Operation Of Oven/Broil Burner

    Check Operation of Oven/Broil Burner 1. Open broiler door. 2. Push in and turn the oven control knob to “350˚F.” The oven pilot should now be larger with the flame burning against a small metal bulb. The oven burner should light in 20–40 sec- onds;...
  • Page 12: Gas Conversions

    WARNING Explosion Hazard Use a new CSA International approved gas supply line. Install a shut-off valve. Securely tighten all gas connections. If connected to LP, have a qualified person make sure gas pressure does not exceed 14" (36 cm) water column.
  • Page 13: Complete Conversion

    2. Locate LP gas orifice spuds for top burners in the bag con- taining literature included with the range. Three LP gas spuds are stamped “88” and one “96.” 3. Remove natural gas orifice spuds using a 7mm combination wrench. 4.
  • Page 14: Natural Gas Conversion

    Natural Gas Conversion WARNING Tip Over Hazard A child or adult can tip the range and be killed. Connect anti-tip bracket to rear range foot. Reconnect the anti-tip bracket, if the range is moved. Failure to follow these instructions can result in death or serious burns to children and adults.
  • Page 15: Complete Conversion

    4. Install natural gas orifice spuds. NOTE: Depending on model, the range cooktop may be equipped with 4 standard burners or 3 standard burners and 1 power burner. Spud size/location remain the same. Std burner 149 Power burner 165 A. Spud B.
  • Page 16 W10130752A Printed in Mexico ©2007 Whirlpool Corporation 03/2007 All rights reserved.
