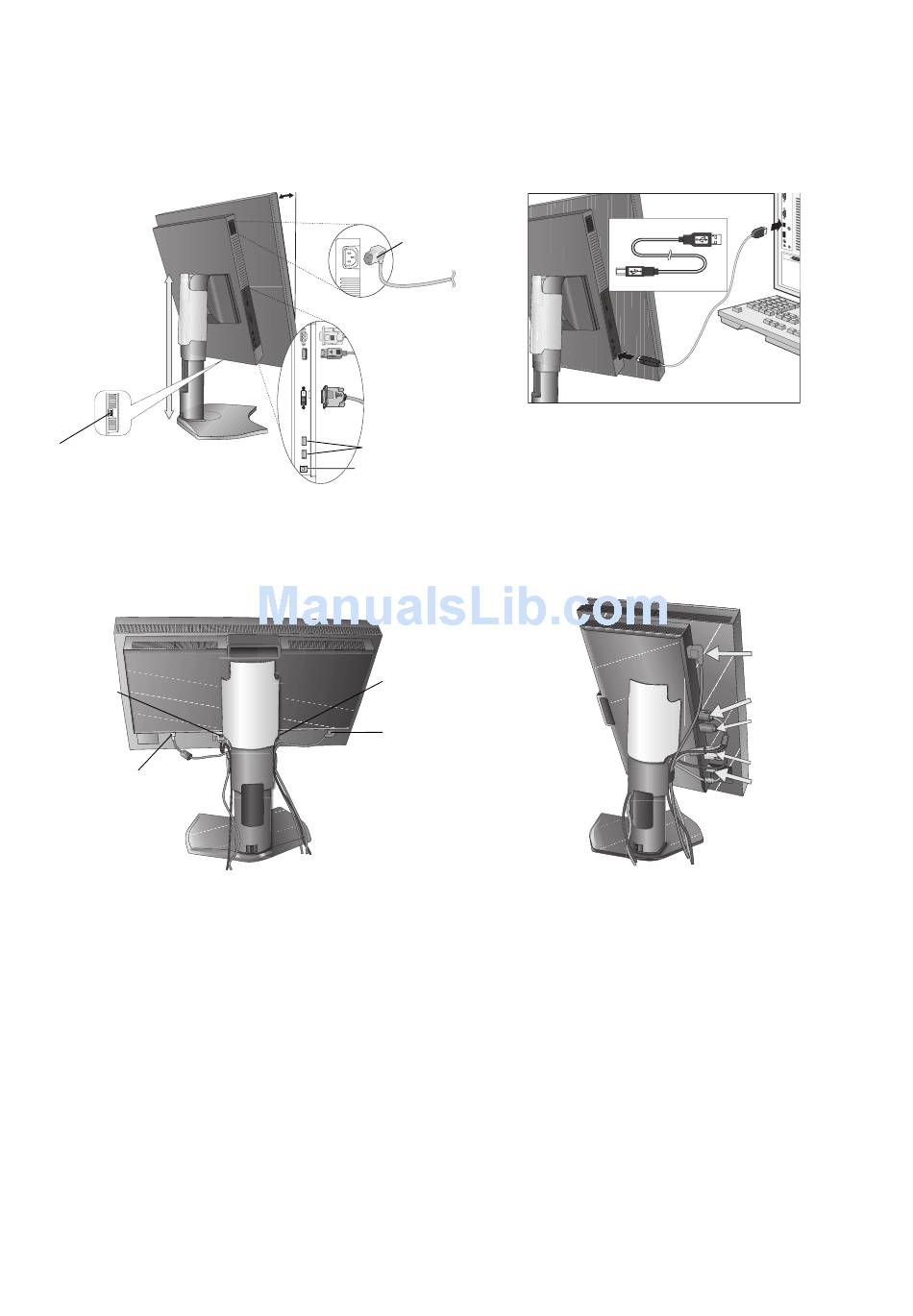

4. Connect all cables to the appropriate connectors (Figure C.1). When using the USB cable, connect the B type connector
to the USB upstream port on the right back side of the monitor and the A type connector to the downstream port on the
computer (Figure C.1a). If using the cord from a USB device, plug into one of the downstream ports of the monitor.
NOTE:
Incorrect cable connections may result in irregular operation, damage display quality/components of LCD module
and/or shorten the module's life.
For re-calibration and display management, the USB cable shipped with the display must be connected with a USB
port of the computer as well.
Highest
Stand
Position
USB downstream
Figure C.1
5. To keep the cables neatly organized, place them into the cable management system that is built into the stand.
Place the cables in the hooks fi rmly and evenly (Figure C.2 and Figure C.3).
6. Please check that you can still rotate, raise and lower the monitor screen when you have installed the cables.
DVI Cable
USB Cable
Figure C.2
*
1
: Cable not included.
30° Tilt
Power cord
D-SUB
DisplayPort
DVI-D
USB downstream
USB upstream
D-SUB Cable*
Power Cord
English-8
B Type
B Type
B Type
Figure C.1a
1
Figure C.3
A Type
A Type
Power Cord
1
D-SUB Cable*
DisplayPort Cable
DVI Cable
USB Cable
