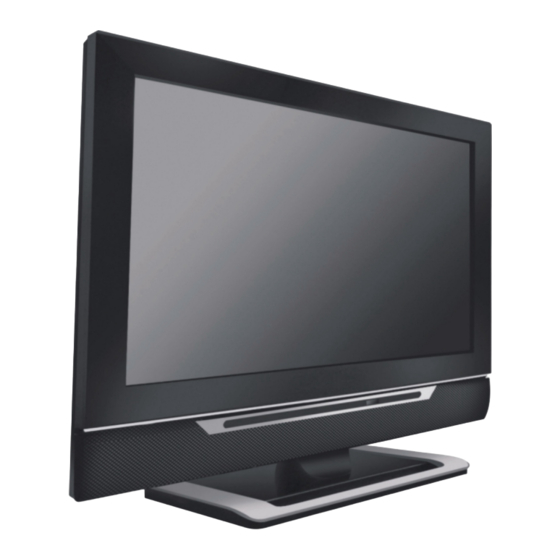

- Page 1 LCHD2040 20 LCD TV U S E R M A N U A L IMPORTANT! WARRANTY INFORMATION INSIDE. PLEASE READ WWW.TEAC.COM.AU IES060215 Part No:...
- Page 2 *Your nearest Authorised TEAC Service Centre is listed in your Owners Manual In the event that this unit or any defective parts must be returned to TEAC Service Centres, a copy of this warranty certificate and of your purchase receipt must be enclosed to be a valid warranty. Such equipment or parts must be sent freight prepaid to the nearest authorised TEAC Service Centre.
- Page 3 Dealer’s Address Postcode Please ensure that your product is packed appropriately upon return to the service centre. If you have any other queries regarding service or warranty please contact the TEAC National Service Centre below: service@teac.com.au www.teac.com.au 1800 656 700...
-
Page 4: Table Of Contents
Welcome to the perfect view of TEAC LCD TV Dear customer, Thank you for buying this TEAC product. Please read through these operating instructions so you know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. - Page 5 TEAC will not be held responsible for accident or damage caused by the use of parts and accessories manufactured by other companies. To avoid malfunction and overheating, make sure that the vents on the main unit are not blocked when installing to ensure proper heat emission: Distance the unit slightly from other equipment.
-
Page 6: Important Safeguards
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the CAUTION presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficie nt magnitude to constitute a risk of electric shock. CAUTION: TO REDUCE THE RISK OF ELEC- TRIC SHOCK, DO NOT REMOVE COVER(OR BACK).NO USER-... -
Page 7: Osd Language Settings
OSD language settings If this is the first time you switch on the LCD TV, the OPTION menu will be displayed on Option the screen as shown on the right. OSD language English VCR Mode 1.Press the button to select the OSD Reset Menu Auto Search language. -
Page 8: Brief Operating Instructions
Brief Operating Instructions 1.Connection Connect the antenna lead or CATV cable or external equipments(such as Antenna, Cable TV, VCD, DVD, VCR, Set top box, etc) to the corresponding terminals or interface on the TV rear(please refer to the owner s manual of the equipment to be connected as well) and confirm that the signal source is available and works normally. -
Page 9: Signal Source Selection
3.Switching on/off 1) Connect the main AC power outlet and turns on the power switch, the power indicator should light up in red. By pressing the standby power button at the side of the LCD TV or from the remote control will turn on the LCD TV, and the power indicator LED will light up in blue. -
Page 10: Learning About Your New Tv
Learning about your new TV Learning about your new TV You can operate your TV by using the buttons on the front panel or the remote control. The terminals on the side and the rear panel provide all the connections you will need to connect other equipment to your TV. Side Controls / Connections Rear Connections... -
Page 11: Selecting A Location For The Tv
Learning about your new TV Channel down / cursor down Remote control sensor AV outputs Headphone jack PC VGA input Channel up / cursor up Volume down / cursor left CATV antenna input POWER Plug Video/S-Video audio input POWER switch Volume up / cursor right Source select S-Video input... -
Page 12: Connecting To A Personal Computer Or Notebook
Connecting your TV NOTE: 1) Headphones are not included. 2) No sound will be heard from the main unit speakers when a headphone mini-plug is connected Headphone into the headphone jack. Connecting to a Personal Computer or Notebook You can use your TV as a monitor for your PC or Notebook by connecting through the PC IN (VGA) connection jack. -
Page 13: Using The Remote Control
Using the remote control Preparing the remote control for use Installing the remote control batteries 1. Open the battery cover on the back of the remote control. 2. Insert two AAA size(1.5V) batteries (included). Match the + and - signs inside the batteries to the signs on the battery compartment. -
Page 14: Shortcut Keys Operation
Shortcut keys operation Connecting POWER Notes: 1) C onnect the supplied AC power cord to this socket and to the wall outlet. 2) Always turn off the AC power switch or remove the AC power plug from the outlet when not using For a long period of time. -
Page 15: Adjusting Volume
Shortcut keys operation Adjusting volume Press VOL- or VOL+ on the remote control or on the TV to decrease or increase the volume. The segment of the indicator will increase or decrease. Muting the sound Press the MUTE button on the remote control to temporary mute the sound, press again to restore sound. The mute function is automatically turned off when any of the following buttons are pressed: POWER, VOL+. -
Page 16: Menu Operation
Shortcut keys operation Selecting the picture mode You can select the picture mode instantly from among three preset P.MODE modes and one user-set mode. Press the P.MODE button on the remote Normal control repeatedly to select the desired picture mode. User Soft Bright... -
Page 17: Using The Audio Settings Menu
Menu operation Using the Audio Settings menu Adjust audio settings Adjust audio settings Adjust audio settings Audio Settings 1) Press the MENU button to enter the main menu. Treble Bass Audio Settings. 2) Press the button to highlight and select the item Balance HeadPhone 3) Press the... -
Page 18: Using The Geometry Menu
Menu operation Using the Geometry menu Geometry 1) Press the MENU button to enter the main menu. button to highlight and select the item Geometry. 2) Press the 3) Press the button to highlight and select the item you want to adjust. 4) Press the button to change the value. -
Page 19: Using The Search Menu
Menu operation Option 1) Press the MENU button to enter the main menu. button to highlight and select the item General Settings. 2) Press the Option button to highlight and select item Option. 3) Press the OSD language English button to enter the Option menu. 4) Press the Reset Menu VCR Mode... - Page 20 Menu operation Auto Search 1) Press the MENU button to enter the main menu. Search. 2) Press the button to highlight and select the item button to highlight and select Auto Search. 3) Press the Auto Search 48 MH 4) Press the button to start auto search.
-
Page 21: Appendix
Appendix Cleaning and care WARNING: TV sets use high voltage. Do not try to remove the cabinet back. Refer servicing to qualified service technicians. To clean the TV screen: 1) Please make sure that the main AC power is turn off and unplug from the main AC power outlet to avoid possible shock hazard. -
Page 22: Troubleshooting
Appendix Troubleshooting Before calling a service technician, please check the following table for a possible cause of the problem and some solutions. Solution Problem Make sure the power cord is plugged in, then press POWER. TV will not turn on The remote control batteries may be dead. -
Page 23: Specifications
Specifications 20 INCHES TFT LCD LCD panel Multi- standard(PAL) Television system VHF-L: 1A-S8 Channel coverage VHF-H: S9-S38 UHF: S39-C57 (640X480,800X600,1024X768,1280X768)/ 60Hz Analog RGB mode 480I/60Hz, 480P/60Hz, 576I/50Hz, 576P/50Hz,720P/60Hz mode 1366X768 Resolution 800:1 Contrast 450cd/m Brightness 170 (H)/170 (V) Viewing angles English/Chinese OSD language Power source... - Page 24 Between Monday to Friday – EST 9AM to 5PM TEAC CORPORATION 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan Phone: (0422) 52-5081 TEAC AUSTRALIA PTY.,LTD. A.B.N.: 11 113 998 048 HEAD OFFICE 30 Tullamarine Park Road, Tullamarine, VIC 3043 Phone : (03)8336 6500...
