Summary of Contents for Teac HISENSE LCD2663AU

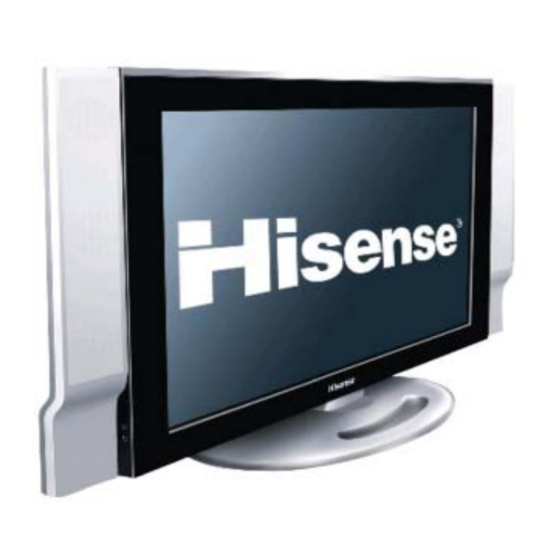

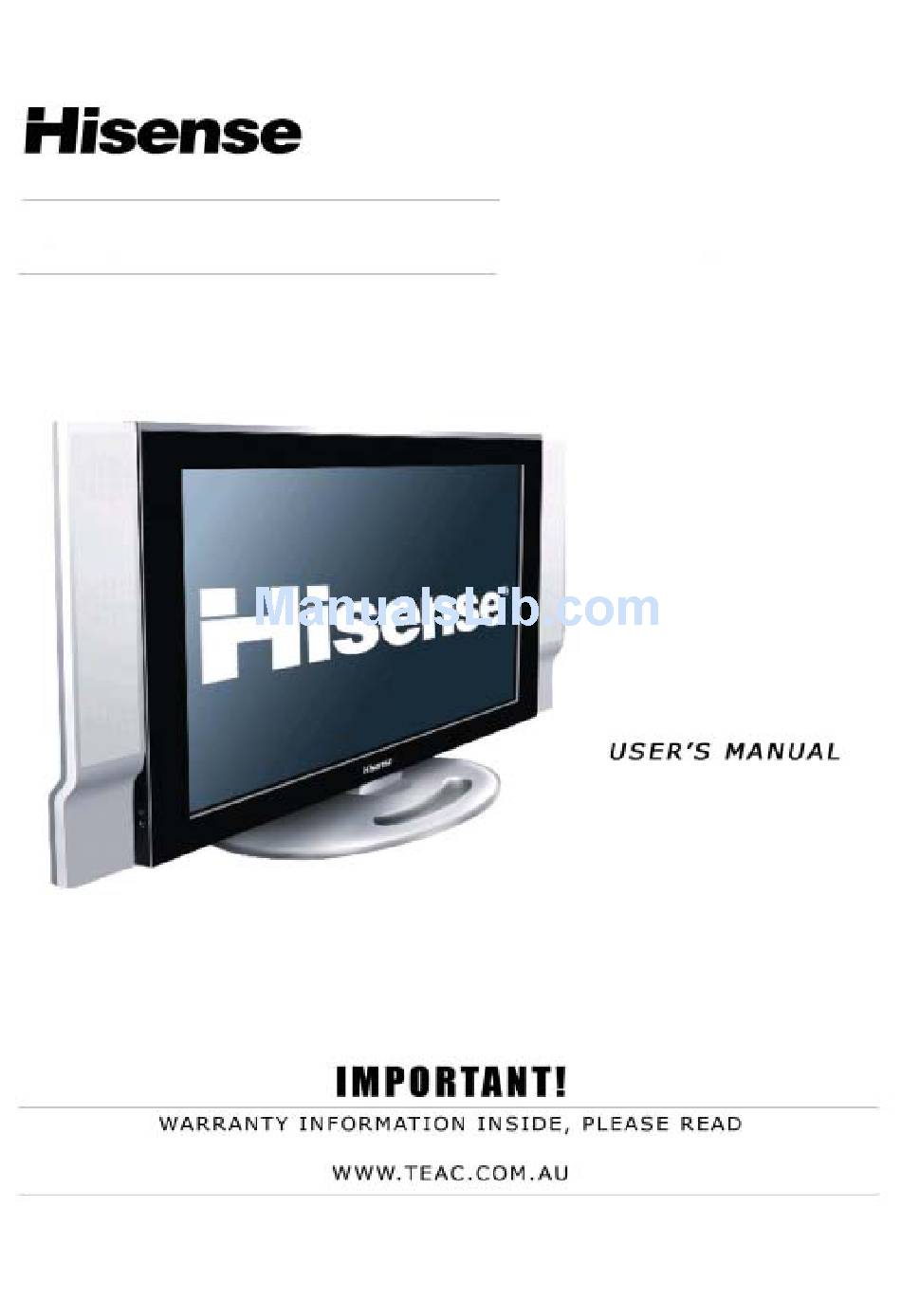

- Page 1 LCD2663AU 66 cm LCD WIDESCREEN TELEVISION Part No: IES050829...
- Page 2 *Your nearest Authorised TEAC Service Centre is listed in your Owners Manual In the event that this unit or any defective parts must be returned to TEAC Service Centres, a copy of this warranty certificate and of your purchase receipt must be enclosed to be a valid warranty. Such equipment or parts must be sent freight prepaid to the nearest authorised TEAC Service Centre.
- Page 3 Dealer’ s Name Dealer’ s Address Postcode Please ensure that your product is packed appropriately upon return to the service centre. If you have any other queries regarding service or warranty please contact the TEAC Service Centre in your State. info@teac.com.au www.teac.com.au...
-
Page 4: Table Of Contents
Innovation is life WELCOME TO THE PERFECT VIEW WORLD OF HISENSE LCD TV Dear customer, Thank you for choosing this LCD Colour TV. We expect our product and service will comfort you for long. This manual is to guide you to set up and operate your TV as quickly as possible. Please read all the safety and operation instructions carefully before you begin and then follow what the handbook tells. -
Page 5: Important Safeguard
IMPORTANT SAFEGUARD WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. FIRE AND SHOCK PRECAUTIONS Adequate ventilation must be provided to prevent heat build up inside unit. Keep the inside of unit free from foreign objects, such as hairpins, nails, paper, etc. -
Page 6: Installation Guidelines
Important User Guidance Information In order to obtain maximum enjoyment from this HISENSE LCD Display System, please first read this information carefully. With the HISENSE LCD, you can be assured of a high quality LCD Display System with long-life and high reliability. To achieve images of exceptional quality, this HISENSE LCD Display System incorporates state-of-the-art design and construction, as well as very precise and highly advanced technology. -
Page 7: Preparation For Your New Tv
Preparation for using your new TV Selecting a location for the TV 1)Place TV on the floor or on a sturdy platform in a location where light does not directly hit the screen. 2)Place TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause overheating, which may damage the TV. -
Page 8: Connecting To A/V Equipments
Preparation for using your new TV MENU button S-Video input Component audio input Source select AV input Wall mounting locating hole Volume down / cursor left AV output PC audio input 21 21 Volume up / cursor right Headphone output AC Power switch Channel down / cursor down RS232C input... -
Page 9: Connecting To A Computer
Preparation for using your new TV Connecting to a computer You can use your TV as a monitor/speakers for your computer by connecting through its 15pin standard RGB interface and PC audio interface. Connect the devices as shown below. PC/NB RGB line PC AUDIO S-VIDEO... -
Page 10: Using The Remote Control
Innovation is life Using the remote control Preparing the remote control for use Installing the remote control batteries 1. Open the battery cover on the back of the remote control. 2. Install two AAA size(1.5V) batteries. Match the + and - signs on the batteries to the signs on the battery compartment. -
Page 11: Learning About The Remote Control
Innovation is life Using the remote control Learning about the remote control Video : Switch to Video mode Power Power on/off S-Video S-VIDEO mode VGA/DVI mode YCbCr Not used Component mode Channel Number Direct channel selection Not used Recall Return to previous channel Display Display current input : Channel up... -
Page 12: Using The Tv Features
Using the TV features Understanding the TV features Multimedia - TV receiver, Video monitor and PC display, all in one. Wider viewing angle, 16:9 display - 176 viewing angle at typical value Digital display device - truthfully reproducing the images, without distortion or blurring, irrespective of magnetic or geomagnetic effect. - Page 13 Using the TV features Select channels by numbers To select a channel : Press the channel numbers in series to select channel directly. For example, to seclect channel 120, Press the button 1, and 1_ _ will display on the top right corner of the screen, then press the button 2, 12_ will display, press the button zero, you can enjoy the program of channel 120.
-
Page 14: Using The Channel Menu
Using the TV features Using the CHANNEL menu PROGRAM CHANNEL 1) Press [MENU] button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item CHANNEL. 3) Press [CH+ or CH-] button to select PROGRAM. 4) Press [VOL+ or VOL-] button to select the channel. -
Page 15: Using The Picture Menu
Using the TV features Using the PICTURE menu PROGRAM Adjust picture settings PICTURE PARAMETERS 1) Press [MENU] button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item PICTURE. BRIGHTNESS PARAMETERS. CONTRAST 3) Press [CH+ or CH-] button to select the item you want to adjust. -
Page 16: Using The Menu Lock Setting Menu
Using the TV features Using the MENU LOCK SETTINGS menu LOCK MENU MENU LOCK SETTINGS 1) Press [MENU] button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item MENU LOCK SETTINGS. 3) Press [CH+ or CH-] button to select LOCK MENU. -
Page 17: Using The General Setting Menu
Using the TV features Using the GENERAL SETTINGS menu OSD POSITION GENERAL SETTINGS 1) Press [MENU] button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item GENERAL LANGUAGE ENGLISH SETTINGS. 3) Press [CH+ or CH-] button to select OSD POSITION. -
Page 18: Using The Pc Menu
Innovation is life Using the TV features Using the GENERAL SETTINGS menu DEINTERLACER 1) Press MENU button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item GENERAL SETTINGS. 3) Press [CH+ or CH-] button to select DEINTERLACER. 4) Press [ VOL+ ] button to enter the DEINTERLACER. -
Page 19: Appendix
Appendix Appendix Cleaning and care WARNING: Do not try to remove the cabinet back. Refer servicing to qualified service technicians. To clean the TV screen: 1) Unplug the main AC power form the TV to avoid possible shock hazard. 2) Use a clean cellulose sponge or chamois cloth warm dampened with a solution of mild detergent to clean the TV screen and trim. -
Page 20: Specifications
Specifications 26-inch (66Cm) TFT LCD TV Screen Size: Native resolution 1280 x 768 Pixels Brightness: 450 Cd/m2 Contrast ratio: 500:1 Colour System: PAL/SECAM Receiving System: PAL B/G, D/K, I, L/L Tuner: VHF/UHF: 48.25~ 863.25MHz ANTENA: 75Ω VHF/ UHF input STEREO: NICAM/ A2 VIDEO INPUT: INPUT-1 (AV Composite Video) - Page 21 TEAC CORPORATION 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan Phone: (0422) 52-5081 TEAC AUSTRALIA PTY.,LTD. A.B.N.: 11 113 998 048 HEAD OFFICE 30 Tullamarine Park Road, Tullamarine, VIC 3043 Phone : (03)8336 6500 SERVICE DIVISION MELBOURNE, VIC 30 Tullamarine Park Road, Tullamarine, VIC 3043...
