4. General view

This section shows main parts of Waspmote Plug & Sense! and a brief description of each one. In later sections all parts will be
described deeply.

4.1. Specifications

Material: polycarbonate
•
Sealing: polyurethane
•
Cover screws: stainless steel
•
Ingress protection: IP65
•
Impact resistance: IK08
•
Rated insulation voltage AC: 690 V
•
• Rated insulation voltage DC: 1000 V
• Heavy metals-free: Yes
• Weatherproof: true - nach UL 746 C
• Ambient temperature (min.): -10 °C
Ambient temperature (max.): 50 °C
•
Approximated weight: 800 g
•
In the pictures included below it is shown a general view of Waspmote Plug & Sense! main parts. Some elements are dedicated
to node control, others are designated to sensor connection and other parts are just identification elements. All of them will be
described along this guide.

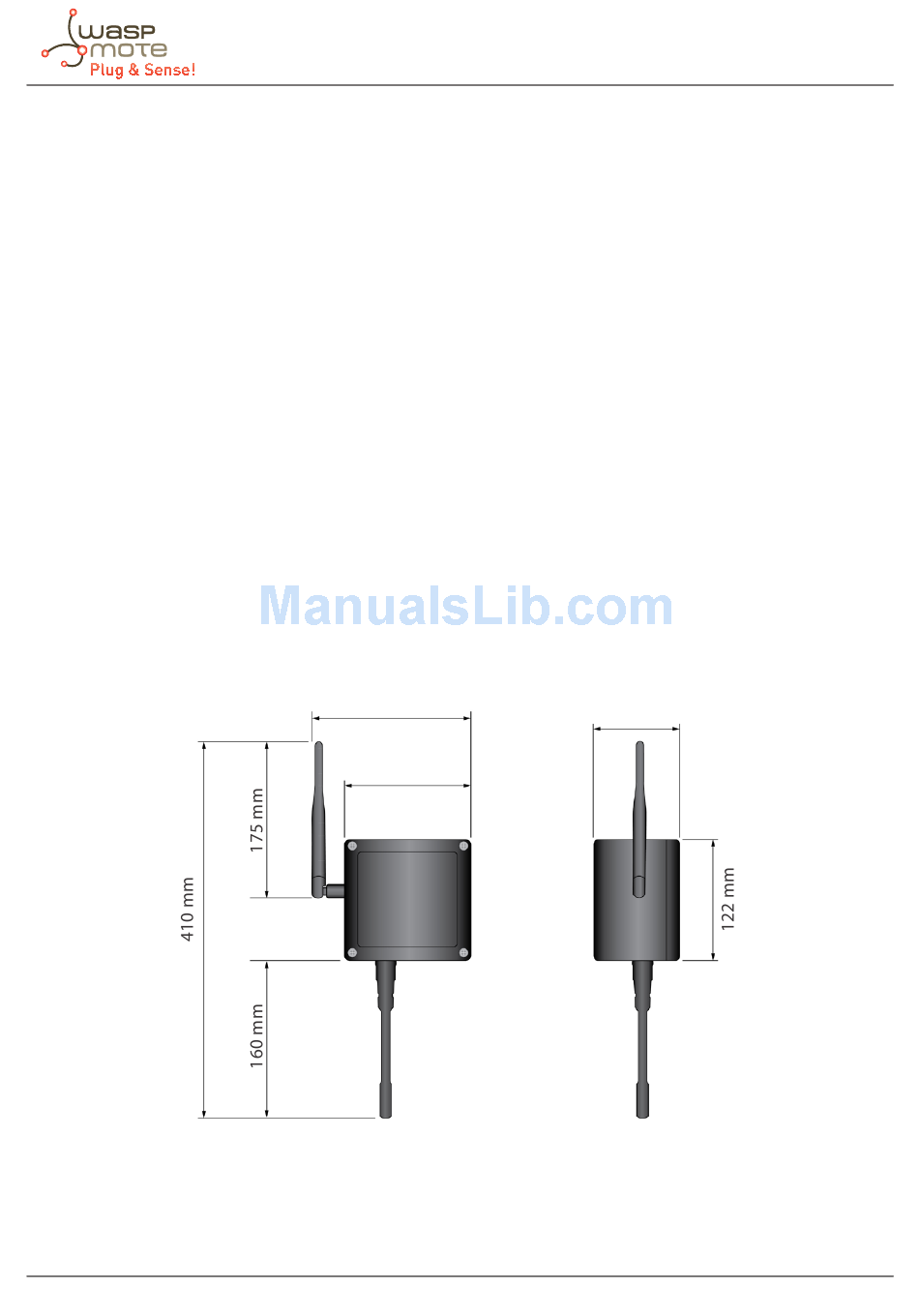

Figure : Main view of Waspmote Plug & Sense!
164 mm
124 mm
