Sensor
Socket
A
B
C
D
E
F
Figure : Sensor sockets configuration for Smart Security model

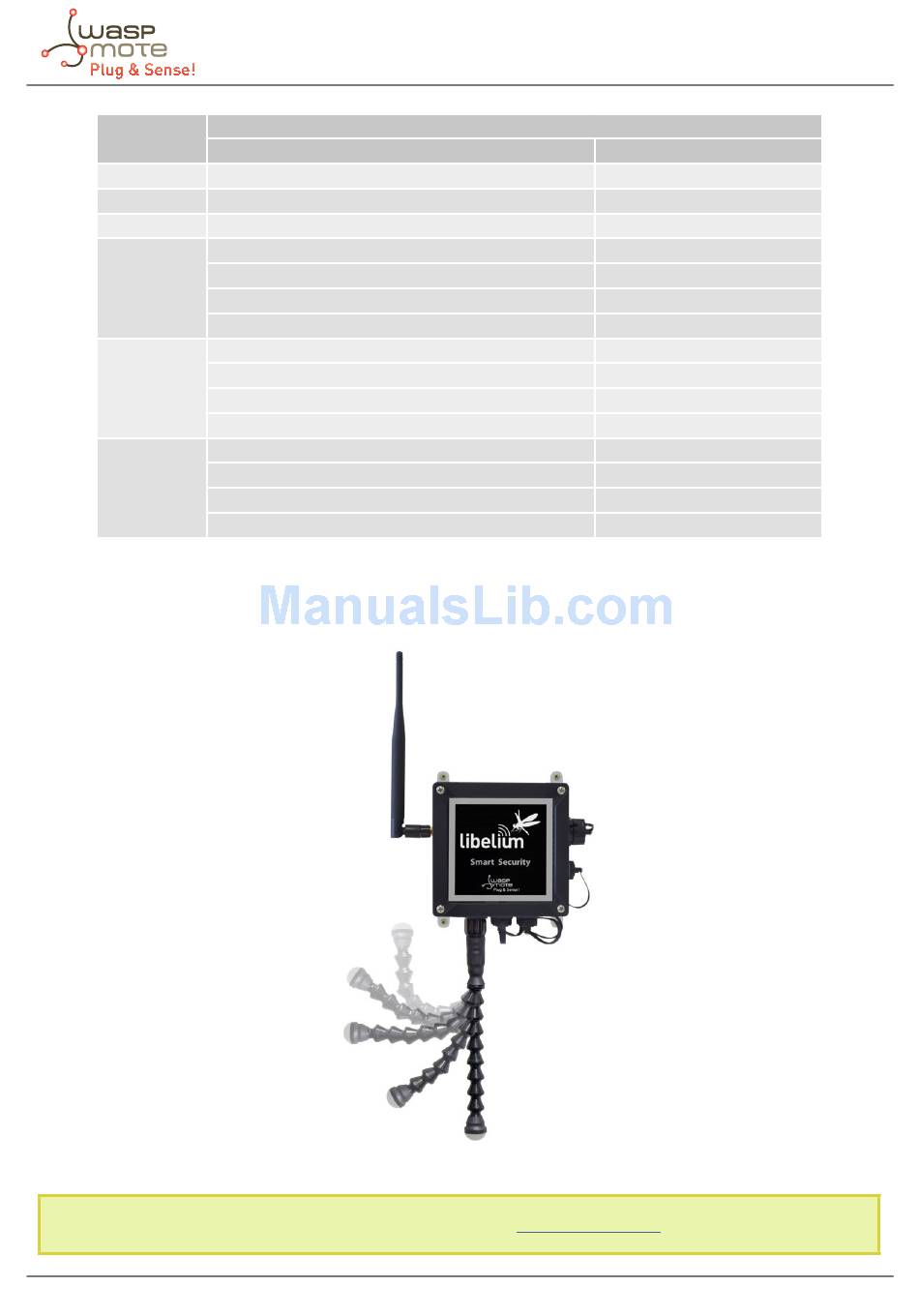

As we see in the figure below, thanks to the directionable probe, the presence sensor probe (PIR) may be placed in different
positions. The sensor can be focused directly to the point we want.
Figure : Configurations of the Presence sensor probe (PIR)
Note: For more technical information about each sensor probe go to the
Sensor probes allowed for each sensor socket
Parameter
Temperature + Humidity (Sensirion)
Liquid flow
Presence - PIR
Luminosity (LDR)
Liquid level
Liquid presence
Hall effect
Luminosity (LDR)
Liquid level
Liquid presence
Hall effect
Luminosity (LDR)
Liquid level
Liquid presence
Hall effect
Reference
9247
9296, 9297, 9298
9212
9205
9239, 9240, 9242
9243, 9295
9207
9205
9239, 9240, 9242
9243
9207
9205
9239, 9240, 9242
9243
9207
