Sensor probes

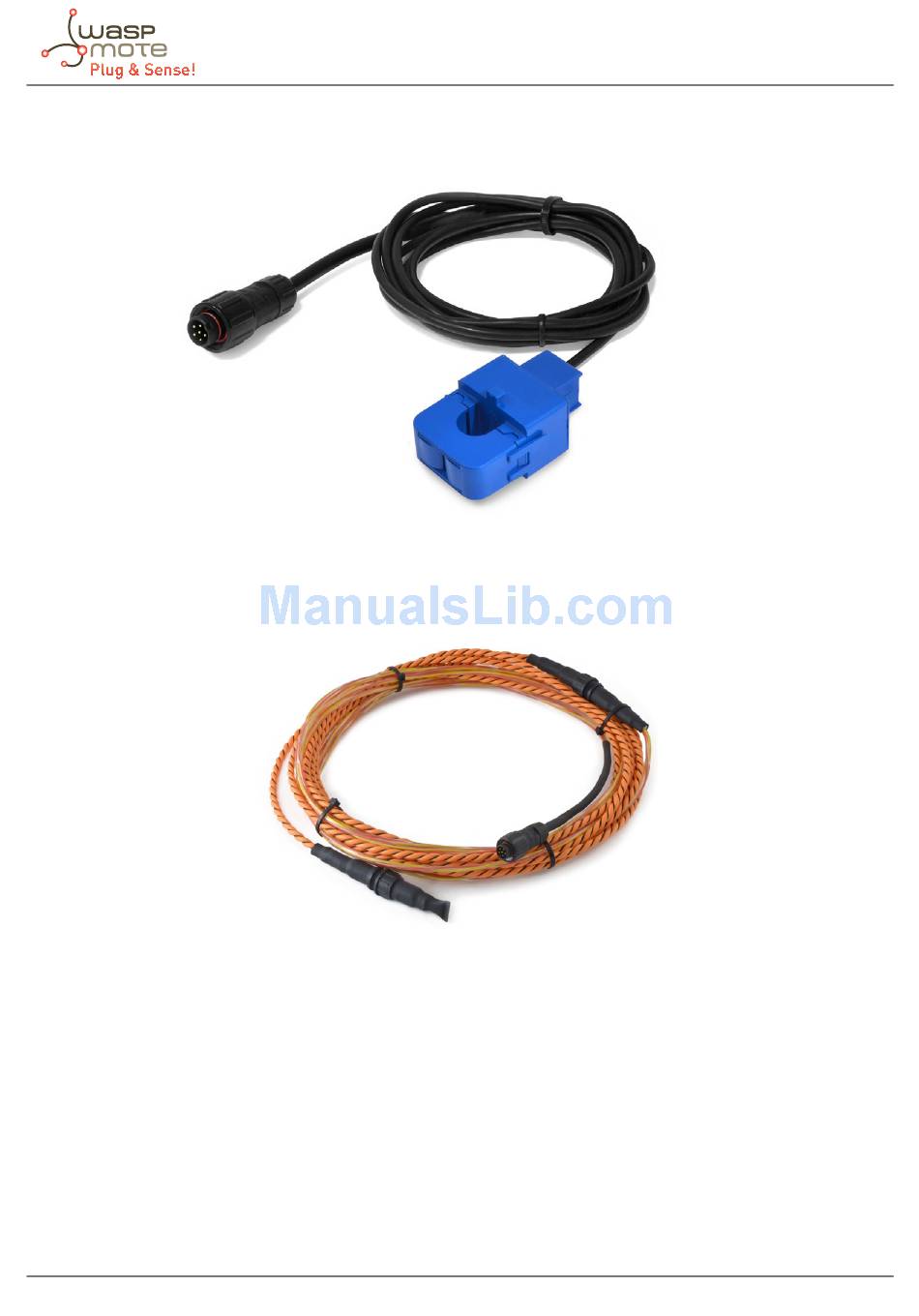

Current sensor probe
This probe is designed to measure the current which goes through a cable.
Figure : Current sensor probe
Liquid Presence probe (line)
This probe is designed to allow placing the sensor near its application.
Figure : Liquid Presence probe (line)
-23-
v5.8
