Wiring and Connections
Wiring Diagram

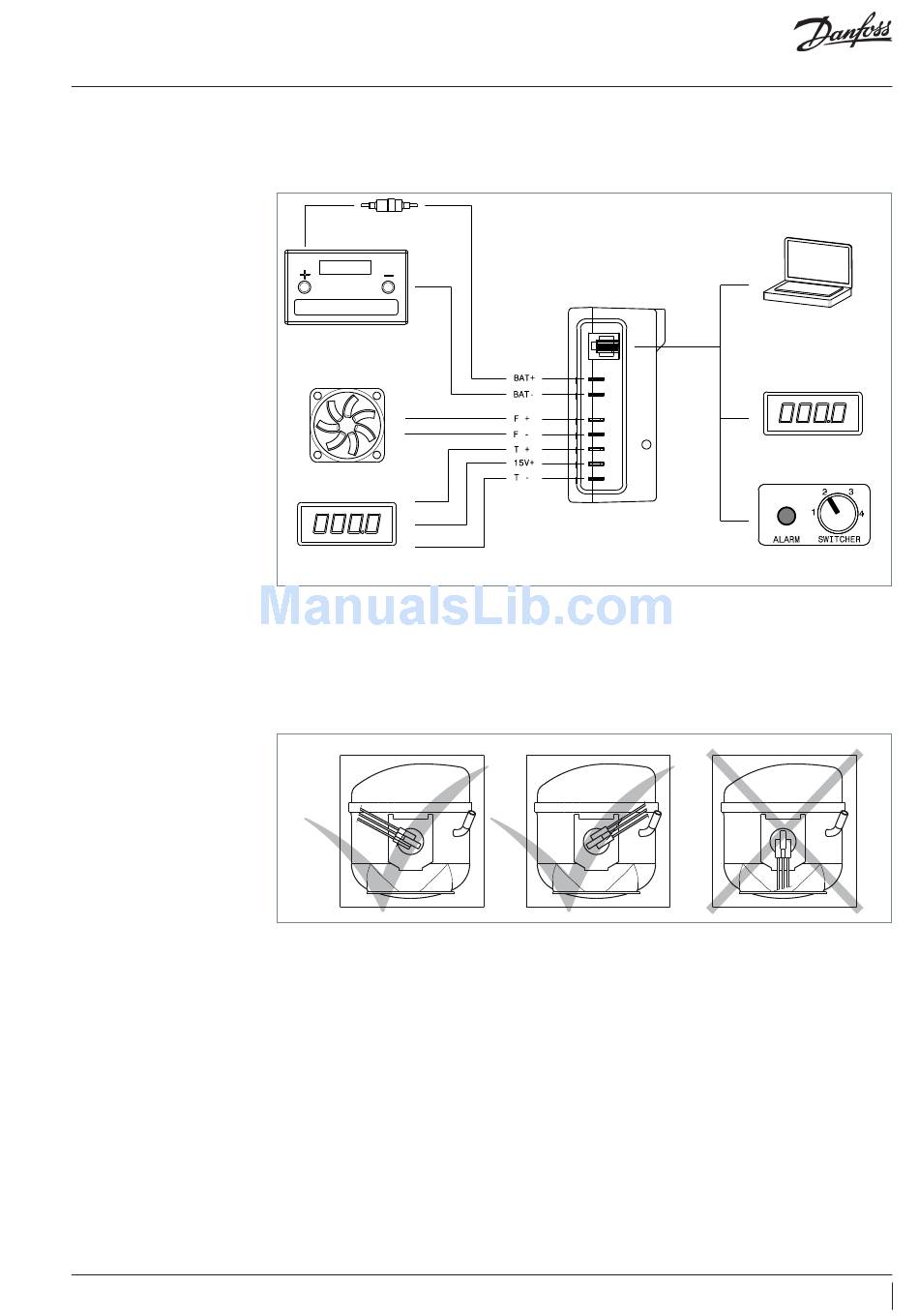

Fig 1. FDC1 Wiring
scheme
Fig 2. Connection of the
FDC's electronic driver to

the compressor

The FDC1 electronic driver features a terminal
board where all connections are made. The
terminal lay out is described in Figure 1:
FUSE
12÷42V
BATTERY
FAN
THERMOSTAT
ELECTROMECHANICAL
OR ELECTRONIC
NO RESISTOR IS NEEDED TO BE INSTALLED IN
FDC1 ELECTRONIC DRIVER
When connecting the electronic driver to the
compressor, any position of the connector
is possible under an electrical point of view.
FDC1/FDC3
ELECTRONIC DRIVER
SPI
However, in practice, the vertical position is not
possible because the electronic box cannot be
assembled. The connector should be rotated 120°
clockwise or counter clockwise with respect to
the vertical position as shown below.
PC
ELECTRONIC INTEGRAL MANAGER
CONTROL PANEL
