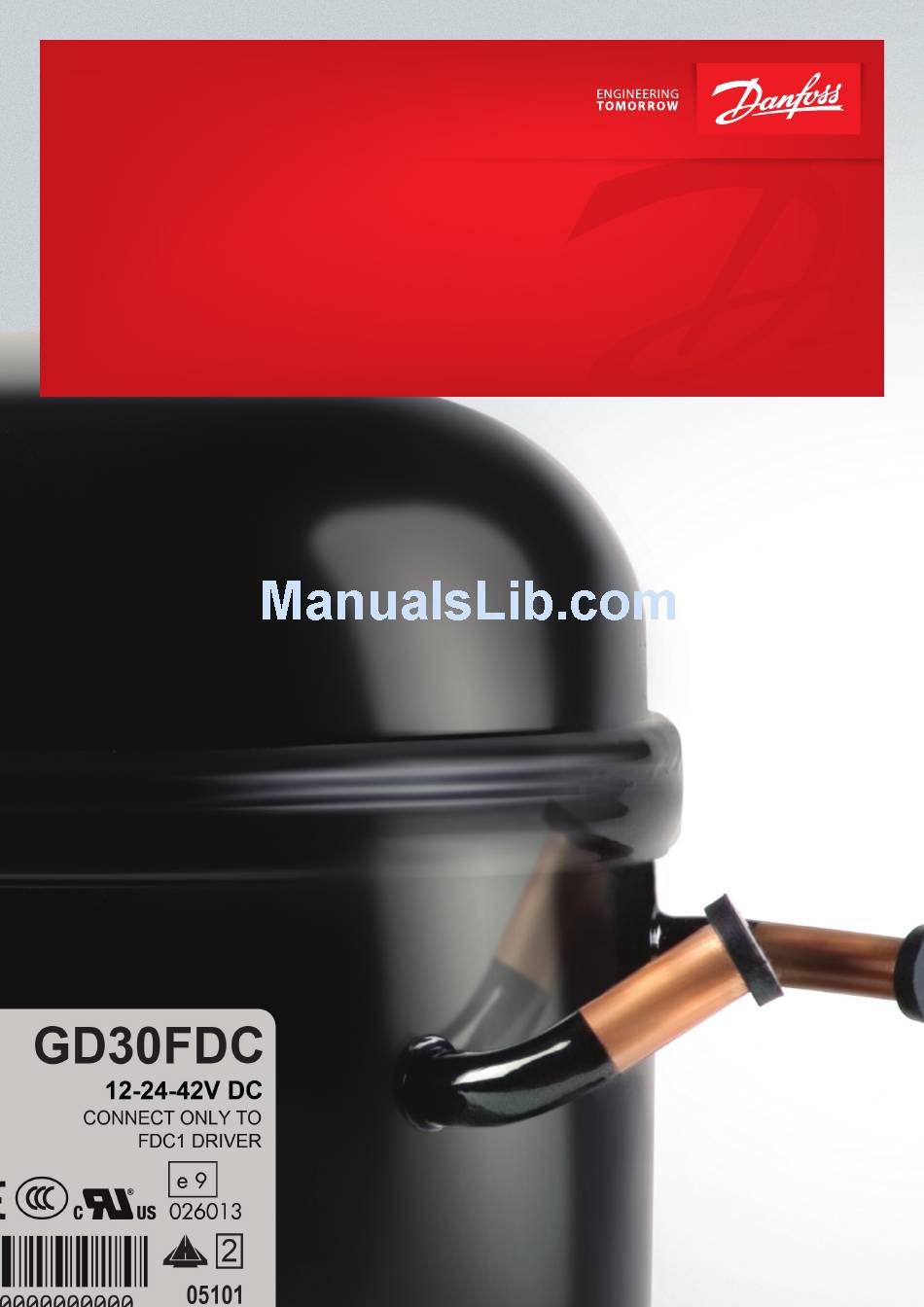

- Page 1 Installation guide Danfoss Light Commercial Refrigeration Compressors GD30FDC Electronic driver connection manual, 12-42V, Direct Current - R134a lightcommercialrefrigeration.danfoss.com...
-
Page 3: Table Of Contents
Content Wiring and Connections ......................4 Setting up the speed ......................6 Operating voltage ........................8 Battery protection system ....................9 Protections and alarms ......................10 FRCC.PI.045.A1.02... -
Page 4: Wiring And Connections
Wiring and Connections General rules GD30FDC must always be powered through The unit is protected against damage caused by the dedicated electronic driver FDC1, which wrong polarity of the supply. The compressor will is supplied with the compressor as a separate not run correctly if it’s wrongly connected. -
Page 5: The Compressor
Wiring and Connections Wiring Diagram The FDC1 electronic driver features a terminal board where all connections are made. The terminal lay out is described in Figure 1: Fig 1. FDC1 Wiring scheme FUSE FDC1/FDC3 12÷42V ELECTRONIC DRIVER BATTERY ELECTRONIC INTEGRAL MANAGER THERMOSTAT CONTROL PANEL ELECTROMECHANICAL... -
Page 6: Setting Up The Speed
2. If speed S is known and a FDC programming S = S for BD80F kit is available, set up GD30FDC compressor speed by programming the following speed: 3. Otherwise, set up GD30FDC compressor speed according to Table 4. Table 4. Type of... - Page 7 · S / 3 ( D in cm3) on the type of appliance and its net volume. and set up GD30FDC speed by programming (if FDC programming kit is available) or by selecting a proper connector according to Table 2. FRCC.PI.045.A1.02...
-
Page 8: Operating Voltage
Operating voltage GD30FDC is designed to operate in a wide range From the value of the applied voltage, the of DC voltages, supplied either by a battery or by electronic driver automatically decides the rated any other kind of filtered DC power supply. -
Page 9: Battery Protection System
Battery protection system There is a protection system for the battery 12V system: cut-out = 10.0V; cut-in = 11.5V that prevents the compressor from operating if 24V system: cut-out = 22.0V; cut-in = 24.5V the available voltage becomes too low. Battery 42V system: cut-out = 36.0V;... -
Page 10: Protections And Alarms
Protections and alarms GD30FDC is electronically protected against a • Electronic driver overheat: if the temperature number of possible dysfunctions and failures: of the electronic components of the control becomes too high, an internal sensor will stop • Battery discharge. - Page 12 Danfoss Commercial Compressors, BP 331, 01603 Trévoux Cedex, France | +334 74 00 28 29 FRCC.PI.045.A1.02 - Danfoss Light Commercial Refrigeration Compressors made by Huayi © Danfoss | DCS (CC) | 2016.03...
