VC100 ASSEMBLY PROCEDURES
Tools Required: Knife or Scissors, Hammer, 7/16" (11 mm) wrench/ratchet or an adjustable wrench,
Philips or Robertson screwdriver.

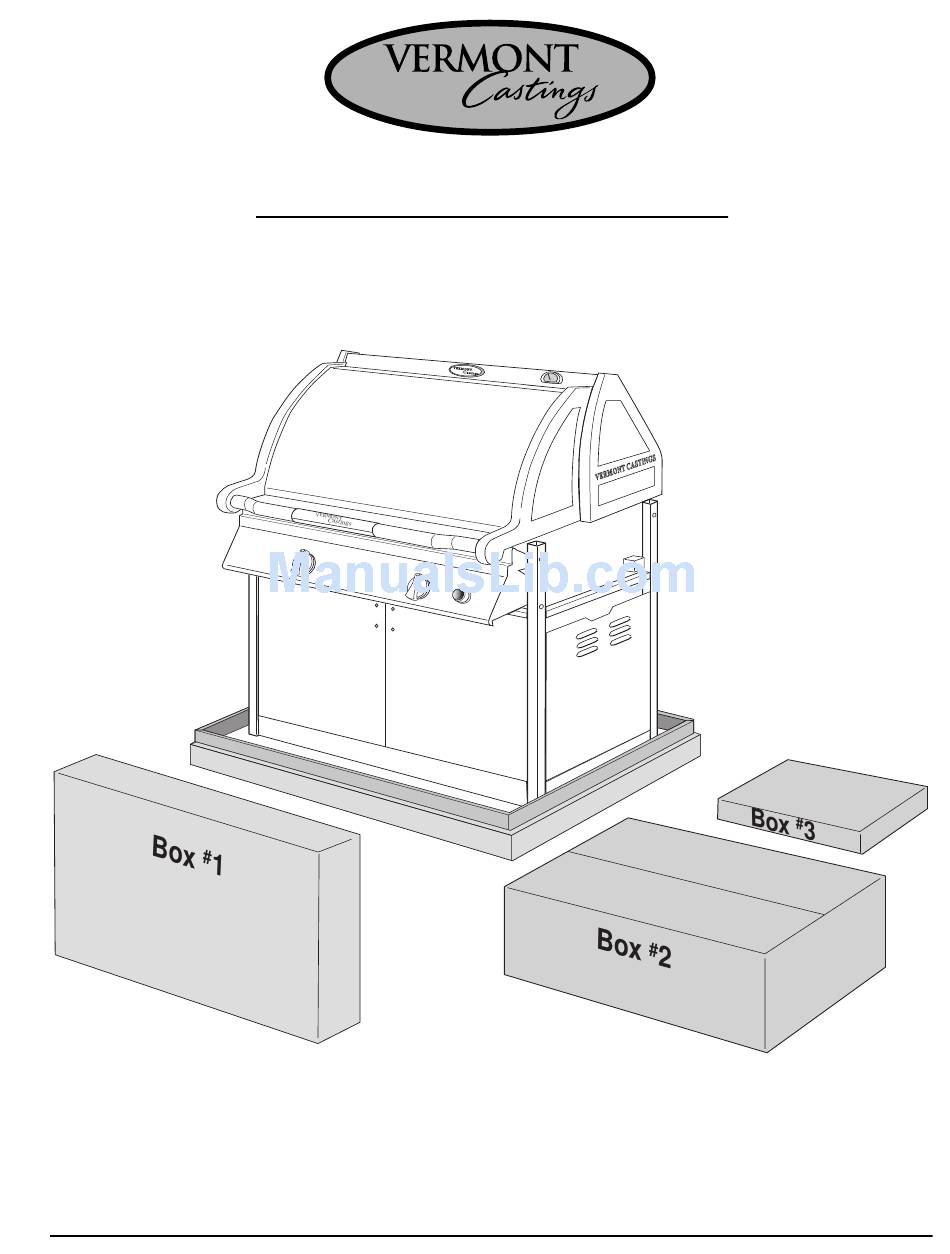

Step 1: Unpack carton
Use the knife or scissors to cut the strapping on the package then lift off the cardboard cap.
Remove the cardboard sleeve by lifting it straight over top of the barbecue. Check the 3 enclosed
parts kits, against the parts list (Appendix A) to ensure that no parts are missing.
Page 1
