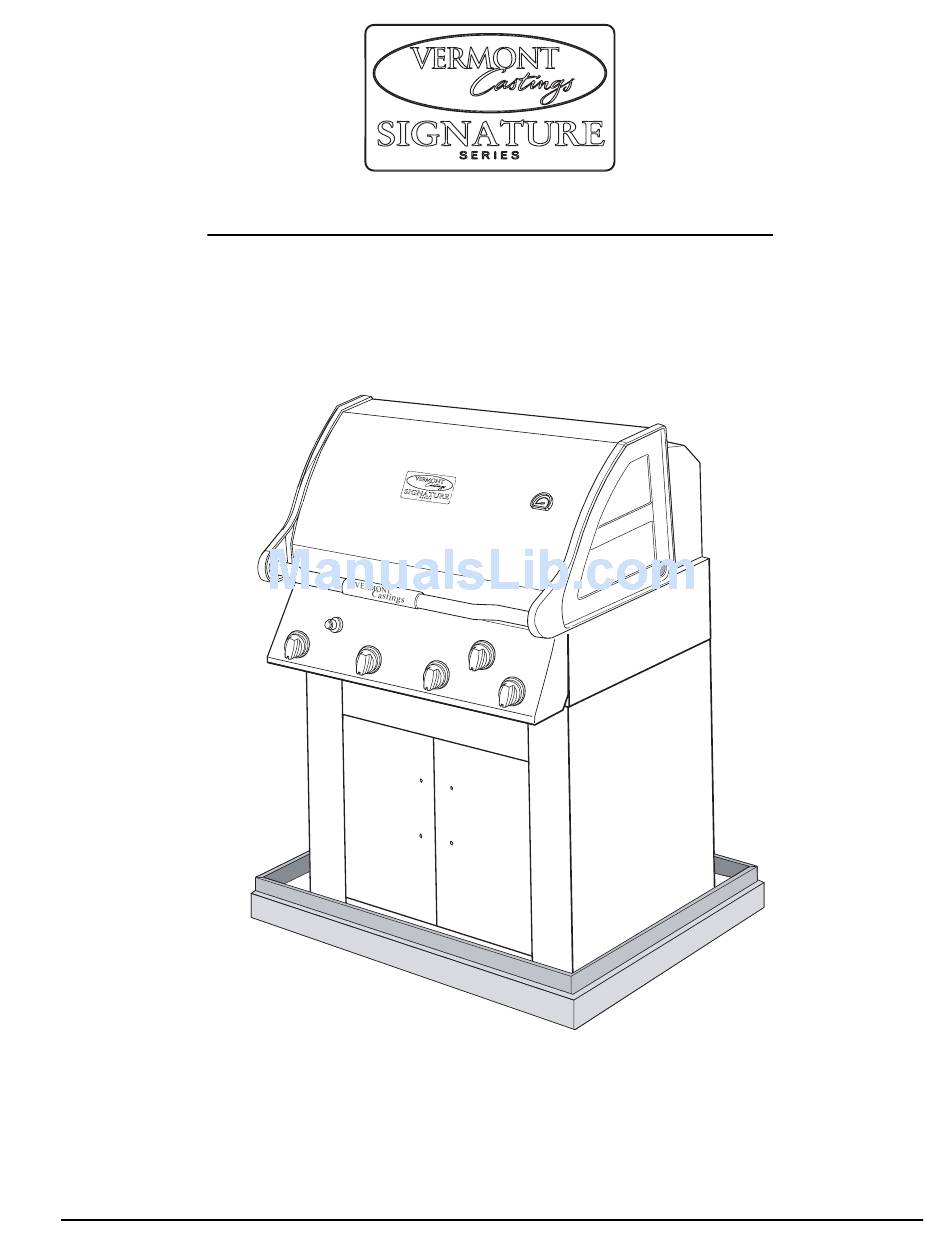

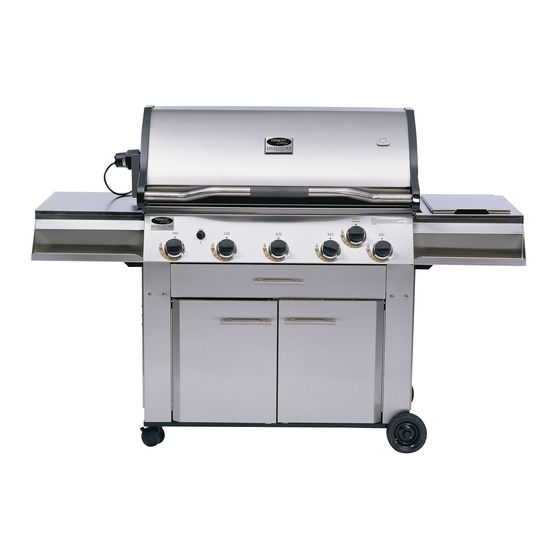

VCS4000/5000 ASSEMBLY PROCEDURES
Tools Required: Knife or scissors; hammer; Phillips or #2 Robertson (square) screwdriver

Step 1: Unpack carton.

B o x
# 4
B o x
# 1
B o x
# 3
B o x
# 2
Cut the strapping on the package, then lift off the carton cap. Remove the sleeve by lifting it straight over
the top of the Barbecue. Remove and unpack the enclosed parts boxes. Remove any protective covering
from stainless steel parts.
Page 1
50002159 2/04 Rev.0 En
