Audio Authority Cat 5 Wall Plate & Enclosed Audio/Video Receivers Comparison 9880 Specifications

Models 9878, 9879, 9880
Cat 5 High Definition Wall Plate & Enclosed Audio/Video Receivers
The Models 9878, 9879, & 9880 provide TV connection points for component video, coaxial digital audio, left/right analog
audio, and an IR receiver input. Used with a compatible Audio Authority driver, these Cat 5 to HDTV receivers maintain pristine
high-definition detail and vibrant color for outstanding audio/video at remote locations up to 1,000 feet away.
9878
9879
9880
9878 Wallplate Dual-Gang Receiver
• Durable stainless steel construction
• Shallow 1-inch mounting depth
• Cable length compensation adjustment to maintain
image and sound quality over long Cat 5 runs
• Fits in a standard US dual-gang wall box for
convenience in installation
• F-connector pass-through jack for convenient antenna
connection (requires separate coax cable run)
• Dimensions (H x W x D) 4.75" X 4.75" X 1"

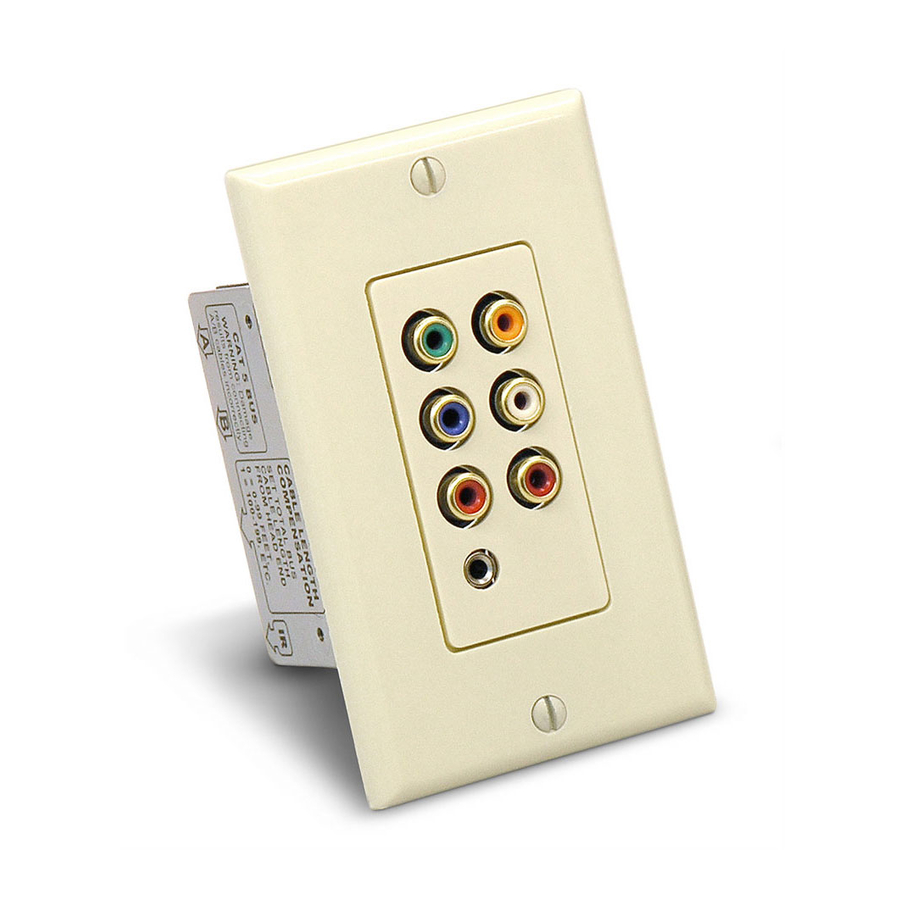

9879 Wallplate Single-Gang Receiver
• Includes Decora style inserts in white, ivory,
®
and almond (Decora trim covers not included)
• Front and rear facing IR jacks for external or
in-wall IR connections
• Fits standard U.S. single-gang wall boxes
• Cable length compensation adjustment allows
the installer to fine tune image and sound
quality over long Cat 5 runs
• Dimensions (H x W x D) 4" x 1.6" x 2.75"
(no trim cover)
9880 Enclosed Cat 5 Receiver
• Perfect for wall & ceiling-mounted displays
• Cable connections are parallel to the wall,
allowing near-flush mounting for flat panel
displays
• Can be mounted on any flat surface, even to the
back of a TV when no wall surface is available
• Enclosed design mounts without a work box
• Includes an IR jack
• Dimensions (H x W x D) 1.75" x 3.75" x 3"
Product Focus
STANDARD
SINGLE-GANG
WORK BOX
Cat 5e/6
CABLES
AUXILIARY,
REAR-FACING
IR JACK
