Page 1: Installation Manual

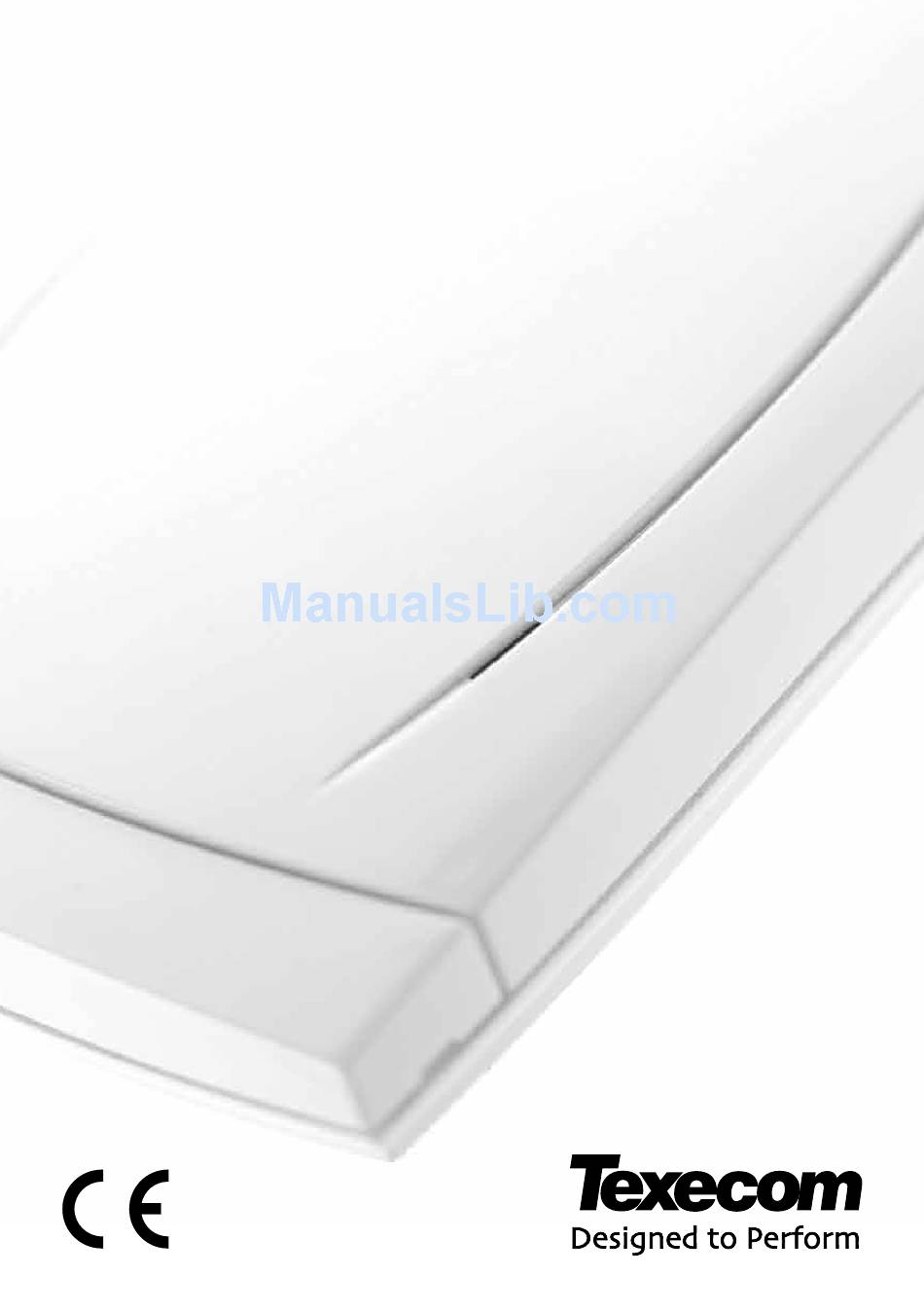

Installation Manual Premier Elite iProx INS303-3... -
Page 2: Network Mode
The maximum number of tags/users codes that can be stored is dependent on the number of users available on the control panel. Stand-alone Mode The stand-alone mode allows the Premier Elite iProx to be used as a simple door access controller. This mode provides the following facilities: •... -
Page 3: Pcb Layout
Premier Elite iProx Installation Manual PCB Layout Extension loudspeaker terminals (16 Request To Exit (RTE) input (apply 0V Ohm) to activate) Wiegand interface connections 10. Door strike relay (voltage free change- Network terminals for connection to a over contacts) control panel (Network Mode) 11. - Page 4 Premier Elite iProx Installation Manual Network Mode Installation Introduction When the iProx is used in the Network mode, it uses one of the available remote keypad address slots on the system. The maximum number of keypad address slots varies depending on the...
- Page 5 Premier Elite iProx Installation Manual Using Premier Elite Proximity Tags This configuration allows you to use the standard proximity tags that are used with the Premier & Premier Elite keypads. The tags MUST be learnt at a keypad which has a built in proximity reader.
- Page 6 Premier Elite iProx Installation Manual Using 3 Party Proximity Tags This configuration allows you to use proximity tags from other manufacturers. The proximity reader MUST be capable of providing the data in 26bit Wiegand format. The figure below shows a typical...
- Page 7 Premier Elite iProx Installation Manual Learning 3 Party Tags on the Premier Elite 24/48/88/168/640 When using 3 party tags via a Wiegand reader, the tag or card is encoded with a unique 6 digit code. This code is learnt onto the control panel and is stored separately from the user code, this allows for users to have a tag and access code with different codes.
- Page 8 Premier Elite iProx Installation Manual Using the Key Seven SA840-A20 Keypad This configuration allows you to integrate the SA840-A20 keypad manufactured by Key Seven with the Premier Elite 24/48/88/168/640 control panels. The figure below shows a typical installation: Installation Remove all power from control panel before making any connections.
- Page 9 Premier Elite iProx Installation Manual SA840-A20 Keypad Operation When the Premier iProx is installed with an SA840-A20 keypad the operation of the alarm system is as follows: • If a valid user code is entered followed by the [P] key during the exit sequence the remaining exit time is truncated and the system arms immediately.
- Page 10 Premier Elite iProx Installation Manual Stand-alone Mode Installation Introduction When the iProx is used in the Stand-alone mode, it allows the unit to be used as a simple single door access controller. The module can learn and store up to 10 proximity tags, which can be...
- Page 11 Premier Elite iProx Installation Manual Using Premier Proximity Tags This configuration allows you to use the standard proximity tags that are used with the Premier LCDP and LCDLP keypads. The figure below shows a typical installation: Installation Remove all power from power supply before making any connections.
- Page 12 Premier Elite iProx Installation Manual Learning New Premier Elite Proximity Tags When leaving the factory, the proximity tags are blank. When using this method of learning the tags, the iProx module generates a unique 6 digit code that is stored both in the module and tag. If the tag was already programmed the data will be overwritten.
- Page 13 Premier Elite iProx Installation Manual Using 3 Party Proximity Tags This configuration allows you to use proximity tags from other manufacturers. The proximity reader MUST be capable of providing the data in 26bit Wiegand format. The figure below shows a typical...
-
Page 14: Specifications
For more information see: www.recyclethis.info. RoHs Directive: 2002/95/EC RoHS Compliant. Hereby, Texecom declares that this device does not contain lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated depheny ethers (PBDE) in more than the percentage specified by EU directive 2002/95/EC, except exemptions stated in EU directive 2002/95/EC annex. -
Page 15: Warranty
As the iProx module is not a complete alarm system but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the iProx module failed to function correctly. Due to our policy of continuous improvement Texecom reserve the right to change specification without prior notice. -
Page 16: Technical Support
Texecom Limited, Bradwood Court, St. Crispin Way, Haslingden, Lancashire BB4 4PW, England. Technical Support: UK Customers Tel: 08456 300 600 (Calls charged at 3.36 pence per minute from a BT landline. Calls from other networks may vary.) International Customers Tel: +44 1706 233875 Email: techsupport@texe.com...
