Instruction Manual
Premier Elite XT-W/QD-W
BATTERY SAFETY
• Do not throw into a fire • Do not heat
• Do not short circuit • Do not charge
• Replace only with same or equivalent type(3V) • Do not disassemble
• Always observe local regulations when disposing of a battery
• Detector will transmit low battery warning when battery needs replacing
WARRANTY
2 year replacement warranty (excludes battery).
The Premier Elite XT-W/QD-W is designed to detect the movement
of an intruder and activate an alarm control panel. As the Premier Elite
XT-W/QD-W is not a complete alarm system, but only a part thereof,
Texecom cannot accept responsibility or liability for any damages whatso-
ever based on a claim that the Premier Elite XT-W/QD-W failed to function
correctly.
Due to our policy of continuous improvement Texecom reserves
the right to change specification without prior notice. All specifications
are measured at 20ºC (68ºF).
Made In
England
Cer tificate Number: FM 35285
Premier Elite and the wireless logo are trade marks of Texecom Ltd. © 2010
The Premier Elite XT-W/QD-W is protected by European Registered Design. No: 3004997
D20110109 INS466-3
INTRODUCTION
• For wireless connectivity, detailed programming
and system set-up instructions please refer to
the compatible RICOCHET™ technology enabled
Premier wireless expander instructions.
• Featuring RICOCHET™ wireless technology the
Premier Elite XT-W and Premier Elite QD-W are
designed for professional security installations.
STANDARDS
Alarm EN50131-2-2, EN50131-5-3, EN50131-1,
Systems: PD6662, Grade 2 Class II
EN50130-4:1995: A1: A2
EMC:
ETSI EN301 489-03 V1.4.1
R&TTE: ETSI EN300-220 (V2.1.1)
Environmental: EN50130-5
868.0 - 868.6 MHz / 433.05 - 434.79 MHz
Frequency Band:
• Please refer to product label
Category 1, Class 2
Receiver:
Receiver LBT
Yes
(Listen Before Talk)
Transmitter Duty
868Mhz<1%, 433Mhz<10%
Cycle
Low Voltage
2.85V
Signal
Operating Voltage 3V
Maximum current 32mA
Quiescent current 60uA

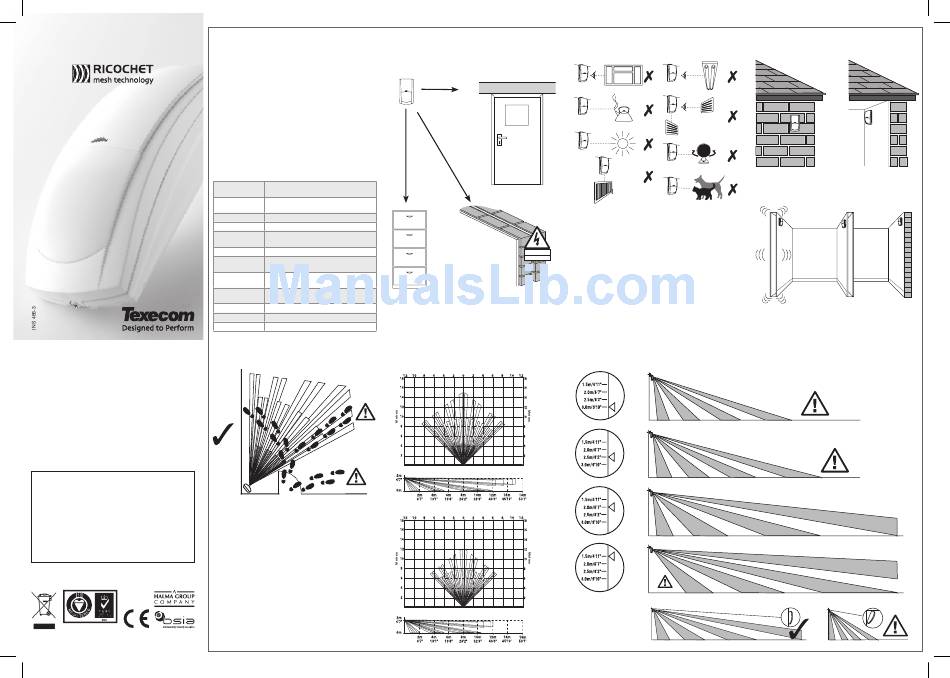

COVERAGE & PICK-UP
CHOOSING A LOCATION
Do not install close to large metal
objects or mains wiring
Metal Lintel
>1m
>1m
>1m
230V
110V
Metal Filing
Cabinet
COVERAGE PATTERNS
Premier Elite QD-W Top View
Metres
15m
85°
12m 12m
Side View
Premier Elite XT-W Top View
Metres
12m
85°
9m
9m
Side View
Avoid common false alarm sources
ALTERING COVERAGE AT 2m MOUNTING HEIGHT
2m
6'7"
2m
6'7"
2m
6'7"
2m
6'7"
2m
6'7"
ANGLING THE
DETECTOR
MOUNTING
For indoor use only
✗
✓
Mount on a stable surface
✗ ✓ ✓
8m
26'2"
10m
32'9"
15m
50'
15m
50'
2m
6'7"
15m 4m
50' 13'1"
