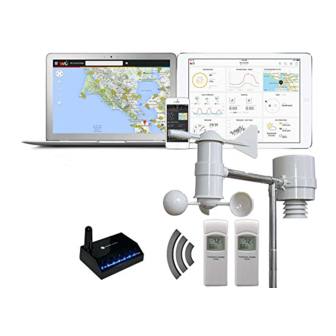

Ambient Weather WS-0900-IP Wireless Internet Remote
Monitoring Weather Station User Manual
Table of Contents
1.
Introduction ..................................................................................................................................... 2
2.
Quick Start Guide ............................................................................................................................ 2
3.
Getting Started ................................................................................................................................ 2
3.1
Parts List ................................................................................................................................. 3
3.2
Recommend Tools .................................................................................................................. 5
3.3
Sensor Array Set Up ............................................................................................................... 5
3.4
Mounting the Sensor Array .................................................................................................. 10
3.4
Outdoor Thermo-Hygrometer Sensor Set Up ....................................................................... 12
3.5
Mounting the Outdoor Thermo-Hygrometer Sensor ............................................................ 13
3.6
Indoor Thermo-Hygrometer-Barometer Transmitter ............................................................ 14
3.7
Best Practices for Wireless Communication ........................................................................ 15
3.8
ObserverIP Receiver ............................................................................................................. 15
3.8.1
Hardware Requirements ................................................................................................... 15
3.8.2
Software Requirements .................................................................................................... 16
3.8.3
ObserverIP Connections ................................................................................................... 16
3.9
Finding the ObserverIP from your computer........................................................................ 17
3.9.1
PC Users ........................................................................................................................... 17
3.9.2
Mac Users ........................................................................................................................ 19
3.9.3
Linux Users ...................................................................................................................... 20
3.9.4
Local Device Network Settings ........................................................................................ 20
3.10
Weather Network Settings .................................................................................................... 21
3.11
Viewing your Data on Wunderground.com .......................................................................... 23
3.11.1
Web Browser ................................................................................................................ 23
3.11.2
WunderStation iPad App .............................................................................................. 24
3.11.3
Mobile Apps ................................................................................................................. 25
3.11.4
Station Settings ............................................................................................................ 26
3.11.5
Live Data ...................................................................................................................... 27
3.11.6
Calibration.................................................................................................................... 28
4.
Updating Firmware ....................................................................................................................... 32
5.
Glossary of Terms ......................................................................................................................... 34
6.
Specifications ................................................................................................................................ 35
6.1
Wireless Specifications ........................................................................................................ 35
6.2
Measurement Specifications ................................................................................................. 36
6.3
Power Consumption ............................................................................................................. 36
7.
Maintenance .................................................................................................................................. 36
7.1
Cleaning the Rain Gauge Mechanism .................................................................................. 37
8.
Troubleshooting Guide .................................................................................................................. 39
9.
Liability Disclaimer ...................................................................................................................... 40
10.
FCC Statement .......................................................................................................................... 41
11.
Warranty Information ............................................................................................................... 41
Version 1.1
©Copyright 2016, Ambient LLC. All Rights Reserved.
Page 1
Advertisement
Table of Contents
Related Manuals for Ambient Weather WS-0900-IP
Summary of Contents for Ambient Weather WS-0900-IP
-
Page 1: Table Of Contents
Ambient Weather WS-0900-IP Wireless Internet Remote Monitoring Weather Station User Manual Table of Contents Introduction ............................. 2 Quick Start Guide ..........................2 Getting Started ..........................2 Parts List ..........................3 Recommend Tools ........................5 Sensor Array Set Up ....................... 5 Mounting the Sensor Array .................... -
Page 2: Introduction
Register and upload to Weather Underground Weather Server 3.10 3. Getting Started The WS-0900-IP weather station consists of an ObserverIP receiver, the sensor array, the outdoor thermo-hygrometer sensor, and the indoor wireless thermo-hygrometer-barometer. Version 1.1 ©Copyright 2016, Ambient LLC. All Rights Reserved. -
Page 3: Parts List
3.1 Parts List Item Image ObserverIP Receiver Dimensions (LxWxH): 3x2x1” Sensor Array Sensor array mounting pole extension Sensor mounting pole extension nut and bolt Allen wrench Pole mounting U-bolts Pole mounting clamps Pole mounting nuts Version 1.1 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 3... - Page 4 Item Image Outdoor thermo-hygrometer transmitter (WH32E) Indoor thermo-hygrometer-barometer transmitter (WH32B) Sensor screws (for hanging thermo-hygrometer and thermo-hygrometer-barometer sensors) Zip Ties (for hanging thermo-hygrometer and thermo-hygrometer-barometer sensors) 5V DC Adaptor Ethernet Cable User manual Version 1.1 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 4...
-
Page 5: Recommend Tools
3.2 Recommend Tools Precision screwdriver (for small Phillips screws) Compass or GPS (for wind direction calibration) Adjustable Wrench 3.3 Sensor Array Set Up Figure 1 Version 1.1 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 5... - Page 6 1. Insert batteries into the sensor array. Locate the battery door on the sensor array, as shown in Figure 2. Turn the set screw counter clockwise to loosen the screw, and rotate the sheet metal bracket to open the battery compartment. Figure 2 Version 1.1 ©Copyright 2016, Ambient LLC.
- Page 7 Pull out the battery compartment, as shown in Figure 3. Figure 3 Version 1.1 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 7...
- Page 8 Insert 2 x AA batteries in the battery compartment, as shown in Figure 4. Note: Do not install the batteries backwards. You can permanently damage the thermo-hygrometer. Do not use rechargeable batteries. Note: We recommend installing Lithium AA batteries: http://www.ambientweather.com/enaaliba4pa.html Lithium batteries provide longer life and operate in colder temperatures.
- Page 9 2. Attach the wind cups to the anemometer assembly (if necessary, some weather stations come pre-assembled).. Push the wind cups into the anemometer shaft, as shown in Figure 5. Tighten the set screw with the Allen Wrench (included), as shown in Figure 5. Make sure the wind cups spin freely.
-
Page 10: Mounting The Sensor Array
Figure 6 3.4 Mounting the Sensor Array Prior to installation, you will need to calibrate the wind direction. There is a “S” indicator on the wind vane that indicates South, as shown in Figure 7. Align this “S” marker in the direction of South. Version 1.1 ©Copyright 2016, Ambient LLC. - Page 11 Figure 7 Fasten the mounting pole to your mounting pole or bracket (purchased separately) with the two U-bolts, mounting pole brackets and nuts, as shown in Figure 8. Figure 8 Tighten the mounting pole to your mounting pole with the U-Bolt assembly, as shown in Figure 9. Version 1.1 ©Copyright 2016, Ambient LLC.
-
Page 12: Outdoor Thermo-Hygrometer Sensor Set Up
Figure 9 3.4 Outdoor Thermo-Hygrometer Sensor Set Up Note: To avoid permanent damage, please take note of the battery polarity before inserting the batteries. The outdoor thermometer-hygrometer measures and displays the outdoor temperature and humidity to the ObserverIP receiver. Version 1.1 ©Copyright 2016, Ambient LLC. -
Page 13: Mounting The Outdoor Thermo-Hygrometer Sensor
Remove the battery door on the back of the sensor by sliding off the battery door. Insert two AA batteries as shown in Figure 10, and close the battery door. Note that the temperature and humidity will be displayed on the LCD display. We recommend lithium batteries for cold weather climates, but alkaline batteries are sufficient for most climates. -
Page 14: Indoor Thermo-Hygrometer-Barometer Transmitter
Figure 11 The sensor can also be hung from a nylon zip tie (included) or string (not included). Figure 12 3.6 Indoor Thermo-Hygrometer-Barometer Transmitter The indoor thermometer, hygrometer and barometer measures and displays the indoor temperature, humidity and pressure and transmits this data to the ObserverIP receiver. Version 1.1 ©Copyright 2016, Ambient LLC. -
Page 15: Best Practices For Wireless Communication
Note: Do not install the thermo-hygrometer-barometer transmitter outside. This will cause errors in the barometric pressure due to large variations in temperature (barometric pressure is temperature compensated for accuracy). Note that pressure readings made inside your home, business, or facility will correspond closely to the actual barometric pressure outside. -
Page 16: Software Requirements
2. An “always-on” connection to the Internet. A high speed DSL or cable internet connection that maintains constant connection to the internet. 3.8.2 Software Requirements An IP scan tool is required to locate the ObserverIP on the network. Important Note: Download ObserverIP tools at the following location: www.AmbientWeather.com/observerip.html 3.8.3 ObserverIP Connections Connect the ObserverIP receiver power jack to AC power with the power adapter (included), as shown... -
Page 17: Finding The Observerip From Your Computer
Ref. Description Link Connected to the Internet (or router) Power AC Power connected Figure 13 Ref. Description LAN connection (connect to router) Reset button AC Power connection Figure 14 3.9 Finding the ObserverIP from your computer 3.9.1 PC Users To find the ObserverIP receiver, launch the IP Tools application downloaded here: www.AmbientWeather.com/observerip.html The HostIP (your computers IP address) will be displayed. - Page 18 Figure 15 Select the Search button to find the ObserverIP on your local area network. Figure 16 Select the ObseverIP module on your network as shown in Figure 17 (the field will be highlighted) and select the Open button (or double click this field) to view the ObserverIP module’s webpage within your browser.
-
Page 19: Mac Users
You are now communicating directly to the ObserverIP and can proceed to Section 3.9. 3.9.2 Mac Users To find the ObserverIP receiver, launch the IP Tools application downloaded here: www.AmbientWeather.com/observerip.html The file is compressed as a zip file and must be extracted to run. Select the Search button to find the ObserverIP on your local area network. -
Page 20: Linux Users
3.9.3 Linux Users If you use an Apple or Linux operating system, download any commercially available IP scan tool, such as AngryIP Scanner and find the MAC address of the ObserverIP. The MAC address is a unique identifier for internet enabled devices. The MAC address will be printed on the bottom of the ObseverIP receiver. -
Page 21: Weather Network Settings
3. Static Subnet Mask. Default is 255.255.255.0. This should not be changed unless you are familiar with networking and subnet masking. 4. Static Default Gateway. This is typically the IP address of your router. 5. Static DNS Server. This is your DNS Server setting based on your router connection. 6. - Page 22 Enter the Station ID and password obtained from Wunderground.com®. Select the Apply button to confirm changes. Note: How to create a Wunderground.com® account and station ID. 1. Visit Wunderground.com, click on the person icon and create a free account. 2. Select the Basic – Free account. A paid account is not required. Figure 25 3.
-
Page 23: Viewing Your Data On Wunderground.com
Figure 27 6. Once registered, you receive a station ID and password. Make a note of this. You will need to enter it into your weather station (Figure 28 is an example, and your station ID and password will be different. Figure 28 Note: Your station ID will have the form: KSSCCCC###, where K is for USA station (I for international), SS is your state, CCCC is your city and ### is the station number in that city. -
Page 24: Wunderstation Ipad App
Figure 29 3.11.2 WunderStation iPad App Visit: http://www.WunderStation.com to download the WunderStation iPad app. Version 1.1 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 24... -
Page 25: Mobile Apps
Figure 30 3.11.3 Mobile Apps Visit: http://www.wunderground.com/download/index.asp for a complete list of Mobile apps for iOS and Android. Alternately, you can find your data on your mobile device’s web browser. Version 1.1 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 25... -
Page 26: Station Settings
Figure 31 3.11.4 Station Settings Select Apply to confirm any of the changes in this section. 3.11.4.1 Wireless Transmitter Settings Weather Station Model Number: Enter your weather station model number. 3.11.4.2 Time Zone Setting Enter your local time zone and daylight Savings Time. 3.11.4.3 Daylight Savings Time Enter off if you live in Hawaii or Arizona, where DST is not observed. -
Page 27: Live Data
Figure 32 3.11.5 Live Data Select the Live Data tab to view your live data from the weather station. To freeze the live data updates, select the Stop Refresh button. Version 1.1 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 27... -
Page 28: Calibration
Figure 33 3.11.6 Calibration Select the Calibration tab to view your calibration data from the weather station. Select the Apply button to confirm changes. Calibration of most parameters is not required, with the exception of Relative Pressure, which must be calibrated to sea-level to account for altitude effects. - Page 29 2. From the Live Data panel, your absolute pressure (measured, and not corrected to sea-level) reads 28.90 inHg. 3. Reference Figure 34. Enter the following offset in the Calibration panel for Relative Pressure Offset: Relative Pressure Offset = 30.16 – 28.90 = 1.26 Figure 34 Version 1.1 ©Copyright 2016, Ambient LLC.
- Page 30 Parameter Type of Default Typical Calibration Source Calibration Temperature Offset Current Value Red Spirit or Mercury Thermometer (1) Humidity Offset Current Value Sling Psychrometer (2) Offset Current Value Calibrated laboratory grade Barometer barometer REL Barometer Offset Current Value Local airport (3) Wind Gain 1.00 Calibrated laboratory grade...
- Page 31 Without a calibrated source, wind speed can be difficult to measure. We recommend using a calibrated wind meter (available from Ambient Weather) and a constant speed, high speed fan. (5) The rain collector is calibrated at the factory based on the funnel diameter. The bucket tips every 0.01”...
-
Page 32: Updating Firmware
4. Updating Firmware You must own a PC to update the firmware. Sorry, Linux and Apple products are currently not supported. Ambient Weather will update your ObserverIP at no cost (appropriate shipping charges will apply). 1. Download the latest version of firmware at: http://www.ambientweather.com/observerip.html... - Page 33 Figure 36 5. Select the Upgrade Firmware button. Reference Figure 37. The dialog box will display Received a Read Request from the ObserverIP module. A green progress bar will provide you with the upgrade status. DO NOT OPERATE THE MOUSE OR KEYBOARD WHEN UPGRADING to prevent interruption of the upgrade.
-
Page 34: Glossary Of Terms
Figure 38 7. Wait about one minute for the ObserverIP module to reboot. You can now Exit the upgrade window, and access the module again, as referenced in Section 3.9. You may be required to enter some settings, so check all of the panels for completeness. 5. -
Page 35: Specifications
Term Definition as millibars (1 hPa = 1 mbar) Hygrometer A hygrometer is a device that measures relative humidity. Relative humidity is a term used to describe the amount or percentage of water vapor that exists in air. Inches of Mercury (inHg) Pressure in Imperial units of measure. -
Page 36: Measurement Specifications
6.2 Measurement Specifications The following table provides the specifications for the measured parameters. Measurement Range Accuracy Resolution Indoor Temperature 32 to 140 °F ± 2 °F 0.1 °F Outdoor Temperature -40 to 149 °F sensor ± 2 °F 0.1 °F -23 to 140 °F rechargeable battery range (alkaline) Indoor Humidity... -
Page 37: Cleaning The Rain Gauge Mechanism
7.1 Cleaning the Rain Gauge Mechanism 1. Reference Figure 39. Loosen the three recessed screws on the bottom of the rain gauge assembly until there is little tension. Figure 39 Version 1.1 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 37... - Page 38 2. Pull the rain gauge funnel from the assembly as shown in Figure 40. Figure 40 3. Clean the mechanism with a damp cloth, removing all of the insects and debris and re-assemble the rain gauge. Version 1.1 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 38...
-
Page 39: Troubleshooting Guide
8. Troubleshooting Guide If your question is not answered here, you can contact us as follows: 1. Email Support: support@ambientweather.com 2. Technical Support: 480-346-3398 (M-F 8am to 3pm Arizona Time) Problem Solution The maximum line of sight communication range is about 300’. Move the Wireless remote(s) not reporting in to sensor assembly closer to the ObserverIP receiver. -
Page 40: Liability Disclaimer
module does not http://www.AmbientWeather.com/observerip.html communicate to the server. 2. Power down the ObserverIP module but leave connected to your router. 3. Launch the IP Tools application as referenced in Section 3.9. Since the module is powered down, you will not be able to locate it on your network, but proceed anyway. -
Page 41: Fcc Statement
This product is not a toy. Keep out of the reach of children. No part of this manual may be reproduced without written authorization of the manufacturer. Ambient, LLC WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT. - Page 42 than an authorized Ambient, LLC authorized service center; (5) units used for other than personal use (6) applications and uses that this product was not intended (7) the products inability to receive a signal due to any source of interference or metal obstructions and (8) extreme acts of nature, such as lightning strikes or floods.
