Summary of Contents for Xterra TR6.5

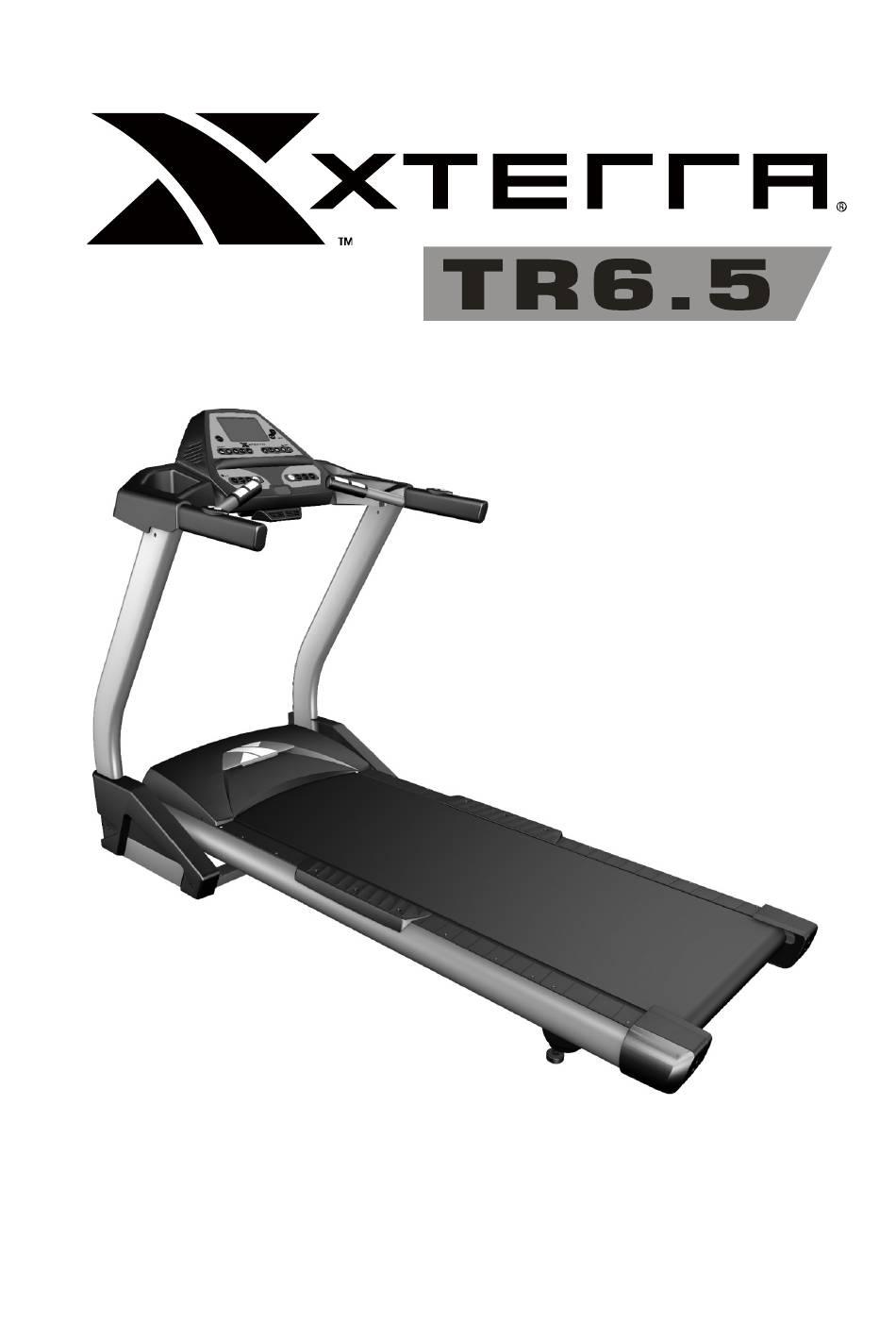

  • Page 1 OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Product Registration……………………………………………………………………….. Important Safety Instructions…………………………………………………………….. Important Electrical Information………………………………………………………….. Important Operation Instructions…………………………………………………………. Assembly instructions…………….………………………………………………………… 6 Operation of Your New Treadmill………………………………………………..………. General Maintenance.……………….………………………………………….………… Manufacturer’s Limited Warranty………………………………………………………… TR6.5 Treadmill...

  • Page 3: Product Registration

    NEW TREADMILL AND WELCOME TO THE XTERRA FAMILY! Thank you for your purchase of this quality treadmill from Xterra. Your new treadmill has been manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available. Xterra will do all we can to make your ownership experience as pleasant as possible for many years to come.

  • Page 4: Important Safety Instructions

    Important Safety Instructions WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your Xterra treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt, 15-amp grounded outlet.

  • Page 5: Important Electrical Information

    Whenever the adapter is used, it must be held in place by a metal screw. Adapter Grounded Outlet Tab of Grounding Metal Screw Screw Grounded Outlet Box Grounding Pin TR6.5 Treadmill...

  • Page 6: Important Operation Instructions

    These distractions may cause you to lose balance or stray from walking in the center of the belt, which may result in serious injury. NEVER mount or dismount the treadmill while the belt is moving. Xterra treadmills start ●...

  • Page 7: Assembly Instructions

    Assembly Instructions for TR6.5 ASSEMBLY PACK CHECK LIST #111 - M5 x 15mm #95 - 5/16” x 19mm Phillips Head Screw (12pcs) Curved Washer (4pcs) #94 - 5/16” x 15mm #110 - 5/16” x 19mm Button Head Socket Bolt (14pcs)
  • Page 8 (4) and just hand tighten for now all eight 5/16” x 1/2“ bolts (94) and the six 5/16” flat washers (110) for the side bolts and two 5/16” curved washers (95) for the front bolts. Tighten all eight bolts as tight as possible. TR6.5 Treadmill...
  • Page 9 Secure the console frame with six 5/16” bolts (94) and 5/16” flat washers (110). 110 94 STEP 4 ■ Install the fan assembly (112) to the underside of the console frame with the four M5 X 15mm screws (111). TR6.5 Treadmill...
  • Page 10 Secure the console with four M5 X 15mm screws (111). 36 25 112-3 STEP 6 ■ ■ ■ ■ Attach the left (44) and right (43) covers to the upright base frame with four M5 X 15mm screws (111). TR6.5 Treadmill...

  • Page 11: Operation Of Your New Treadmill

    Time window will show how many hours the treadmill has been in use and the Distance window will show how many miles (or Kilometers if the treadmill is set to metric readings) the treadmill has gone. The treadmill will then enter idle mode, which is the starting point for operation. TR6.5 Treadmill...
  • Page 12 Press and hold the Adjust UP/DOWN keys (console or handgrip) to achieve desired level of effort. You may also choose a more rapid increase / decrease by selecting desired key, 2 through 10, on left hand side of console (incline). The display will indicate incline position as adjustments are made. TR6.5 Treadmill...
  • Page 13 (about as much as your television when it is turned off). (2) Remove tether cord. (3) Turn of the main switch on the front of the treadmill, below the motor cover. TR6.5 Treadmill...
  • Page 14 Programmable Features The TR6.5 has five factory preset programs, two user defined programs, two heart rate control programs and one Manual program. Each preset program has a maximum speed level that is displayed when a desired workout is chosen. The maximum speed that the particular program will achieve will be displayed in the Speed window.
  • Page 15 XTERRA TR6.5 TREADMILL PROFILES TR6.5 Treadmill...
  • Page 16 STEP 5: The Time window will now be blinking. Adjust the time and press enter. STEP 6: Press Start to begin program. *Remember that you must maintain contact with the sensors for the program to work. TR6.5 Treadmill...
  • Page 17 Consult your physician before participating in any exercise program. With all Xterra Heart Rate Control treadmills, you may use the heart rate monitor feature without using the Heart Rate Control program. This function can be used during any of the different programs.
  • Page 18 90 degrees may de-tune the interference. WARNING! DO NOT USE THE HEART RATE CONTROL PROGRAM IF YOUR HEART RATE IS NOT REGISTERING PROPERLY ON THE TREADMILL’S DISPLAY! TR6.5 Treadmill...
  • Page 19 In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. TR6.5 Treadmill...

  • Page 20: General Maintenance

    Allen bolts an equal amount. This adjustment is accomplished by turning both bolts clockwise no more than a 1/4 turn at a time. DO NOT OVERTIGHTEN – Over tightening will cause belt damage and premature bearing failure. TR6.5 Treadmill...
  • Page 21 ATTENTION: DAMAGE TO THE RUNNING BELT RESULTING FROM IMPROPER TRACKING / TENSION ADJUSTMENTS IS NOT COVERED UNDER THE XTERRA WARRANTY. MAINTENANCE MODE: If you want to set the Speed and Distance to Metric or if there is a problem with the speed and you would like to perform the calibration procedure, use the Maintenance Mode.
  • Page 22 Xterra. There are commercially available lube kits, but the only one currently approved by Xterra is Lube-N-Walk. These kits come with an application wand that makes applying the lubrication easier. The kits can be purchased from Xterra or directly from Lube-N-Walk here: http://www.jadfitness.com/...
  • Page 23 If an extension cord is required it should be as short as possible and heavy duty 16 gauge minimum. Low household voltage. Contact an electrician or your Xterra dealer. A minimum of 110 volt AC current is required.

  • Page 24: Manufacturer's Limited Warranty

    TREADMILL LIMITED WARRANTY Xterra Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. Xterra’s responsibilities include providing new or remanufactured parts, at Xterra’s option, and technical support to our independent dealers and servicing organizations.
