ASSEMBLY PROCEDURE

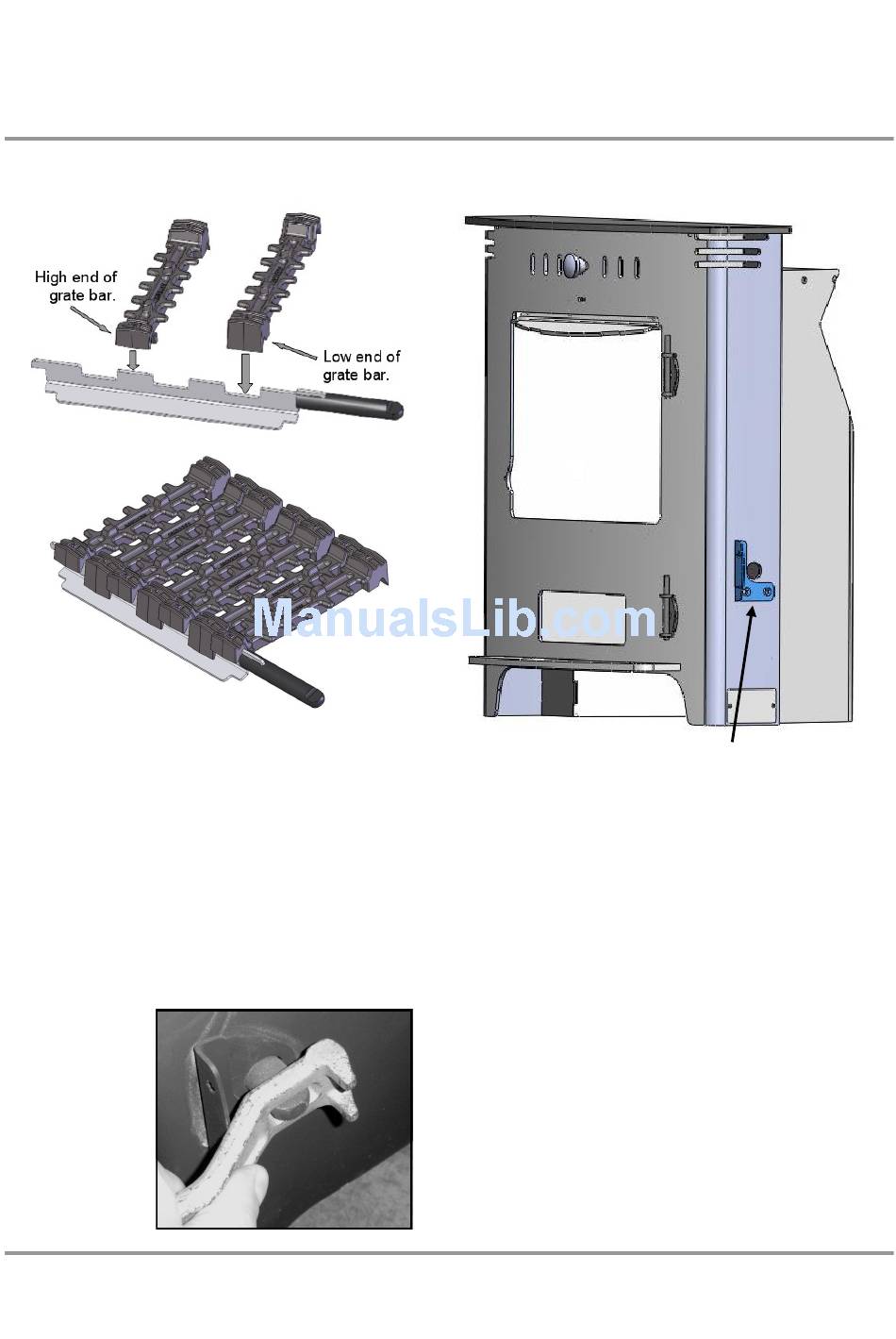

Fig 5
Fig 6

Wood Coal bracket

The wood coal bracket replaces the outer wood
cover plate, and is attached using the same
screws once removed. See fig 7.
The multi-purpose tool to supplied with the stove
can be use to 'riddle' the grate when burning
solid fuel, and to set the grate position for fuel
types.
The upper '+' position is best suited for coal and
the lower '-' position is generally for the burning
of wood.
Page 6
Fig 7
Wood / Coal bracket, replaces the Outer
Wood Cover Plate
NOTE:
When the grate assembly & installation is complete
re-fit the 2 no. fuel retainer bars, that were removed
earlier.

Grate Bar Replacement

After extended use it may be necessary to replace
some of the grate bars. Periodic inspection of the
bars is recommended and the removal of any nails or
wire that may be present after burning wood. All the
grate bars in each appliance are identical and can
easily be lifted out after the removal of the fuel
retainers. Remove damaged grate bars and replace
with castings of the same type, fitting as per the
instructions on page 4. When re-ordering
replacement grate bar, See page 3 of these
instructions for the correct spare part code.
Hamlet Solution Inset
