ENGLISH
The earth must to be connected! Pay attention to the safety!
Before taking into operation for the first time, the installation has to be appro-
ved by an expert.

3.1.2 Audio Connections

You will need several cables for the various connections to and from the
speaker. See the pictures below that show the internal wiring of these cables.
Be sure to use only high quality cables.
Use commercial RCA cables to wire stereo unbalanced sources with RCA
output connectors to stereo RCA LIne inputs of GO-SOUND units.
You can, of course, also connect unbalanced equipment to balanced inputs.
Use either mono and stereo jack, making sure ring and collar are connected
together (or pins 1 & 3 in the case of XLR connectors).
10

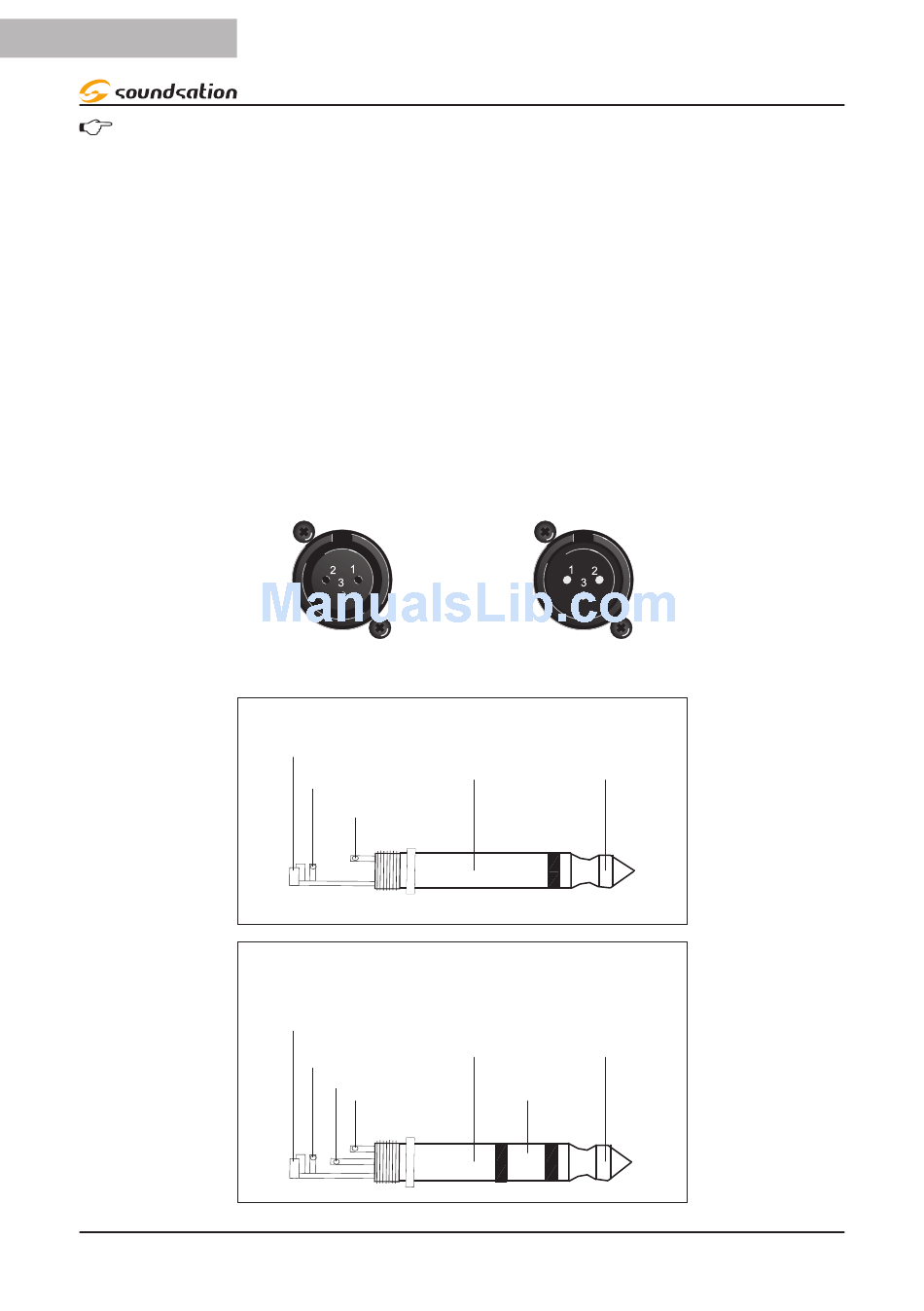

Balanced use of XLR connectors
1= Ground/Shield
2= Hot (+)
3= Cold (-)
INPUT
In case of unbalanced use Pins 1 and 3 will be jumped
Unbalanced use of 1/4" jack TS connector
Strain relief
clamp
Sleeve
Tip
Balanced use of 1/4" jack TRS connector
Headphones connection with 1/4" TRS connector
Strain relief
clamp
Sleeve
Ring
Tip
GO-SOUND series User manual
OUTPUT
Tip
Sleeve
Signal
Ground shield
Sleeve
Tip
Ground shield
Hot (+ Ve)
Ring
Cold (- Ve)
