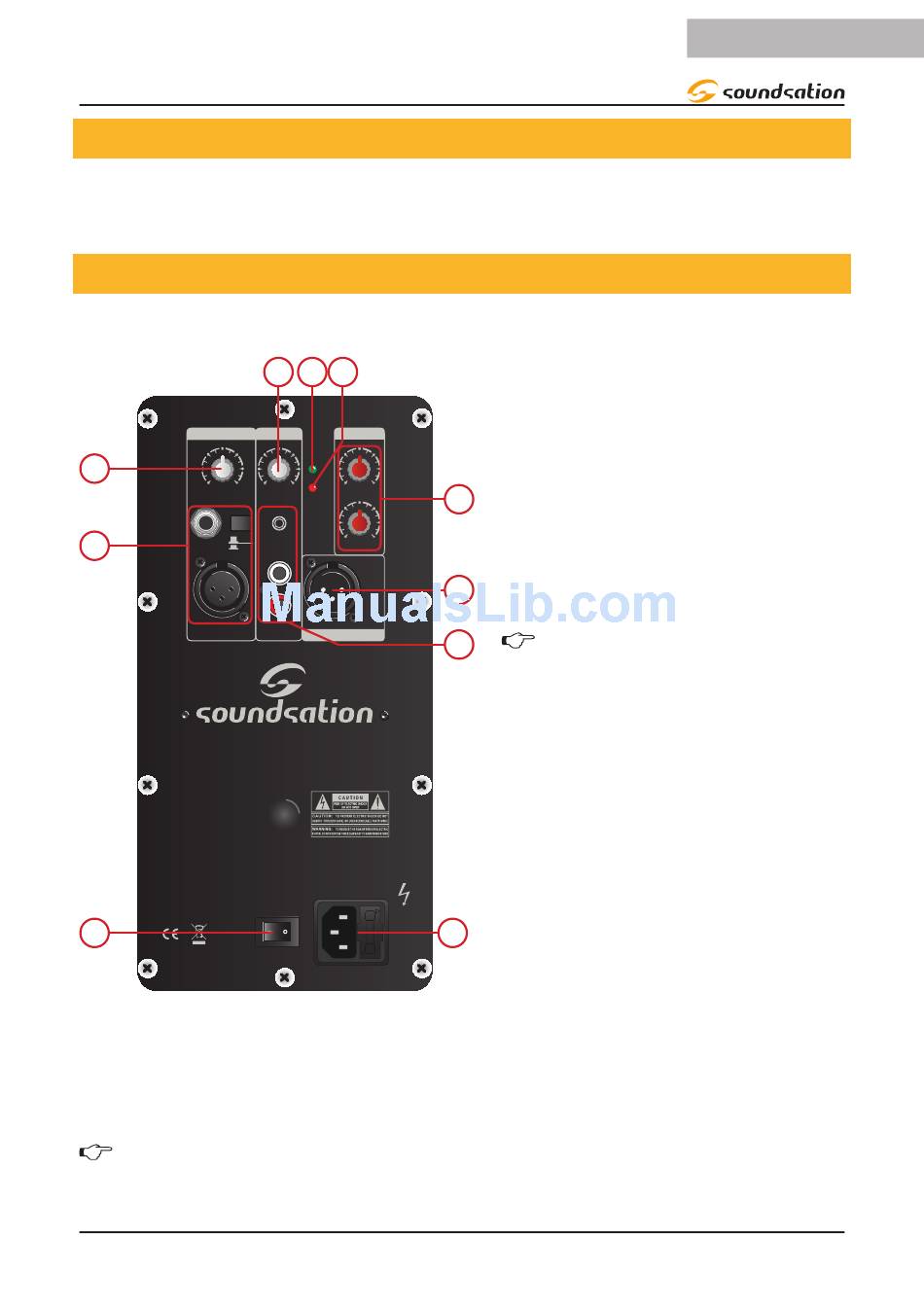

3.2. Rear Panel Description

GO-SOUND Series active loudspeakers have several connectors, controls,
and indicators the use of which you should understand.

3.3. GO-SOUND 8A, 10A

1) IEC Socket with Fuse holder
MIC/LINE IN LINE IN
4
0 10
VOL 1
3
LINE
MIC
GO-SOUND 8A
ON
2
mic- or line-level signal. The switch Line/Mic has to be pressed in case of mi-
crophone level signals. There is no phantom power for a microphone, so you
should use a dynamic mic, or use a condenser type if it has its own battery
power.
WARNING: Pressing MIC/LINE switch on line level signals may
cause damages to the speaker. Be careful!
5 6 7
EQ
POWER
-10 +10
0 10
HIGH
VOL 2
CLIP
L/R
-10 +10
LOW
mix out
AC INPUT
AC 230V 50HZ
T1.0A/250V
Power
OFF
Plug the linecord into an AC
socket properly configured for your
particular model. In case of fuse
burn, to prevent the risk of fire and
damaging the unit, please use only
of the recommended fuse type as
8
described in the manual. Before
replacing the fuse, make sure the
unit turned off and disconnected
9
from the AC outlet.
Note: If you happen to lose
10
the AC linecord, always use a
three-pin plug with a ground pin.
2) POWER Switch
Switch up to turn the spekaer
on, and switch down to turn it
off. Make sure the level control is
down before you turn it on.
3) MIC/LINE In INPUT Sec-
tion
1
There is a female XLR-type con-
nector and a 1/4" Jack plug that
accept a balanced or unbalanced
ENGLISH
