- Page 2 Dear customer, first of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy all the possible needs of musical instrument and professional audio users offering a wide range of products using the latest technologies for a reasonable price.
- Page 3 Keep in a safe place the original packaging material for future use. ACCESSORIES SOUNDSATION can supply a wide range of quality accessories that you can use with the PA- 120 MK2 system like Cables, Microphones, Stands, Headphones etc. All the products from our catalogue has been long tested with this device so we recommend to use Genuine SOUNDSATION Accessories and Spare Parts.
-
Page 4: General Warnings

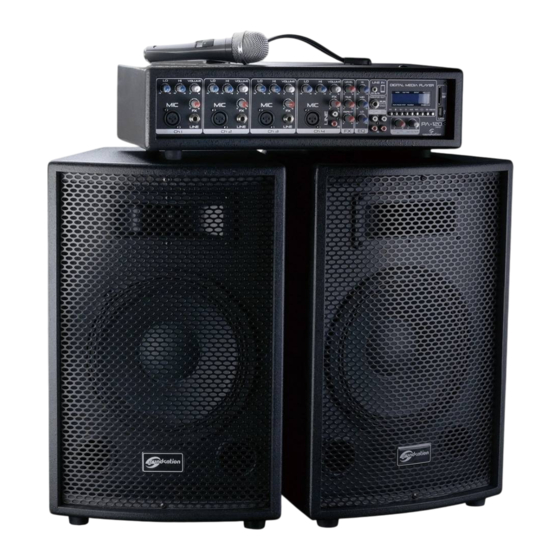

- Do not place the instrument on anything containing water or other fluids. If any foreign objects enter the instrument, please contact your dealer or an authorized SOUNDSATION center. The serial number, electrical features and international standards are printed in the back panel of the Active Mixer. - Page 5 OVERVIEW The PA-120 MK2 system is designed to be a powerful resource for live and educational purpose. The friendly user interface is one of the best features of this product and this allow you to configure your sound device in a fast and easy way.
-
Page 6: Front View
MIXER FRONT VIEW BACK VIEW POWER AND SPEAKERS CONNECTION... - Page 7 Channel Strip 1 - Use this XLR input to connect a Microphone. The Input Impedance is 2KOhm. 2 - Use this Jack input to connect a Guitar, a Keyboard, a Drum Machine or any other Jack based source. 3 - This Stereo Input can be used to connect an Educational keyboard, a CD input or any 4 - These controls allow to adjust the Equalization of each Channel: LO adjust Bass frequencies +/- 15 dB with 80Hz cut point HI adjust High Frequencies +/- 15 dB with 12KHz cut point...
- Page 8 FX SECTION PA-120 mk2 is equipped with a Genuine 24 bit FX DSP featuring a Delay/Reverb effect useful to add more emphasis to the human voices. These 3 knobs allow to adjust: LEVEL - the total amount of the FX to send to the Master Section...
-
Page 9: Master Section
LINE IN, MONITOR OUT & RCA 1 - This input is useful to connect a stereo line source like MP3 player, a computer or a smartphone with a 3,5mm jack. 2 - This stereo output (balanced) is useful to connect to the mixer a couple of active speakers or a stage monitor. - Page 10 DIGITAL PLAYER 1 Play/Pause - Press this button to play the chosen song. Press it again to momentarily interrupt the playing. Press a third time to continue the reading of the song. 2 Stop - Press this button to end the song 3 Volume + - Use this button to increase the Volume 4 Volume - - Use this button to disincrease the Volume 5 Next Song - Press this button once to go to the next song.
-
Page 11: Back Panel
1 x Piezo Tweeter with a Frequency Response of 50Hz to 18 KHz. Under each wood case there is a typical 35mm Fixing hole plate to let you setup these units with a Speaker Stands. (we strongly recommend to use genuine SOUNDSATION stands to prevent possible damages to the items). -
Page 12: Specification
SPECIFICATION 2 x 100 W Active Mixer 2 x Bass Reflex 150 W Passive Speakers 6 Audio Channel Inputs (4 x Mono /Line – 1 x Stereo Line) Stereo Monitor Out 24 BIT DSP FX with Adjustable Level, Time and Repeat ... -
Page 13: Warranty And Service
Alternatively you can send the product to SOUNDSATION SERVICE CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati - Italy . In order to send a product to service center you need an RMA number. Shipping charges have to be covered by the owner of the product. - Page 14 FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati – Italy © SOUNDSATION 2013 – All rights reserved – All total or partial reproduction of this manual by any other company or person without express authorization of Soundsation is strictly forbidden.
