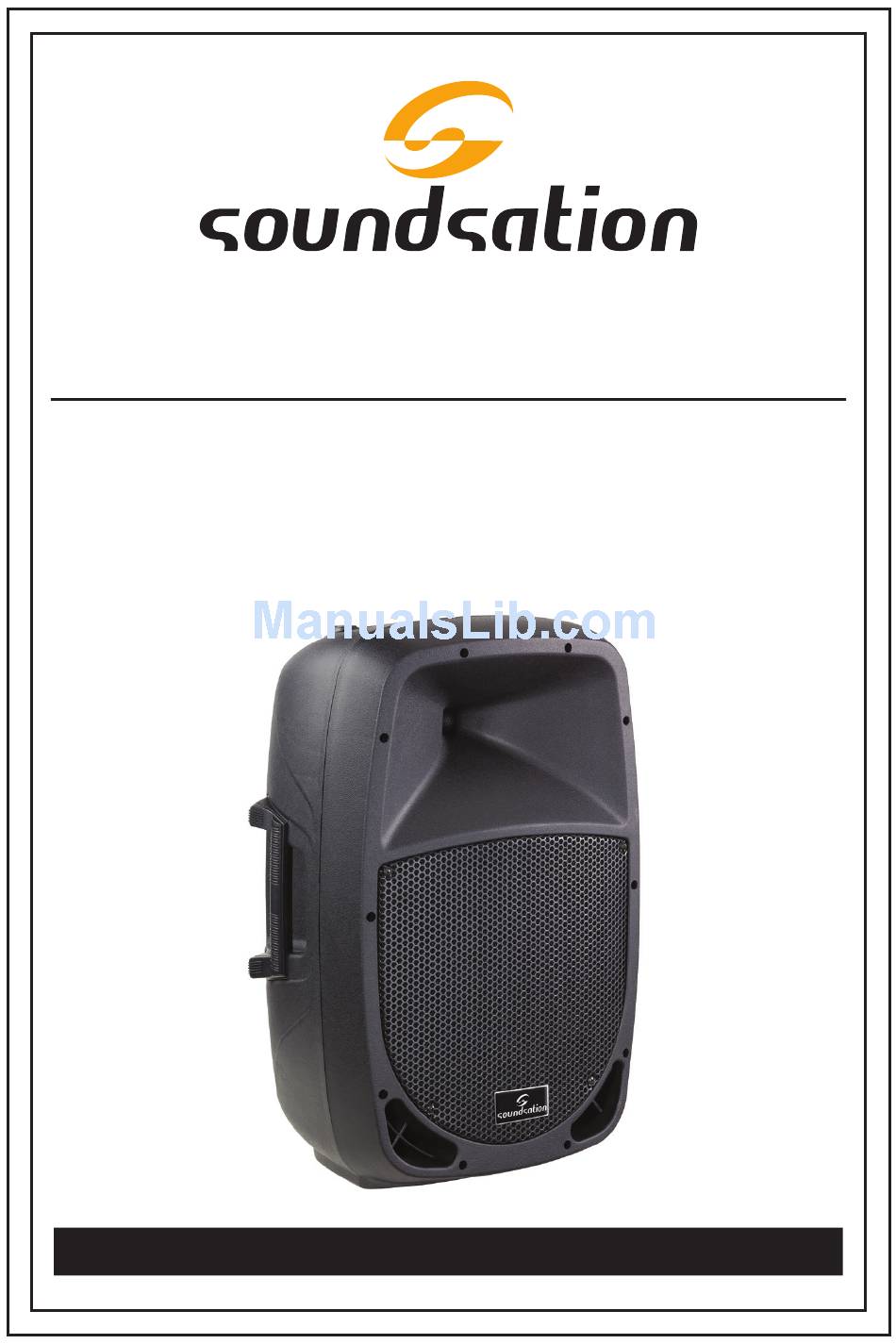

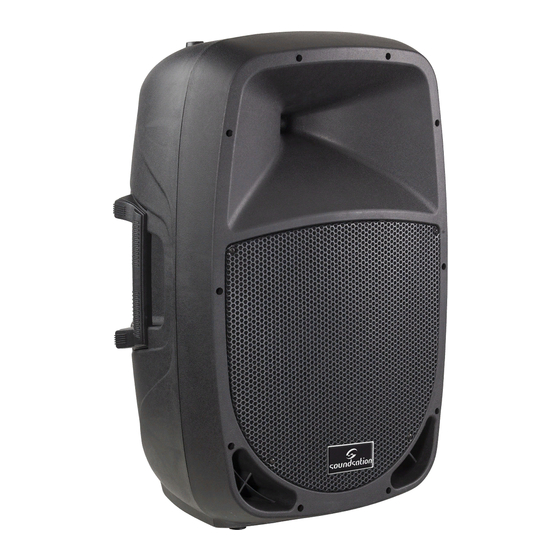

Page 1: User Manual
USER MANUAL GO-SOUND series multi-purpose active speakers Please read this manual carefully and proper take care of it... - Page 3 Dear customer, First of all thanks far purchasing a SOUNDSATION product. Our mission is to ® satisfy all possible needs of musical instrument, professional audio and light- ing users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and www.
- Page 4 ENGLISH...
-
Page 5: Table Of Contents
1. GETTING STARTED ....................6 1.1. Important Safety Symbols ...................6 1.2. Important Safety Instructions ................6 1.3. Before You Start ....................8 2. SOUNDSATION GO-SOUND SERIES ..............9 3. SETUP ........................9 3.1. Connections ......................9 3.2. Rear Panel Description ..................11 3.3. GO-SOUND 8A, 10A ....................11 3.4. -
Page 6: Getting Started
ENGLISH GO-SOUND series User manual 1. GETTING STARTED 1.1. Important Safety Symbols The symbol is used to indicate that some hazardous live termi- nals are involved within this apparatus, even under the normal operating conditions, which may be sufficient to constitute the risk of electric shock or death. - Page 7 ENGLISH GO-SOUND series User manual Heat The apparatus should be located away from heat sources such as radiators, stoves or other appliances that produce heat. It may carry high heat, do not aim at objective exceeding 2 minutes. Ventilation The unit must be installed in a location with adequate ventilation, at least 5m away from adjacent surfaces.
-
Page 8: Before You Start
1.3.2 Getting started GO-SOUND Series speakers are part of a wider range of SOUNDSATION Pro Audio product line. These active speakers are compact, light weight and very easy to use. They are ideal for any live music or fixed installation pur- pose. -
Page 9: Soundsation Go-Sound Series
2. SOUNDSATION GO-SOUND SERIES GO-SOUND series is the result of years of experience gathered by SOUND- SATION in Portable Sound systems, a segment where quality, versatility and value for money are absolutely essential. -
Page 10: Audio Connections
ENGLISH GO-SOUND series User manual The earth must to be connected! Pay attention to the safety! Before taking into operation for the first time, the installation has to be appro- ved by an expert. 3.1.2 Audio Connections You will need several cables for the various connections to and from the speaker. -
Page 11: Rear Panel Description
ENGLISH GO-SOUND series User manual 3.2. Rear Panel Description GO-SOUND Series active loudspeakers have several connectors, controls, and indicators the use of which you should understand. 3.3. GO-SOUND 8A, 10A 1) IEC Socket with Fuse holder Plug the linecord into an AC... -
Page 12: Go-Sound 12A, 12Am, 15A, 15Am
ENGLISH GO-SOUND series User manual 4) MIC/Line LEVEL This controls the overall signal level at the Mic-Line inputs. 5) Line LEVEL This controls the overall signal level at the stereo mini jack plug and RCA inputs. 6) POWER on indicator When the POWER switch is turned on, and the linecord is connected to an active AC Mains supply, this indicator is lit. - Page 13 ENGLISH GO-SOUND series User manual Note: If you happen to lose the AC linecord, always use a three-pin plug with a ground pin. digital media player level level level level HIGH aux in LINE POWER CLIP MIC/LINE LINE master INput...
- Page 14 ENGLISH GO-SOUND series User manual damages to the speaker. Be careful! 4) MIC/LINE LEVEL This controls the overall signal level at Mic-Line inputs. 5) Line Level This controls the Line overall signal level at the XLR, stereo mini jack plug and RCA inputs.
-
Page 15: Digital Meda Player (Only 12Am & 15Am)
ENGLISH GO-SOUND series User manual 13) MIX Out This is a male XLR-type connector that produces a EQed mix of Mic/Line In- puts as well as multimedia player sources. Please notice that this output is not affected by Master Level control. Use it to daisy-chain several active monitors together. -
Page 16: Using The Player With Usb Drives And Sd-Cards
ENGLISH GO-SOUND series User manual 5. MODE button: by pressing repeatedly, it switches among Bluetooth™ mode, USB/SD mode and OFF (player and display off). Button (Play / Pause): plays audio of the selected device (Stop): puts in stop playback Button (Repeat): by pressing repeatedly, it allows you to browse... -
Page 17: Using Bluetooth
ENGLISH GO-SOUND series User manual , stop or pause . Continuing to right, it shows the current playback mode (in this case NOR - Normal). Then there is the software version (in this case V15) and the time code of current playing track. At the second line there are - from left to right - the song number in current folder and its title. -
Page 18: Hookup Diagrams
ENGLISH GO-SOUND series User manual 5. HOOKUP DIAGRAMS 5.1. Examples of Input connections MP3 player, usign a stereo mini-jack unbalanced LINE input CD player, usign a stereo RCA unbalanced digital media player LINE input level level level level Keyboard usign a 1/4” jack unbalanced LINE input... -
Page 19: Biamping With Hyper Bass Active Subs
ENGLISH GO-SOUND series User manual 5.3. Biamping with HYPER BASS active subs GO-SOUND GO-SOUND Speaker Speaker Line balanced input Line balanced input Left & Right full-range outputs SOUNDSATION SOUNDSATION Left Output Right Output SUB ST100-M20 SUB ST100-M20 Speaker Pole Speaker Pole... -
Page 20: Specifications
ENGLISH GO-SOUND series User manual 6. SPECIFICATIONS GO-SOUND 8A GO-SOUND 10A GO-SOUND 12A Speaker Type 2-Way Active Speaker 2-Way Active Speaker 2-Way Active Speaker Freq. Response 75Hz - 18KHz 70Hz - 18KHz 55Hz - 18KHz Max SPL 110 dB 112 dB... - Page 21 ENGLISH GO-SOUND series User manual GO-SOUND 15A GO-SOUND 12AM GO-SOUND 15AM 2-Way Active Speaker 2-Way Active Speaker 2-Way Active Speaker Speaker Type 50Hz - 18KHz 55Hz - 18KHz 50Hz - 18KHz Freq. Response [-3dB] 116 dB 114 dB 116 dB...
-
Page 22: Warranty And Service
Alternatively you can send the product to SOUNDSATION SERVICE CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati - Italy . In order to send a product to ser- vice center you need an RMA number. -
Page 23: Warning
WEEE scheme or your household waste disposal service. This product is imported in EU by FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy... - Page 24 www.soundsa tionmusic.com Ver 1.0 - Mar. 2016...
