ENGLISH

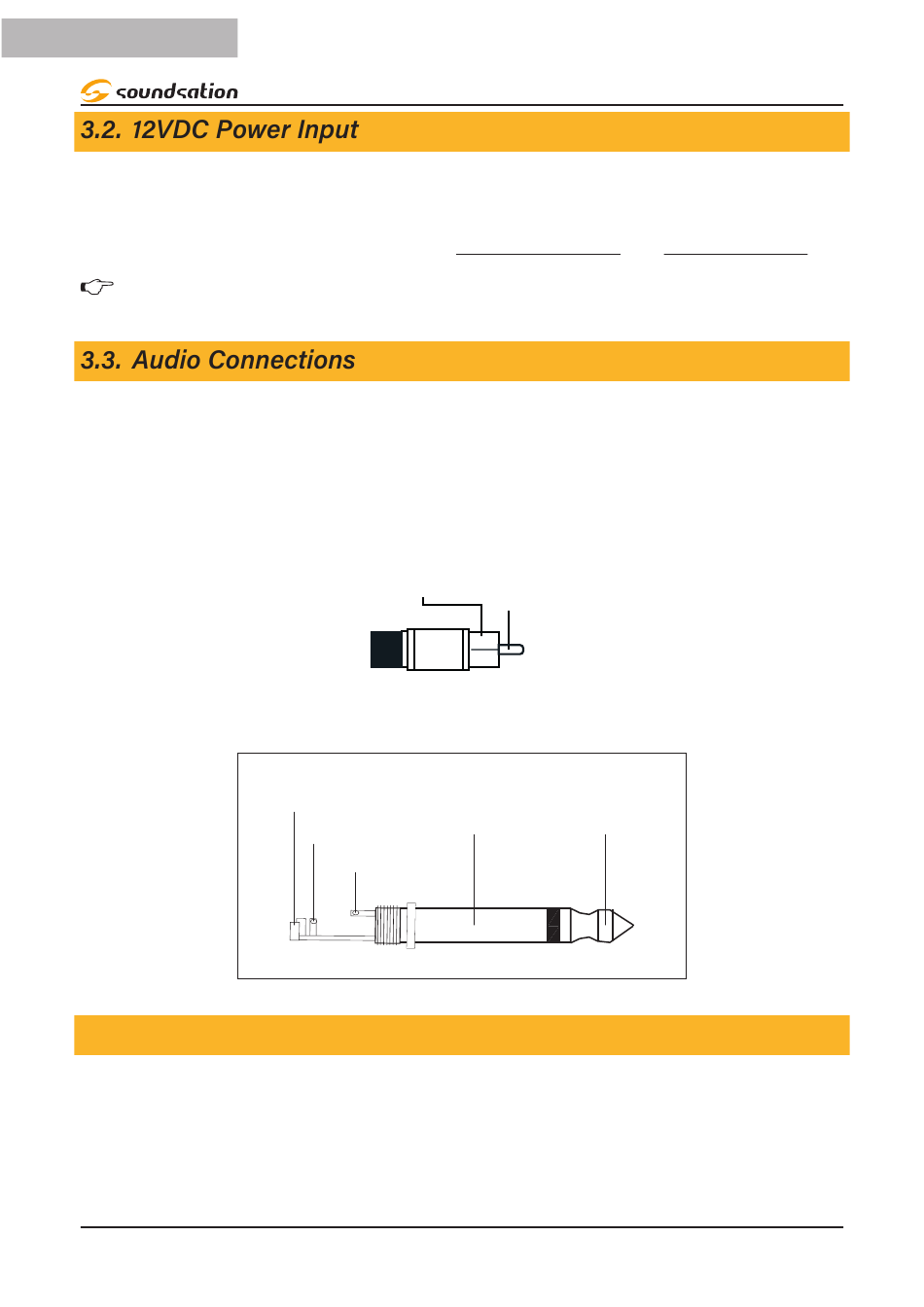

GO-SOUND 12/15Air PA Systems can be powered by a 12VDC power source (such as
the battery of a car). Be sure to use cables with appropriate conductor section (1.50
mm minimum) to avoid overheating.
2
Be sure to observe the correct polarity: the positive pole is red; the negative is black.
Before taking into operation for the first time, the installation has to be ap-
proved by an expert.
You will need several cables for the various connections TO and FROM the PA system.
See the pictures below that show the internal wiring of these cables. Be sure to use only
high quality cables.
Use commercial RCA cables to wire stereo unbalanced sources with RCA output con-
nectors to stereo RCA Line inputs of GO-SOUND Air units.
Use mono jacks to connect the wired microphones to the speaker..

4. REAR PANEL FUNCTIONS

GO-SOUND Air Series active loudspeakers have several connectors, controls, and indi-
cators the use of which you should understand.
8
Body
Ground / Shield
Unbalanced use of 1/4" jack TS connector
Strain relief
clamp
Ground shield
Sleeve
Tip
GO-SOUND 12-15Air User manual
Center
Signal
Tip
Sleeve
Signal
