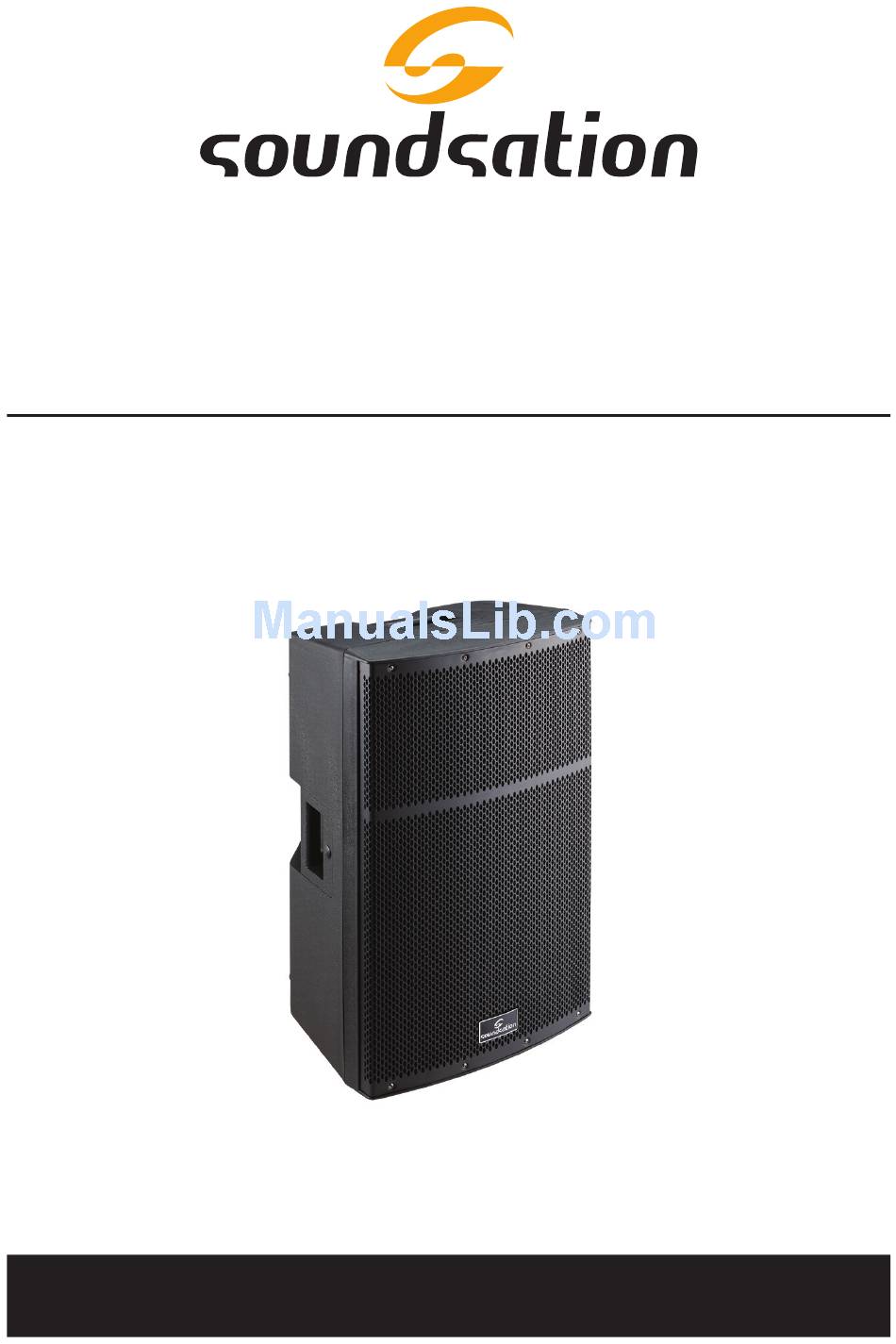

Page 1: User Manual

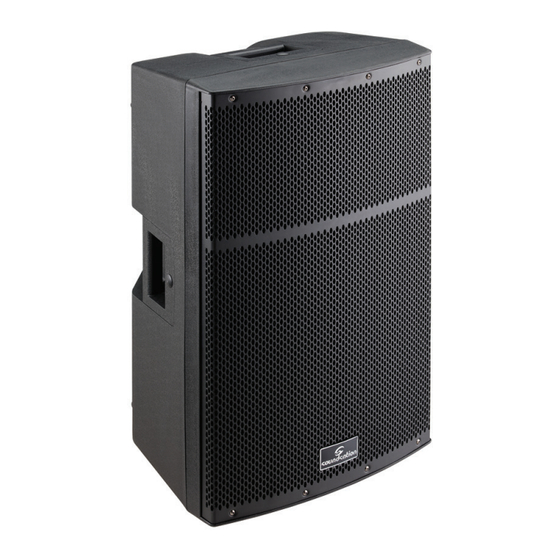

Hyper-Pro top series 1200W bi-amp active speakers With Digital sound processing USER MANUAL Please read this manual carefully and proper take care of this manual. - Page 2 Dear customer, First of all thanks far purchasing a SOUNDSATION product. Our mission is to satisfy ® all possible needs of musical instrument, professional audio and lighting users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are look- ing for a feedback from you about the operation of the product and possible improve- www.soundsationmusic.com...
-
Page 3: Table Of Contents
ENGLISH TABLE OF CONTENTS 1. UNBOXING ......................5 2. ACCESSORIES ......................6 3. OVERVIEW.......................6 4. REAR PANEL DESCRIPTION .................7 5. DSP SOFTWARE DESCRIPTION................9 5.1. Main Screen ..........................9 5.2. DSP functions navigation ......................9 6. AUDIO CONNECTIONS ..................13 7. FIXED INSTALLATION ..................14 8. HOOKUP DIAGRAMS ....................15 8.1. - Page 4 ENGLISH Hyper-PRO top series User manual IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating conditions, which may be sufficient to constitute the risk of electric shock or death.
-
Page 5: Unboxing
UNBOXING Thank you for purchasing HYPER-PRO TOP Series active loudspeakers. Each unit has been well tested and shipped in perfect operating conditions. Carefully unpack the car- ton and check the contents to ensure that all parts are present and in good conditions:... -
Page 6: Accessories
2. ACCESSORIES SOUNDSATION can supply a wide range of quality accessories that you can use with HYPER-PRO TOP speaker, like mixers, Cables, Microphones, stands, etc. All products in our catalogue has been long tested with this device so we recommend to use Genuine SOUNDSATION Accessories and Spare Parts. -
Page 7: Rear Panel Description
ENGLISH Hyper-PRO top series User manual 4. REAR PANEL DESCRIPTION HYPER-PRO TOP Series active loudspeakers have several connectors, controls, and indicators the use of which you should understand. 1) POWER Switch Switch up to turn the speaker on, and switch down to turn it off. Make sure the level control is down before you turn it on. - Page 8 ENGLISH Hyper-PRO top series User manual Note: If you happen to lose the AC line-cord, always use a three-pin plug with a ground pin. The wire correspondence is as follow: Cable International Brown Live Blue Neutral Yellow/Green Earth Always connect the earth! Pay attention to your safety! Before taking into operation for the first time, the installation has to be approved by an expert.
-
Page 9: Dsp Software Description
ENGLISH Hyper-PRO top series User manual 8) LEVEL 1 and 2 This controls the overall signal level at the Mic-Line inputs 1 and 2. Keep in mind that central position corresponds to a 0dB gain. In case of a balanced or unbalanced line signals, it is advisable to stay in the range between -∞... - Page 10 ENGLISH Hyper-PRO top series User manual LCD DIM ON, OFF BRIGHT 0 / 10 CONTRAST 0 / 10 RESET RESET INFO FIRMWARE VERSION EXIT MODE Apart from the first “EXIT”, first function on first page is MODE. It allows the user to browse four different frequency responses: MUSIC, LIVE, SPEECH, DJ.
- Page 11 ENGLISH Hyper-PRO top series User manual To change them, push DSP knob (the display highlights current value) and turn clock- wise/anticlockwise to increase/decrease the value. Then press DSP knob again to confirm. The display will highlight function name again. To exit editing process, you can rotate the DSP knob to EXIT (page 1 or 5) and press the knob again, or you can move to another parameter to be changed.
- Page 12 ENGLISH Hyper-PRO top series User manual To exit editing process, you can rotate the DSP knob to EXIT (page 1 or 5) and press the knob again, or you can move to another parameter to be changed. LCD DIM It adjusts LCD back-light intensity from OFF (0) to 10.
-
Page 13: Audio Connections
ENGLISH Hyper-PRO top series User manual It restores factory DSP values. To do this, push DSP knob. Once done, the display will highlight RESET again. To exit editing process, you can rotate the DSP knob to EXIT (page 1 or 5) and press the knob again, or you can move to another parameter to be changed. -
Page 14: Fixed Installation
ENGLISH Hyper-PRO top series User manual Balanced use of 1/4” jack TRS connector Headphones connection with 1/4” TRS connector Strain relief clamp Sleeve Ground shield Hot (+ Ve) Sleeve Ring Ring Cold (- Ve) 7. FIXED INSTALLATION The installation of HYPER-PRO TOP speakers has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming demolition. -
Page 15: Hookup Diagrams
ENGLISH Hyper-PRO top series User manual 8. HOOKUP DIAGRAMS 8.1. Examples of Input connections MP3 player, usign a stereo mini-jack unbalanced LINE input Keyboard usign a 1/4” jack unbalanced LINE input Dinamic microphone, usign an XLR balanced MIC input 8.2. Stereo operation with a mixer... -
Page 16: Bi-Amping With Hyper Bass Active Subs
ENGLISH Hyper-PRO top series User manual 8.3. Bi-Amping with HYPER BASS active subs HYPER-PRO TOP HYPER-PRO TOP Speaker Speaker Line balanced Line balanced input input Left & Right full-range outputs SOUNDSATION SOUNDSATION Left Output Right Output SUB ST100-M20 SUB ST100-M20... -
Page 17: Specifications
ENGLISH Hyper-PRO top series User manual 9. SPECIFICATIONS HYPER-PRO TOP 12A HYPER-PRO TOP 15A Speaker Type Bi-Amped Active Speaker Bi-Amped Active Speaker Acoustical data Frequency Response 52Hz - 20kHz / -10dB 45Hz - 20kHz / -10dB Max SPL 124 dB 130 dB 1.35”... -
Page 18: Warranty And Service
Alternatively you can send the product to SOUNDSATION SERVICE CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati - Italy . In order to send a product to service center you need an RMA num- ber. -
Page 19: Warning
WEEE scheme or your household waste disposal service. This product is imported in EU by FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy... - Page 20 www.soundsa tionmusic.com Ver 1.0 - Jan 2017...
